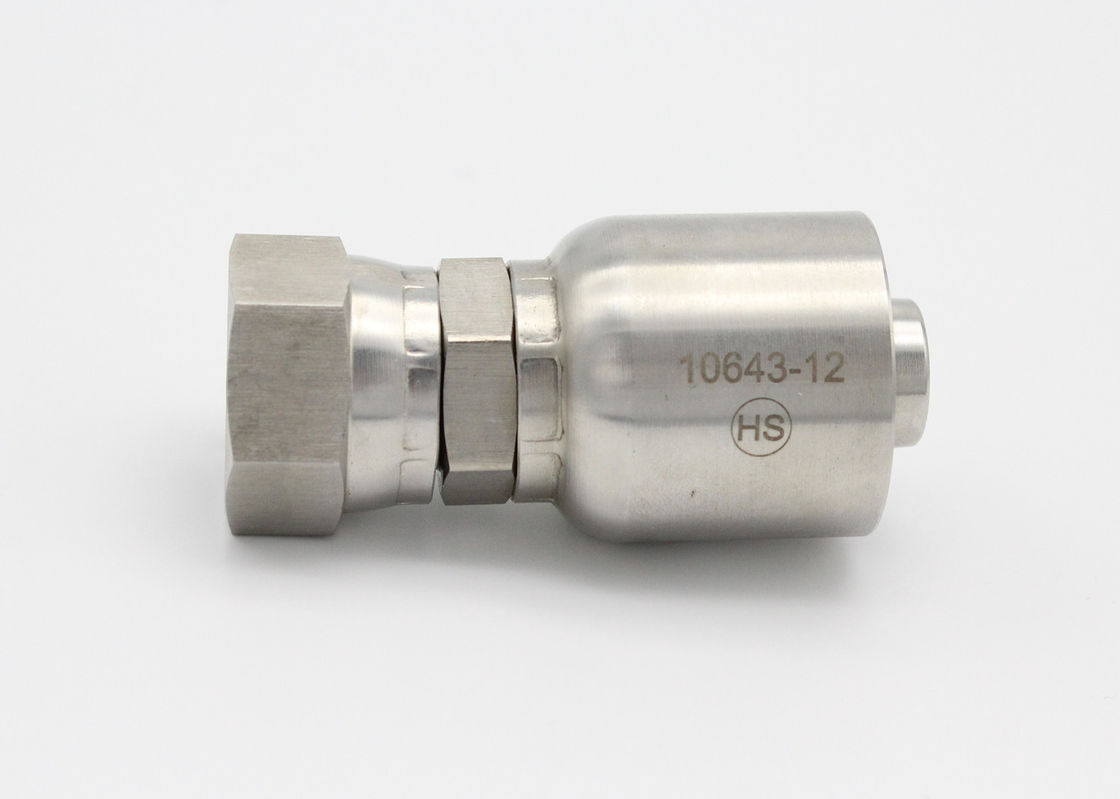

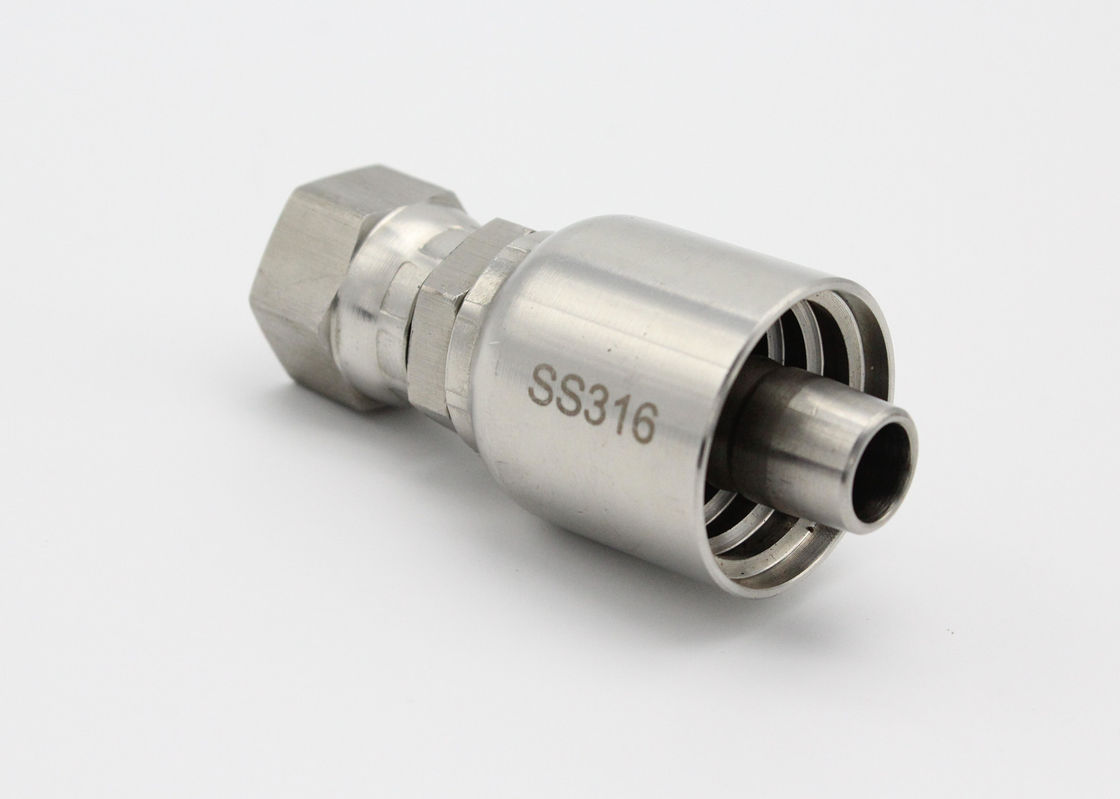

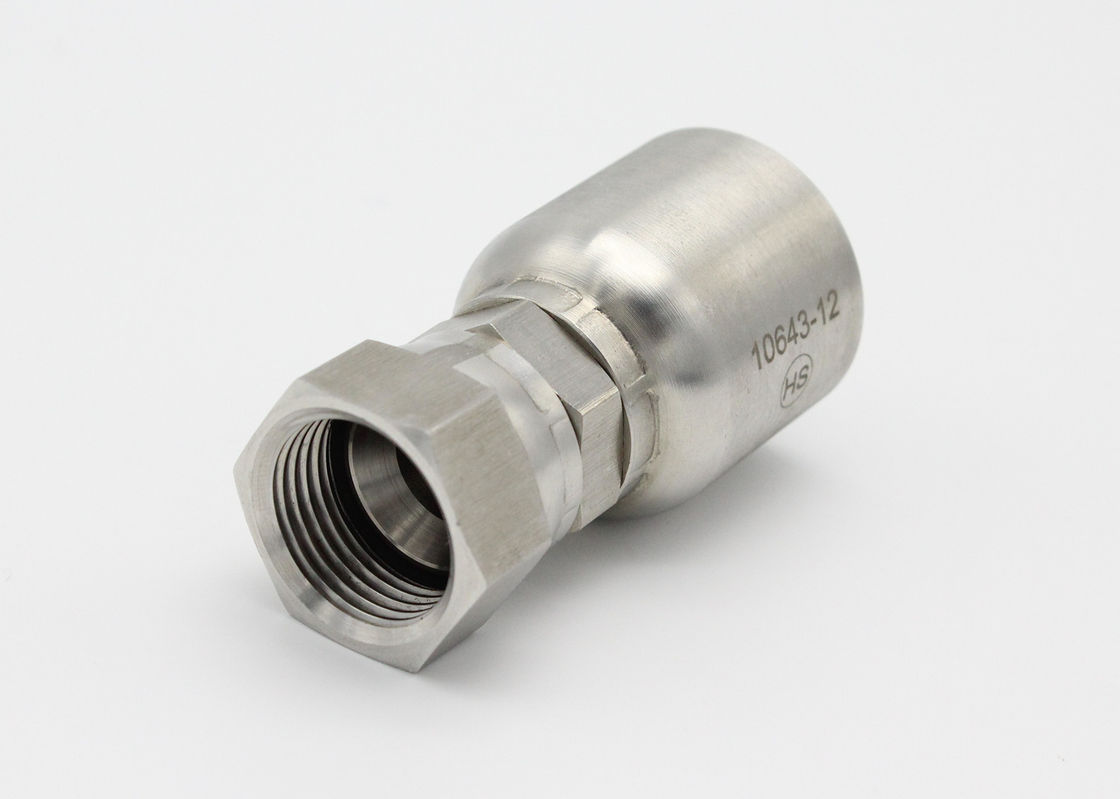

JIC Female 74 Degree High Pressure Hydraulic Hose Fittings 316 Stainless Steel

JIC Female 74 Degree High Pressure Hydraulic Hose Fittings 316 Stainless Steel

  • High Light

    hydraulic hose end fittings

    ,

    hydraulic hose pipe fittings

  • Part Number
    JIC
  • Size Of Hose
    1/4” To 2”
  • Appearance
    Zinc Plated
  • Color
    Silver
  • Material
    SS316
  • Standard
    PARKER
  • Technic
    Hot Forging
  • Machine
    CNC
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    JIC Female
  • Minimum Order Quantity
    500pcs
  • Price
    Negotiated
  • Packaging Details
    Cartons and wooden cases
  • Delivery Time
    Within 20 to 30 days after we receive advance payment
  • Payment Terms
    T/T, L/C, Western Union, Paypal, MoneyGram
  • Supply Ability
    60,000 pcs per month

JIC Female 74 Degree High Pressure Hydraulic Hose Fittings 316 Stainless Steel



JIC Female 74 Degree High Pressure Hydraulic Hose Fittings in 316 Stainless Steel Material




Descrioption:



One piece high pressure hydraulic fitting JIC female 74 degree cone seal, Parker Style.





Standard: Yonghua

Technology: Hot forging

Material: carbon steel 45# or Stainless steel 304/316



Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
It passes a 96 h salt spray test in accordance with ASTM B 117.





Applications:

High pressure fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.





Specifications:



JIC FEMALE 74 DEGREE CONE SEAT



JIC Female 74 Degree High Pressure Hydraulic Hose Fittings 316 Stainless Steel 0



Part No. THREAD E HOSE BORE DIMENSIONS
BRAIDED SPRIRAL DN DASH A C S1
26711Y-04-04Z / 7/16"X20 6 04 15 9 15
26711Y-05-04Z / 1/2"X20 6 04 15.5 9.5 17
26711Y-05-05Z / 1/2"X20 8 05 15.5 9.5 17
26711Y-05-06Z 26712Y-05-06Z 1/2"X20 10 06 15.5 9.5 17
26711Y-06-04Z / 9/16"X18 6 04 15.5 10.5 19
26711Y-06-05Z / 9/16"X18 8 05 15.5 10.5 19
26711Y-06-06Z 26712Y-06-06Z 9/16"X18 10 06 15.5 10.5 19
26711Y-06-08Z 26712Y-06-08Z 9/16"X18 12 08 16 10.5 19
26711Y-08-06Z 26712Y-08-06Z 3/4"X16 10 06 17.5 11 24
26711Y-08-08Z 26712Y-08-08Z 3/4"X16 12 08 18.5 11 24
26711Y-08-10Z 26712Y-08-10Z 3/4"X16 16 10 19 11 24
26711Y-10-08Z 26712Y-10-08Z 7/8"X14 10 06 19 13 27
26711Y-10-10Z 26712Y-10-10Z 7/8"X14 12 08 19.5 13 27
26711Y-10-12Z 26712Y-10-12Z 7/8"X14 20 12 20 13 27
26711Y-12-08TZ 26712Y-12-08TZ 1.1/16"X12 12 08 19.5 15 32
26711Y-12-10Z 26712Y-12-10Z 1.1/16"X12 16 10 21 15 32
26711Y-12-12Z 26712Y-12-12Z 1.1/16"X12 20 12 21.5 15 32
26711Y-12-16Z 26712Y-12-16Z 1.1/16"X12 25 16 23 15 32
26711Y-14-12Z 26712Y-14-12Z 1.3/16"X12 20 12 21.5 15 36
26711Y-16-12TZ 26712Y-16-12TZ 1.5/16"X12 20 12 18.5 16 41
26711Y-16-16Z 26712Y-16-16Z 1.5/16"X12 25 16 23 16 41
26711Y-16-20Z 26712Y-16-20Z 1.5/16"X12 32 20 24/26.1 16 41
26711Y-20-16TZ 26712Y-20-16TZ 1.5/8"X12 25 16 23 17 50
26711Y-20-20WZ 26712Y-20-20WZ 1.5/8"X12 32 20 25/27.1 17 50
26711Y-24-20TZ 26712Y-24-20TZ 1.7/8"X12 32 20 26.5/28.6 20 55
26711Y-24-24WZ 26712Y-24-24WZ 1.7/8"X12 40 24 26.5/29.5 20 55
26711Y-32-24TZ 26712Y-32-24TZ 2.1/2"X12 40 24 27/30 23.5 75
26711Y-32-32TZ 26712Y-32-32TZ 2.1/2"X12 50 32 27/30.4 23.5 75






Note:
1. The dimension before "/" for A issuitable for braided hose, and the dimension after "/" for A  is suitable for spiral hose.

2. The plating for one piece hose fitting is zinc with Cr +3.

3. The compatible hose for braided nipple: FC686, FC687, GH663, GH793, GH781 and for spiral hose nipple: 2755, GH506.

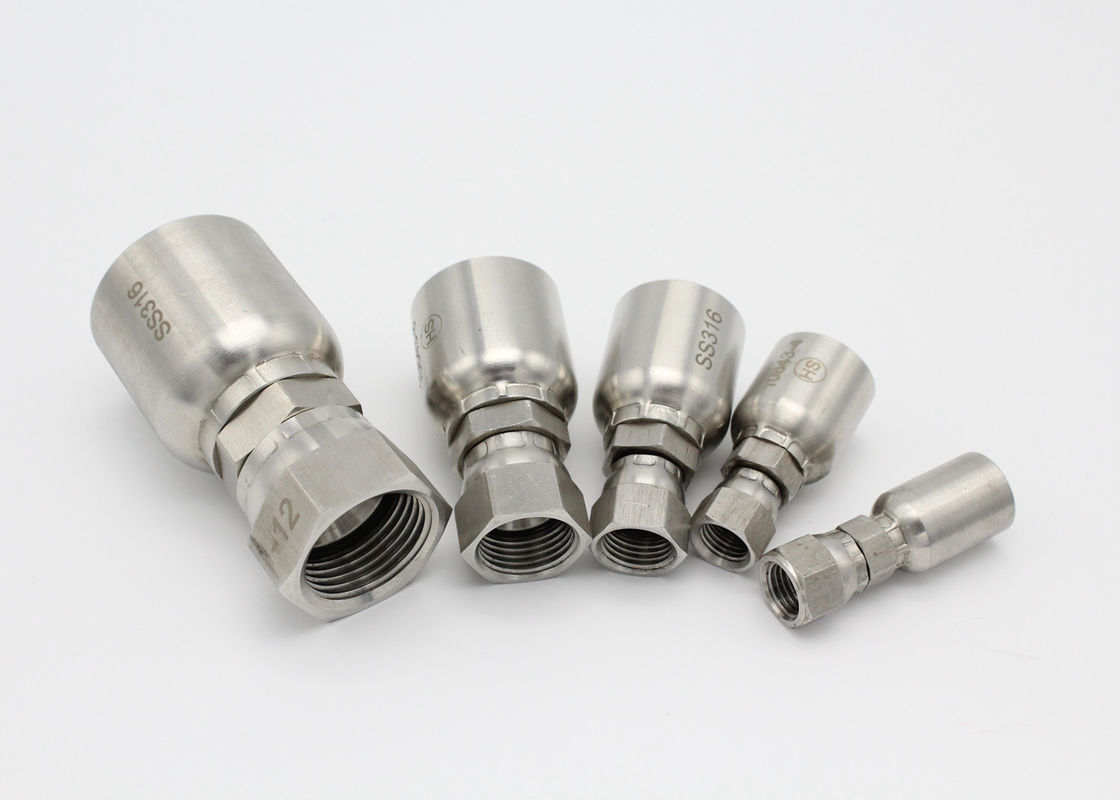

JIC Female 74 Degree High Pressure Hydraulic Hose Fittings 316 Stainless Steel 1



Packgaing and Shipping:



Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Non-fumigation Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.
