High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock

High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock

  • High Light

    hydraulic hose end fittings

    ,

    hydraulic hose pipe fittings

  • Part Number
    87913
  • Size Of Hose
    3/4" ~ 1.1/2"
  • Appearance
    Zinc Plated
  • Color
    Silver Or Golden
  • Material
    Carbon Steel 45#
  • Standard
    Yonghua
  • Technic
    Hot Forging
  • Machine
    CNC
  • Plating
    Trivalent Chromium
  • Place of Origin
    Zhejiang China
  • Brand Name
    PAISHUN
  • Certification
    ISO 9001-2008, CE
  • Model Number
    87913
  • Minimum Order Quantity
    500pcs
  • Price
    Negotiated
  • Packaging Details
    Packed in cartons and wooden cases
  • Delivery Time
    Within 20 to 30 days after we receive advance payment
  • Payment Terms
    T/T, L/C, Western Union, Paypal, MoneyGram
  • Supply Ability
    60,000 pcs per month

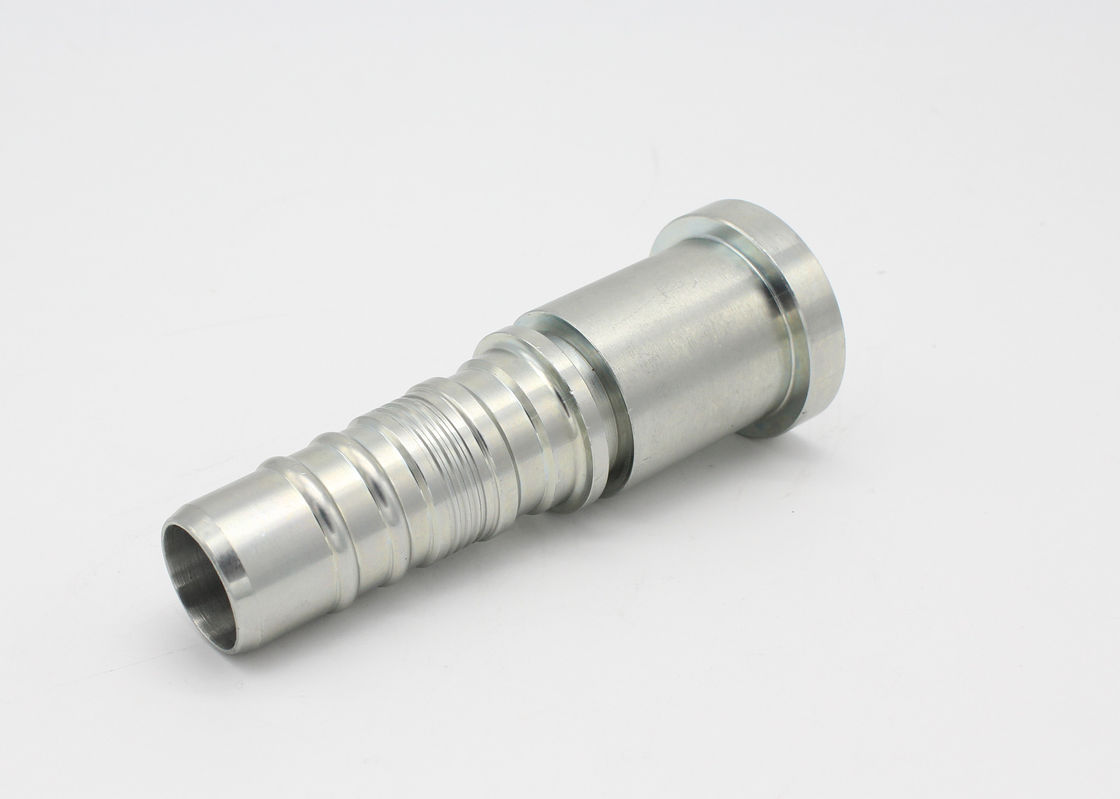

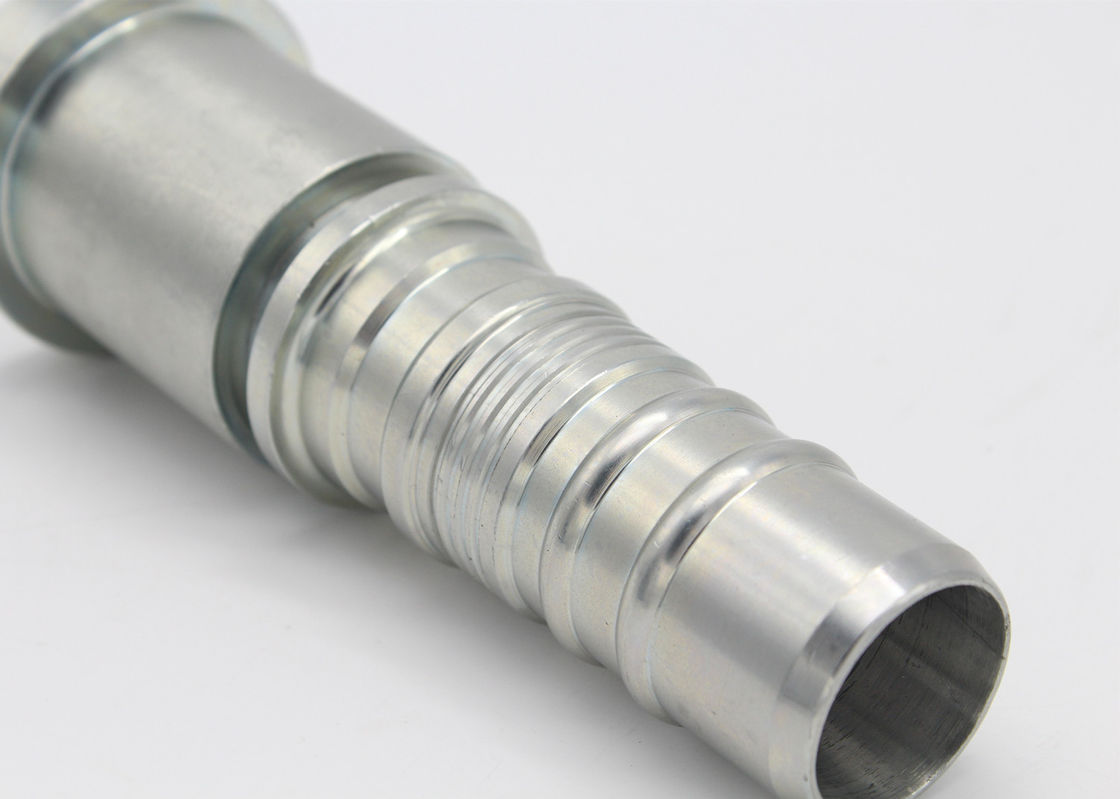

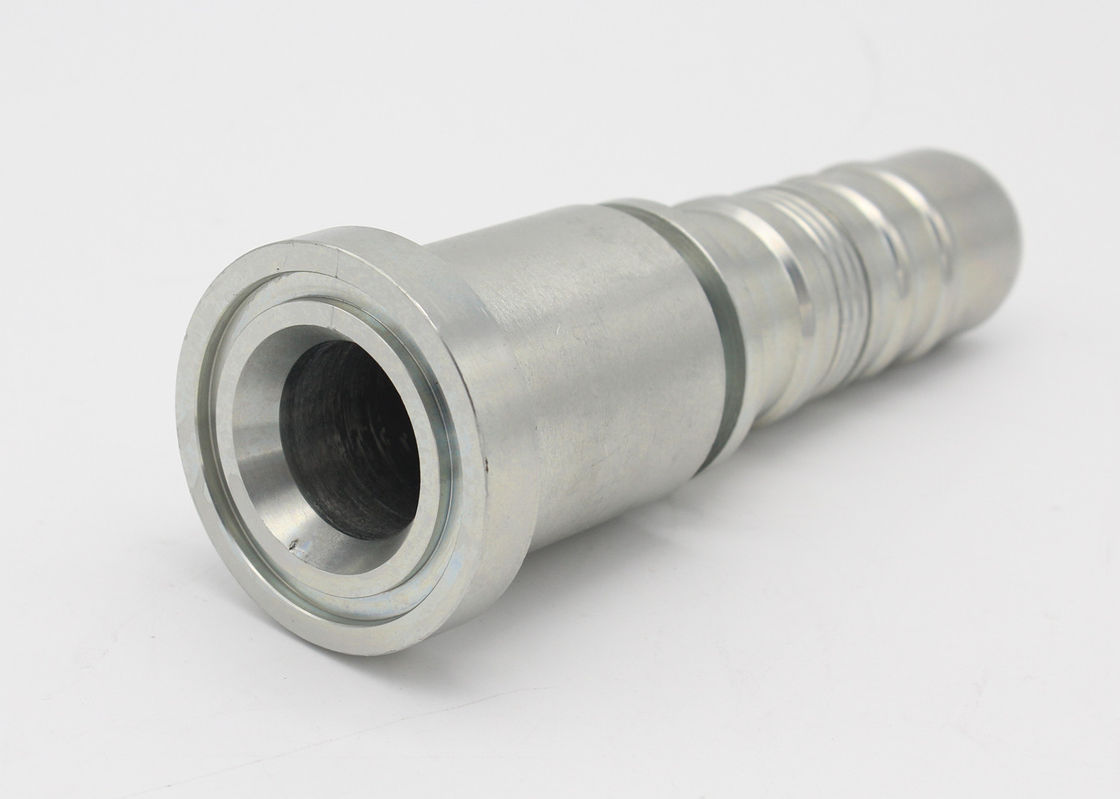

High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock



Straight SUPERCAT Flange 9000 PSI , Interlock Hose Fitting , Very high pressure Hose Fitting​





Descrioption:



Supercat Flange, 9000 PSI





Standard: Yonghua

Technology: Hot forging

Material: carbon steel 45# or Stainless steel 304/316



Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
It passes a 96 h salt spray test in accordance with ASTM B 117.



Packaging: cartons and non-fumigation wooden box.





Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.




Specifications:



SAE FLANGE 9000 PSI





High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock 0

                  87913



Part No. Thread E Hose Bore Dimensions
DN DASH A C D L
87913-12-12 3/4" 20 12 58.5 41.3 32 14.3
87913-16-12 1" 20 12 63 47.6 38 14.3
87913-16-16 1" 25 16 64.4 47.6 38 14.3
87913-20-16 1.1/4" 25 16 6.8 54 43 14.3
87913-20-20 1.1/4" 32 20 73.8 54 43 14.3
87913-24-20 1.1/2" 32 20 80.6 63.5 51 14.3
87913-24-24 1.1/2" 40 24 80.7 63.5 51 14.3







It is high pressure hose Flange



High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock 1



Packageing: Well packed by cartons and free fumigating wooden box.

Strong Packaging of Hydraulic Hose Fitting from PAISHUN

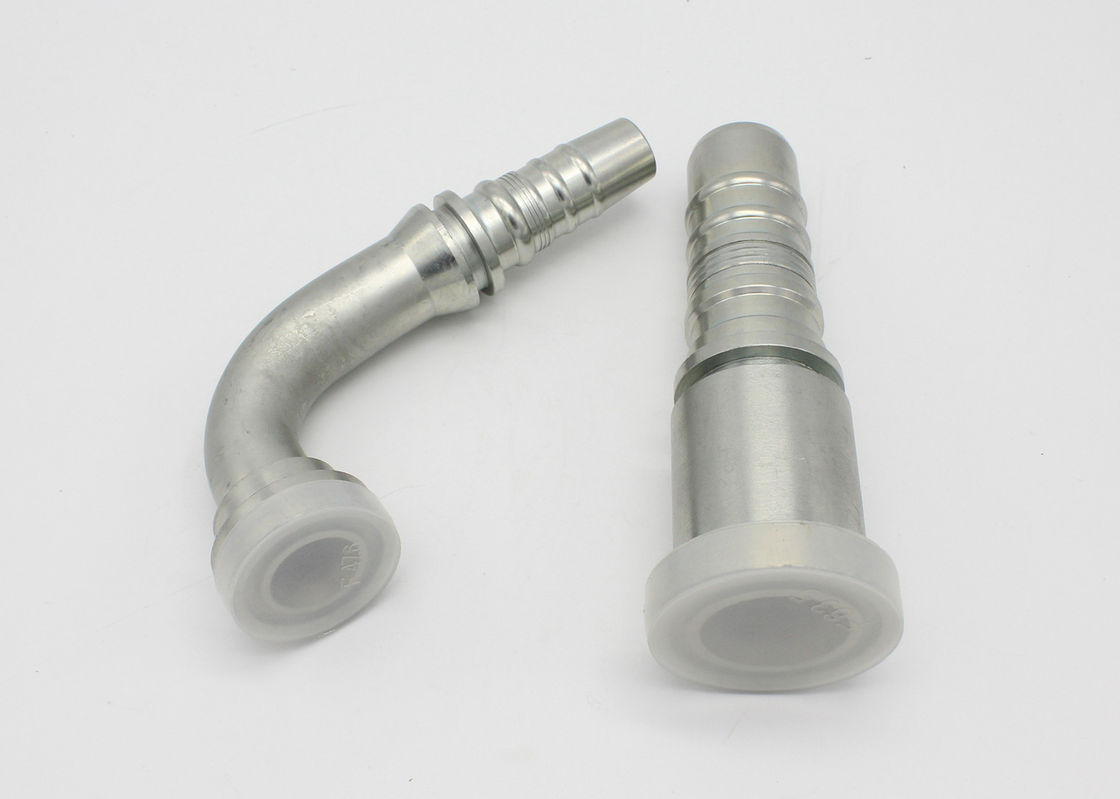

All fittings are with PVC plastic caps and plugs to protect against Dust.



High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock 2

All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.

In order to guarantee that even in worst sea / maritime weather/transport conditions,

the fittings shall arrive at the final destination in perfect condition without corrosion caused by sea salt and humidity.



High Pressure Hydraulic Hose Fitting Straight SUPERCAT Flange 9000 PSI Interlock 3

Normal Measure:
Carton:24cm X 24cm X 16cm
Wooden box: 110cm X 85cm X 75cm

Usually 42 cartons can be packed in a wooden box.

Surely we can be customized the measure according to your request.
