Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
03310
Silver / Golden Hydraulic Hose Fitting , Hydraulic Pipe Fittings Galvanized Zinc Appearance
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Description:

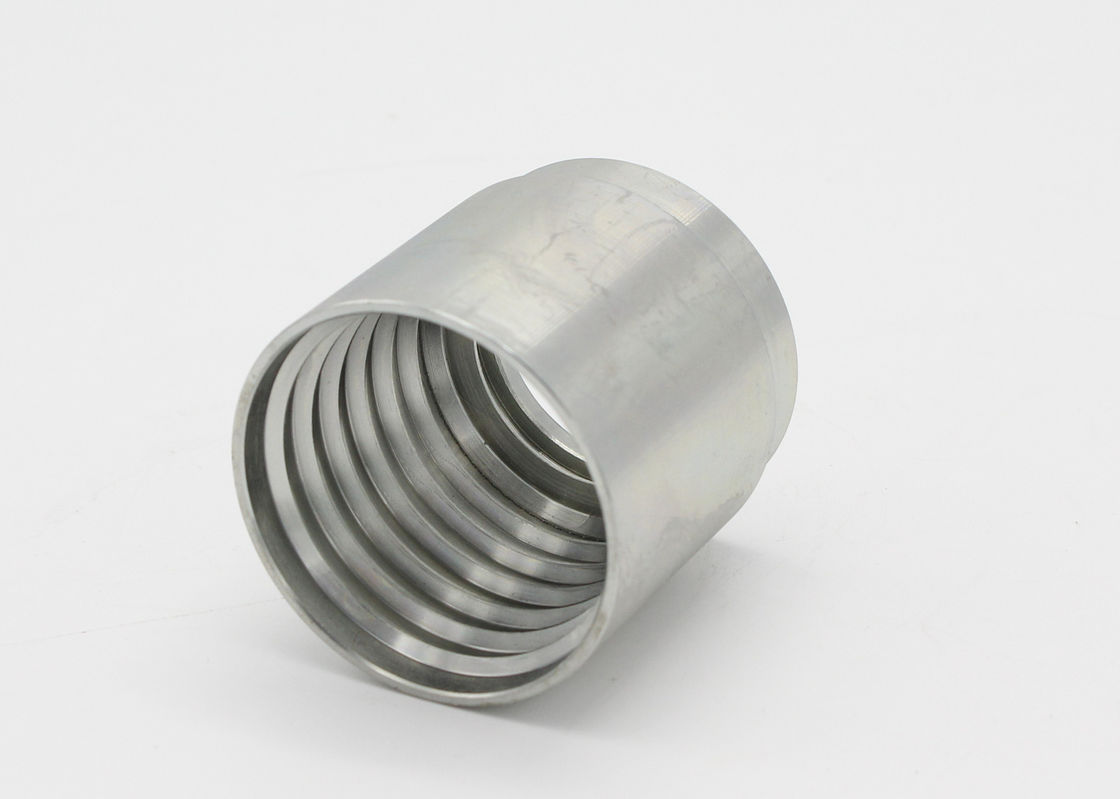

It is hydraulic hose ferrule for hydraulic hose SAE 100 R2 AT / EN 853 2SN. Usually it can fit for hose with size from 3/16" to 2".
Specifications:
03310
| Hose Bore | DIMENSIONS | ||||||||||
| Part Nnumber | DN | DASH | L | ||||||||
| 03310-03 | 5 | 03 | 23 | ||||||||
| 03310-04 | 6 | 04 | 30.5 | ||||||||
| 03310-05 | 8 | 05 | 30 | ||||||||
| 03310-06 | 10 | 06 | 32 | ||||||||
| 03310-08 | 12 | 08 | 34 | ||||||||
| 03310-10 | 16 | 10 | 37 | ||||||||
| 03310-12 | 20 | 12 | 42 | ||||||||
| 03310-16 | 25 | 16 | 51 | ||||||||
| 03310-20 | 32 | 20 | 59 | ||||||||
| 03310-24 | 40 | 24 | 74 | ||||||||
| 03310-32 | 50 | 32 | 78 | ||||||||

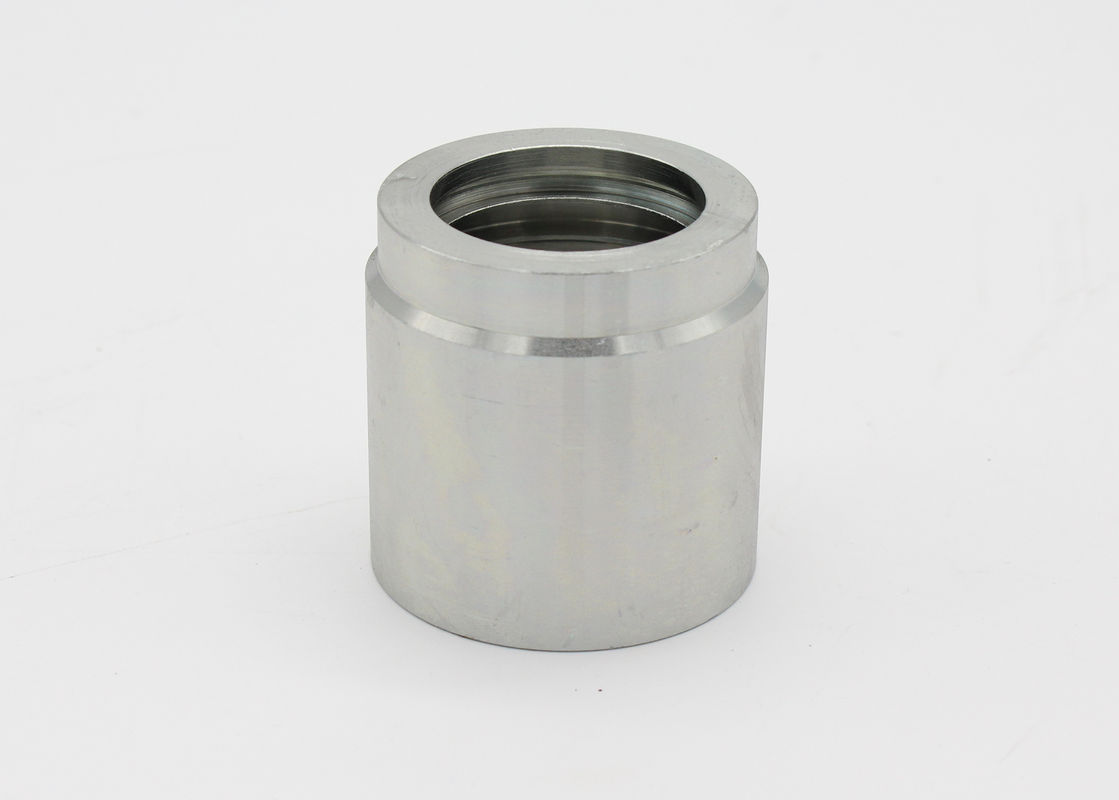

Hydraulic Hose Ferrule 03300 in siliver color.
Other Hydraulic Hose Ferrule Fitting Products:
Production Flow:
Material of ferrule: carton steel 20#
Material of fitting: carton steel 45#
All of our machines are CNC machines
Packgaing and Shipping:
Carton: 5 layers corrugated carton 24cm X 24cm X 16cm
Wooden Case: 110cm X 80cm X 75cm
Usually 42 corragetd cartons are packed in a wooden case.
Competitive Advantage:
-Our factory owns a group of high quality and high-tech professional designers and personnel group. It
possesses a series of the fully automatic computer CNC machine tools and high precision lathes, the
multiple spindles too machines, hexangular tool machines and electric heated bent pipe machines. We
have strictly adopted the professional personnel to carry on the tests and examinations for our products
in order to provide an assurance in the high-quality for all the customers.
-Our factory success fully obtained the international quality certification system: ISO9001:2000 and
domestic production permit of hydraulic hose fittings.
-Our hydraulic hose fittings have been exported to many countries and areas in Europe, America, the
Middle East, the Southeast Asia and the South America.
-The material of our hydraulic hose fittings is good quality carton steel.
-Our warehouse is on the second floor, it is better to keep dry of stock of fittings.
-Our hydraulic hose fittings are well packed in cartons and wooden boxes. It is better to avoid fitting
damping.
-The logo of branding can be printed on the fittings.
-The fittings can be customized by samples or drawings. 3D drawing is ok.
-We have crimping machines to crimp hydraulic hose assembly.
-We use new techenic to galvanize ferrule, it appears to be stainless steel one
