Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: ID 1/4" to 1-1/2"
Payment & Shipping Terms
Minimum Order Quantity: 500m
Price: Negotiated

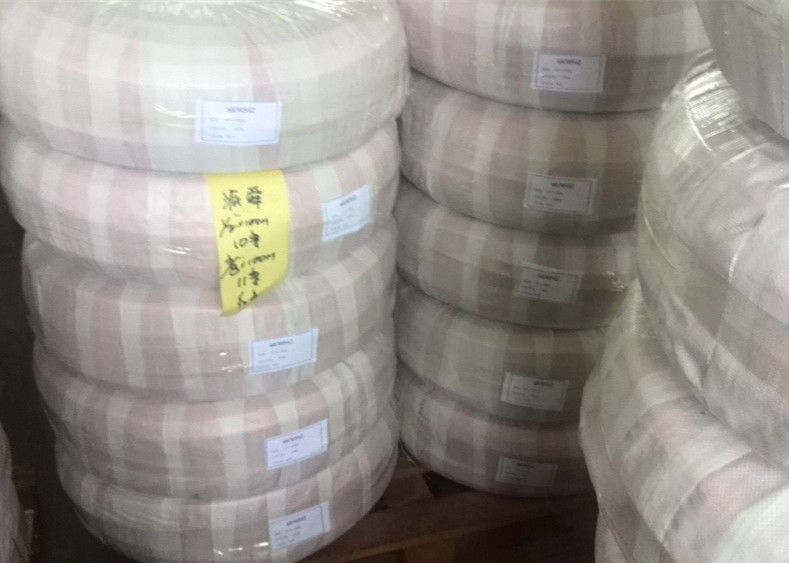

Packaging Details: Well packed by poly stripe.
Delivery Time: 20-30 days
Payment Terms: T/T, L/C, Western Union, MoneyGram, PayPal
Supply Ability: 100,000 meters per month
Color: |
Red, Blue, Black, Orange, Green, Etc |
Work Pressure: |
6 Bar |
Burst Pressure: |
20 Bar |
Material: |
EPDM |
Size: |
Standard Size Or Customized |
Color: |
Red, Blue, Black, Orange, Green, Etc |
Work Pressure: |
6 Bar |
Burst Pressure: |
20 Bar |
Material: |
EPDM |
Size: |
Standard Size Or Customized |

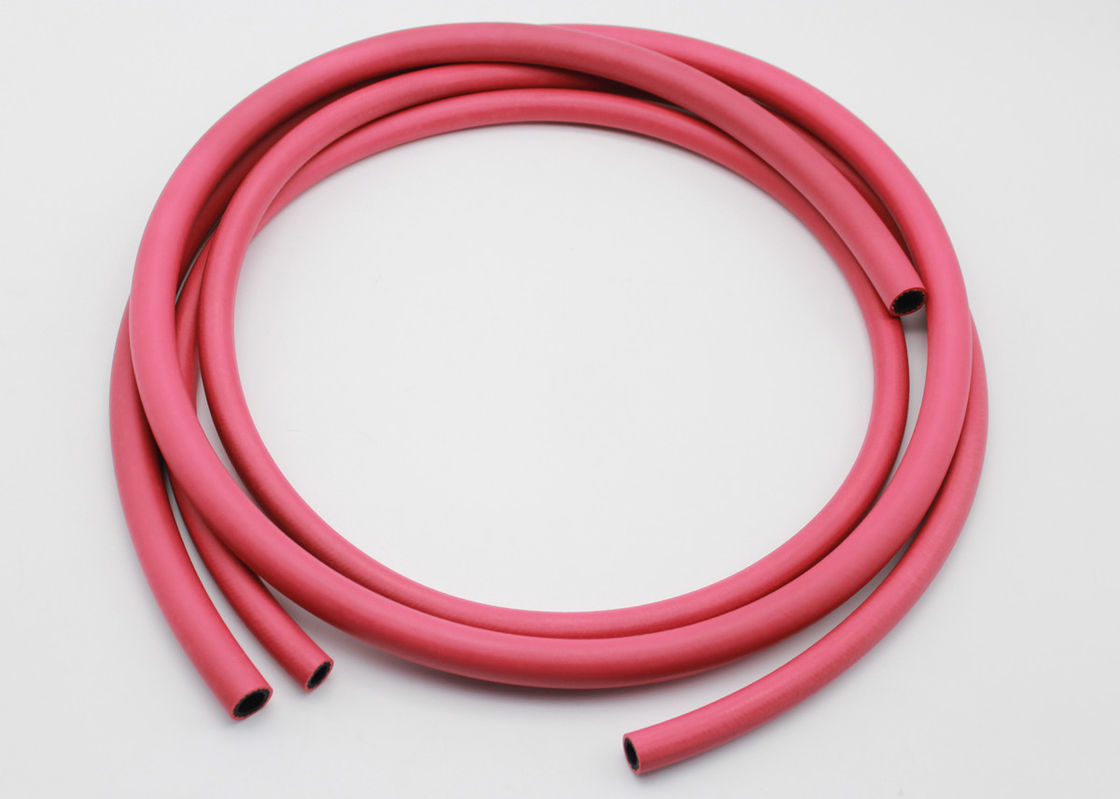

EPDM Fiber Braided Multipurpose Rubber Water Hose For High Temperature Steam
Construction: Tube: EPDM rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM&NR synthetic rubber.
Temperature: -50℃ - +150℃
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction,
engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Specification:
|
Braided |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Volume |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
1B |
1/4" |
6 |
12 |
6 |
180 |
20 |
540 |
100 |
0.025 |
0.14 |
|
1B |
5/16" |
8 |
14 |
6 |
180 |
20 |
540 |
100 |
0.03 |
0.20 |
|
1B |
3/8" |
10 |
15 |
6 |
180 |
20 |
540 |
100 |
0.04 |
0.21 |
|
1B |
1/2" |
13 |
20 |
6 |
180 |
20 |
540 |
100 |
0.07 |
0.32 |
|
1B |
5/8" |
16 |
24 |
6 |
180 |
20 |
540 |
50 |
0.05 |
0.44 |
|
1B |
3/4" |
19 |
27 |
6 |
180 |
20 |
540 |
50 |
0.06 |
0.50 |
|
1B |
1" |
25 |
35 |
6 |
180 |
20 |
540 |
50 |
0.09 |
0.79 |
|
2B |
1-1/4" |
32 |
45 |
6 |
180 |
20 |
540 |
50 |
0.16 |
1.38 |
|
2B |
1-1/2" |
38 |
52 |
6 |
180 |
20 |
540 |
50 |
0.20 |
1.70 |
Advantage:
PASSION EPDM heat resistant water hose is exported to Europe now, prodcution skill is advanced and with top high quality. Free sample can be offered to test.
