Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: ID 5mm
Payment & Shipping Terms
Minimum Order Quantity: 3000m
Price: $0.7 ~ $2.0 USD/m
Packaging Details: Refrigerant charging hose is well packed by transparent OPP films.
Delivery Time: 30 days for a 20' FCL after we have received the advanced payment.
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 400,000 per month
Inner Tube: |
High Nitrile-butadience Rubber (NBR) |
Reinforcement: |
Polyester Fiber Spiral Line |
Cover: |
NBR&PVC Blends. |
Temperature: |
-30℃ - +100℃ |
Color: |
Red, Yellow, Blue |
Standard Length: |
100m Per Roll |
Inside Diameter: |
ID 5mm |
Outer Diameter Size: |
11mm Or 12mm |
Working Pressure: |
500psi, 600psi, 800psi |
Burst Pressure: |
2500psi, 3000psi, 4000psi |
Inner Tube: |
High Nitrile-butadience Rubber (NBR) |
Reinforcement: |
Polyester Fiber Spiral Line |
Cover: |
NBR&PVC Blends. |
Temperature: |
-30℃ - +100℃ |
Color: |
Red, Yellow, Blue |
Standard Length: |
100m Per Roll |
Inside Diameter: |
ID 5mm |
Outer Diameter Size: |
11mm Or 12mm |
Working Pressure: |
500psi, 600psi, 800psi |
Burst Pressure: |
2500psi, 3000psi, 4000psi |
500PSI Assembly R12 Refrigerant Hose Transfering Smooth Surface
1. The stable for detailed standard parameters:
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
mm |
mm |
psi |
psi |
m |
cbm/roll |
kg/m |
5 |
11 |
500 |
2500 |
100 |
0.02 |
0.13 |
5 |
11 |
600 |
3000 |
100 |
0.02 |
0.13 |
5 |
12 |
800 |
4000 |
100 |
0.02 |
0.16 |
2. Structure:
Inner layer of hose: High nitrile-butadiene rubber (NBR)
Protective layer of hose: NBR&PVC blends
Intermediate reinforced layer of hose: polyester fiber sprial line.
3. Performance:
Anti-ozone aging: in the standard test chamber, concentration: 50+/-pphm; temperature: 40+/-2℃; testing period: 72t; without crack.
Heat-proof aging: in the standard aging chamber, temperature: 70+/-℃; testing period: 72t; tensile change: not more than -25%; tensile stretch: not more than -30%.
Physical properties: tensile stretch of inner and outer rubber layer:>300%; flexiblity of hose is sound under -30+/2℃ for 5t; without craze crack or fracture after 180 bending over or doubling.
Corrosion resistance: the oil resistant grade of inner rubber layer is RMA-B; hexane corrosion resistant; preventing seepage of various refrigerants.
4. Scope of application:
Conveying refrigerant such as R12, R22, R502 and R134a; applied widely to auto refrigeration, air-conditioning, industrial refrigerators etc; both the inner rubber layer and protective layer are of high level oil resistance of grade RMA-A antiseepage.
5. Package:
See the table for available common specifications, pressure, weight, length and volume etc;
Standard dual protective packaging: transparent OPP films intertwined inner layer; braided spiraled outer layer;
In addition, the carton packing and pallet packing are available as the case may be, but shall be changed additionally.

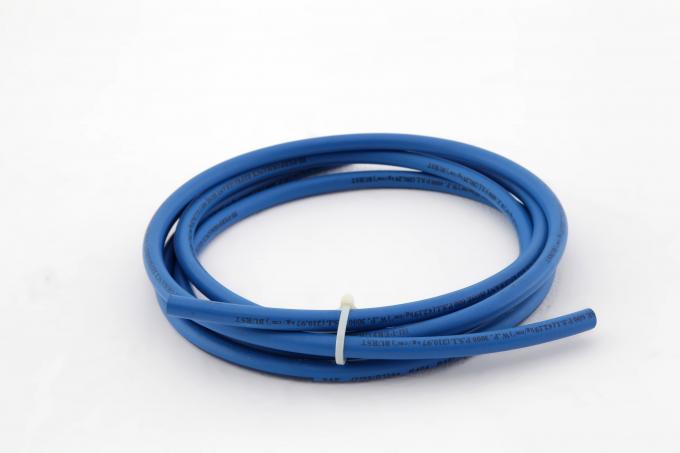

6. Pictures of refrigerant charging hoses
