Name: UHMWPE/EPDM Chemical Hose with 16Bar WP Anti-UV and Abrasion-Resistant for Industrial Chemical Transfer
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: PCSD-19
Price: 0.86 USD
Availability: InStock

Home > Products > Rubber Water Hose >

UHMWPE/EPDM Chemical Hose with 16Bar WP Anti-UV and Abrasion-Resistant for Industrial Chemical Transfer

UHMWPE chemical hose for acids

EPDM industrial chemical hose

abrasion-resistant rubber water hose

Place of Origin:

CHINA

Brand Name:

PASSION

Certification:

Model Number:

PCSD-19

Request A Quote

UHMWPE/EPDM Chemical Hose with 16Bar WP Anti-UV and Abrasion-Resistant for Industrial Chemical Transfer

Product Details

Inner Tube:

EPDM & UHMW

Reinforcement:

Multiple Plies Of High Tensile Textile With Helix

Outer Tube:

Blue Abrasion Resistant Green EPDM

I.D.:

1/4", 5/16", 3/8", 1/2", 3/4", 1"

Working Pressure:

16bar

Min Bend Radius:

48bar

Outer Diameter:

11.5mm-35.5mm

Package:

Packed In Rolls Or Customized Packing

MOQ:

1000 Meters

Lead Time:

Normally 31 Days

Manufacturer:

Paishun

Application:

For Transferring/Handling Bulk Quantities Of Acids, Alkalis, And Industrial Chemicals

Highlight:

UHMWPE chemical hose for acids

EPDM industrial chemical hose

abrasion-resistant rubber water hose

Payment & Shipping Terms

Minimum Order Quantity

500meters

Price

0.86USD/meter

Packaging Details

well packed by high quality braided straps.

Delivery Time

31days

Payment Terms

T/T

Supply Ability

100000meters/month

UHMWPE/EPDM Chemical Suction & Discharge Hose with 16Bar Working Pressure, Resistant to 98% Corrosive Chemicals and Anti-UV Abrasion-Resistant Cover

Get Best Price

3" EPDM Rubber Food Suction Hose – FDA-approved white tube for Beer, Wine, Drinking Water, and condiment transfer

Get Best Price

3" FDA Food Suction and Discharge Hose, White Rubber Milk/Vegetable Oil/Beverage Transfer Hose for Dairy and Brewery Industry

Get Best Price

All-Weather EPDM Rubber Water Hose for Farm Irrigation with Wide Temperature Range -30°C to +100°C and High-Tensile Reinforcement

Get Best Price

86-571-8102-3093

Contact Now

Product Description

UHMWPE/EPDM Chemical Suction & Discharge Hose – A Lightweight, Flexible, and Ultra-Corrosion-Resistant Solution for Aggressive Chemical Transfer

Key Product Advantages

UHMWPE/EPDM Composite Inner Tube – Exceptional resistance to 98% of corrosive chemicals, including sulfuric acid, hydrochloric acid, ammonia, and methanol
Working Pressure: 16 Bar (230 PSI), Burst Pressure: 48 Bar (690 PSI) – Reliable and safe for industrial fluid transfer
Wide Temperature Range & Anti-UV Protection – Suitable for outdoor and harsh industrial environments (-40°C to +80°C)

Why Choose UHMWPE/EPDM Chemical Hoses?

Comparison	UHMWPE/EPDM Chemical Hose	Conventional Rubber Chemical Hose
Chemical Resistance	98% compatibility (including strong acids & alkalis)	60-70% compatibility (limited)
Abrasion Resistance	Excellent (UHMWPE inner layer)	Moderate (wears faster)
Flexibility	Bend radius = 5x OD (easy handling)	Bend radius = 8x OD (stiffer)
Anti-UV / Aging	Superior (EPDM cover with anti-UV additives)	Prone to cracking under sunlight
Weight	Lightweight (≤ 0.90 kg/m for 1" ID)	Heavier

Anti-Static & Safety Design – Built for Hazardous Chemical Environments

Exclusive Conductive Design (Optional) – Eliminates static spark risks during flammable liquid transfer

Conductive Inner Layer → Carbon-black infused UHMWPE discharges static directly, no need for external grounding
Safer than Standard Hoses → Prevents static buildup when transferring flammable chemicals (e.g., methanol, solvents)

Anti-Static Mechanism	UHMWPE Chemical Hose (with conductive layer)	Standard Rubber Chemical Hose
Conductive Path	Carbon-black in inner tube	Relies on steel wire helix (if present)
Reliability	100% effective, no grounding failure risk	Prone to static buildup if wire helix is broken
Maintenance	No grounding check required	Requires periodic conductivity checks

Typical Applications

Chemical Plants – Transfer of acids, alkalis, solvents, and industrial wastewater
Tank Truck & Railcar Loading/Unloading – Flexible and durable for daily bulk transfer
Mining & Smelting – Handles corrosive slurries and chemical reagents
Wastewater Treatment – Resistant to chlorides and aggressive effluents

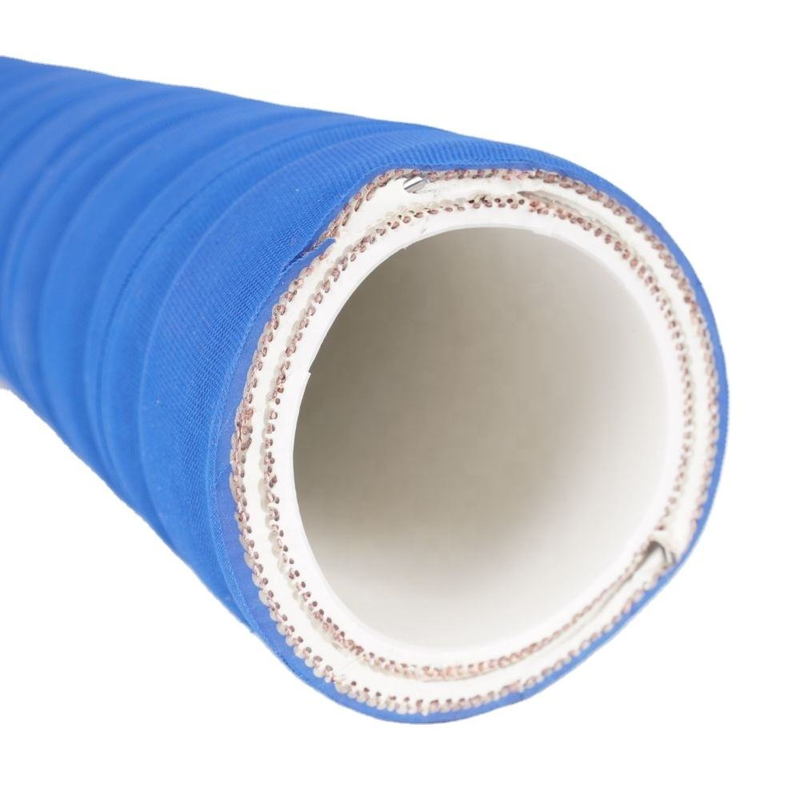

Technical Details – Four-Layer Composite Structure

Layer	Material & Function
① Inner Tube	UHMWPE + EPDM – Ultra-smooth, anti-static (optional), resistant to 98% of chemicals
② Reinforcement	Multiple plies of high-tensile textile + helix wire – Provides strength, kink resistance, and vacuum resistance
③ Bonding Layer	Special adhesive – Ensures strong interlayer adhesion, prevents delamination
④ Outer Cover	Blue EPDM – Abrasion-resistant, anti-UV, ozone-resistant, and weatherproof

User Problem-Solving Solutions

User Challenges	Our Solution
"Our rubber hoses degrade quickly when handling strong acids."	UHMWPE inner tube resists 98% of aggressive chemicals, extending service life 3x longer.
"Hoses are too stiff and hard to route in tight spaces."	Excellent flexibility with bend radius = 5x OD, easy to handle and install.
"Outdoor hoses crack under sunlight and weather."	Anti-UV EPDM cover provides superior aging and weather resistance.
"Static sparks are a safety concern when transferring methanol."	Optional conductive inner layer eliminates static risk without external grounding.

Specifications (Standard Sizes)

Part No.	Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure	Weight	Coil Length
PCSD-19	3/4" (19.1 mm)	1.14" (31.6 mm)	16 Bar	48 Bar	0.73 kg/m	40 m
PCSD-25	1" (25.4 mm)	1.48" (37.6 mm)	16 Bar	48 Bar	0.90 kg/m	40 m
PCSD-32	1-1/4" (31.8 mm)	1.79" (45.4 mm)	16 Bar	48 Bar	1.14 kg/m	40 m
PCSD-38	1-1/2" (38.1 mm)	2.05" (52.0 mm)	16 Bar	48 Bar	1.42 kg/m	40 m
PCSD-50	2" (50.8 mm)	2.57" (65.4 mm)	16 Bar	48 Bar	1.89 kg/m	40 m
PCSD-76	3" (76.2 mm)	3.68" (93.4 mm)	16 Bar	48 Bar	3.29 kg/m	40 m
PCSD-102	4" (101.6 mm)	4.75" (120.6 mm)	16 Bar	48 Bar	4.83 kg/m	40 m

Other sizes (1-3/4", 2-1/4", 2-1/2", 6") and custom lengths available upon request.

Customization Options

Length: Custom lengths from 1m to 50m (standard coil: 40m/130ft)
Fittings: Camlock, flanges, threaded couplings, or quick-connect couplings
Color Coding: Blue (standard), Red, Yellow, or Black (for line identification)
Conductive Option: Anti-static inner layer for flammable chemical transfer

Why Do Global Clients Choose Us?

Exported to 30+ Countries – Trusted in chemical, mining, and industrial markets worldwide
10+ Years of Hose Manufacturing – Over 3 million meters of safe chemical hose deployed
Quality Assurance – Each hose is pressure-tested to 1.5x working pressure before shipment
