Double Color Oxygen Acetylene 1/4'' X 100FT Welding Twin Rubber Hose Assembly

Double Color Oxygen Acetylene 1/4'' X 100FT Welding Twin Rubber Hose Assembly

Place of Origin:

Zhejiang,China

Brand Name:

PASSIONCO HOSE

Certification:

CE, RoSH

Model Number:

PWTA-06100

Contact Us
Request A Quote
Product Details

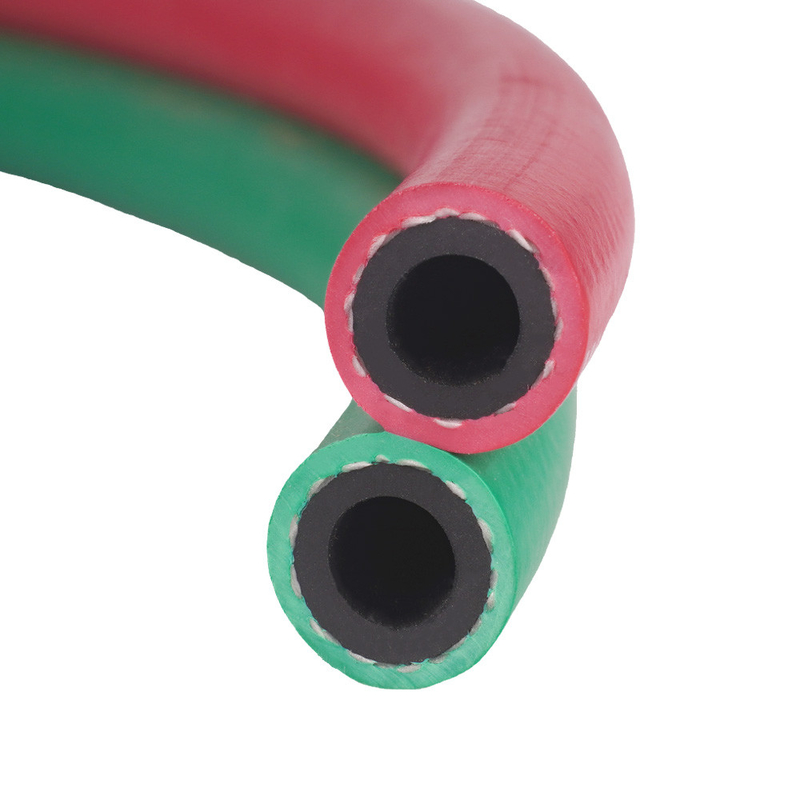

Inner Tube:
NBR Synthetic Rubber
Outer Layer:
EPDM Synthetic Rubber
I.D Size:
6.3mm
O.D Size:
13mm
Length:
100ft (30.5meter)
Quality Level:
Grade T
Fittings:
Movable Brass Fittings
Working Pressure:
2MPa/20bar/300psi
Bursting Pressure:
6MPa/60bar/900psi
Temperature:
-30℃~+100℃
Standard:
En ISO 3821 / Rma IP-7
Payment & Shipping Terms
Minimum Order Quantity
100pieces
Price
USD24.0~28.0 per piece
Packaging Details
Strong woven stripes wrapped
Delivery Time
30 working days
Payment Terms
L/C, T/T
Supply Ability
200000 meters per month
Product Description

Twin Welding Hose Assembly

Product Description:

Twin Welding Hose is a kind of welding hose that is used for conveying Oxygen and Acetylene for welding and cutting equipment. It is designed with twin welding hose construction to make it possible to use for both Oxygen and Acetylene. The twin welding hose has a working pressure of 20 bar and the outer diameter is 13.2mm. The length of the twin welding hose is 50ft and the package is a carton box. The twin welding hose is designed for high performance and is suitable for most welding, cutting, and heating applications. It is lightweight, flexible, and durable, and can be used for both Oxygen and Acetylene in various configurations. Its superior resistance to weathering, ozone, abrasion, and flame makes it ideal for welding twin hoses, OXYGEN AND ACETYLENE HOSE, twin hose, acetylene hose, oxygen hoses, and other applications.

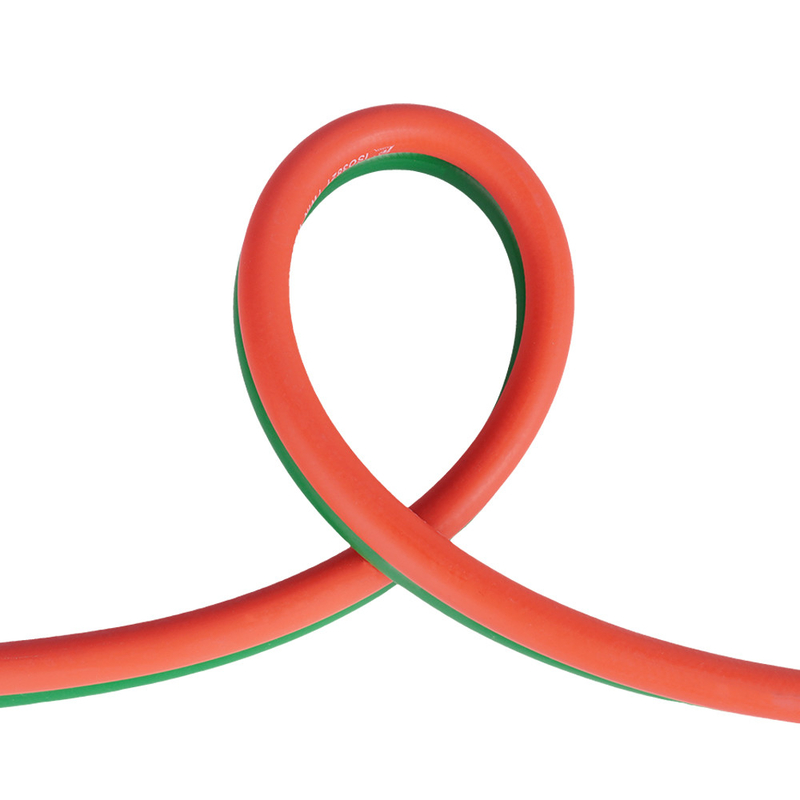

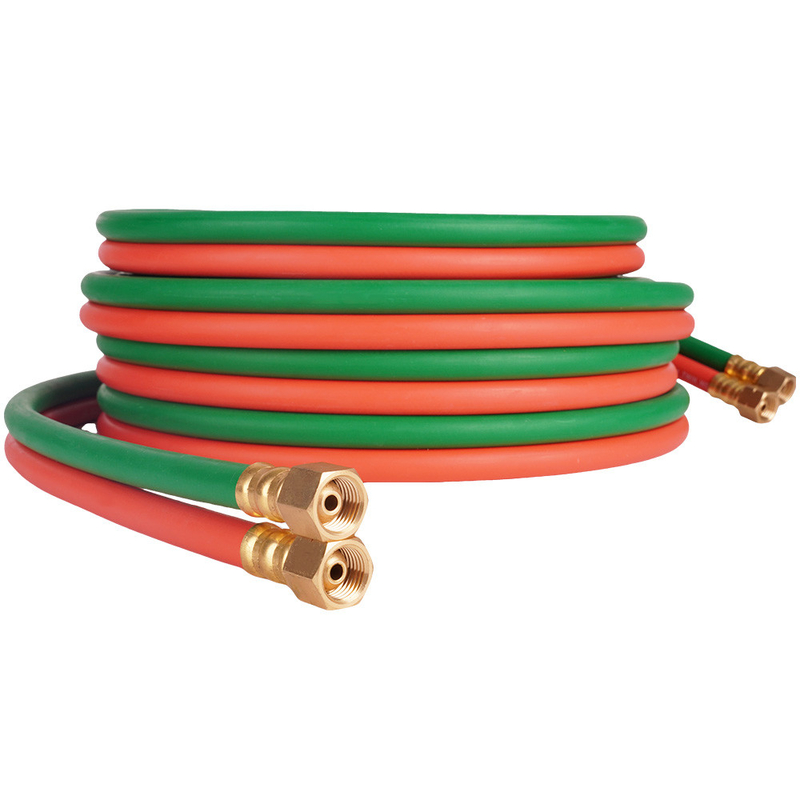

Double Color Oxygen Acetylene 1/4'' X 100FT Welding Twin Rubber Hose Assembly 0Double Color Oxygen Acetylene 1/4'' X 100FT Welding Twin Rubber Hose Assembly 1




  •

Technical Parameters:

Factory 1/4''X50ft Wear Resistant Grade T Oxy/Acet Twin Welding Hose Assembly
Application Shipyards, Industrial, Construction etc.
Option Colors Red / Green, Red / Blue, Blue / Orange (Customized)
Quality Level Grade T
Standard EN ISO3821 / RMA IP-7
Certificate CE / ROHS

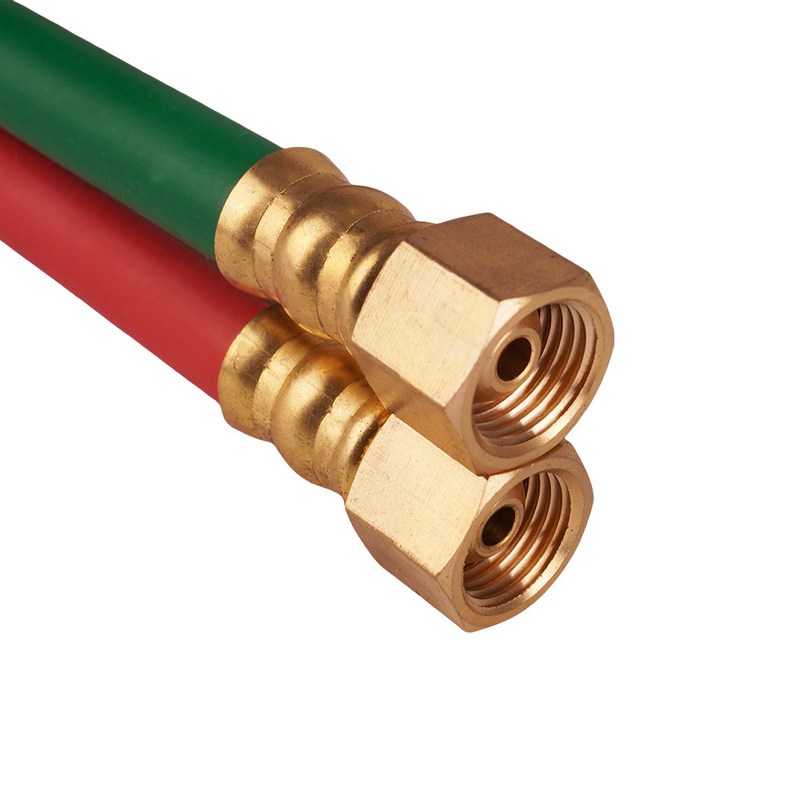

Connectors Brass teeth of the metric system (M16x1.5), applied to Chinese Mainland
Brass teeth of the British system (G3/8-19N), Britain and Hong Kong, etc.
Brass teeth of the American system (G9/16-18N), America, Middle East, and South America, etc.
Australian system (5/8-18N), Australia etc.
Specific Parameters
Part Number I.D O.D Max W.P. Min B.P. Min Bend Raidus Length
NO. inch mm inch mm psi bar psi bar inch mm feet
PWTA-0525 3/16 4.8 0.46 11.8 300 20 900 60 4.65 118 25
PWTA-0550 3/16 4.8 0.46 11.8 300 20 900 60 4.64 118 50
PWTA-0625 1/4 6.3 0.51 13 300 20 900 60 5.12 130 25
PWTA-0650 1/4 6.3 0.51 13 300 20 900 60 5.12 130 50
PWTA-06100 1/4 6.3 0.51 13 300 20 900 60 5.12 130 100

Applications:

PASSION Twin Welding Hose is designed for welding and cutting applications in workshops, construction sites, factories, and other places. It is made of high-quality synthetic rubber with excellent flexibility and durability. The hose meets the requirements of ISO3821 and has passed the CE certification. The temperature range of the product is -30℃ to +100℃.

PASSION Twin Welding Hose model number is PSTW-0650. The minimum order quantity is 100 and the price is 25 each. Packaging Details are op film wrapped and sticker. It usually takes 3 weeks to deliver the product after the payment of the 30% deposit, and 70% balance. The company can supply up to 5000 pcs per month.

If you are looking for a reliable and high-quality twin welding hose, PASSION Twin Welding Hose is your best choice. It is packaged in a carton box and can meet all your welding requirements.

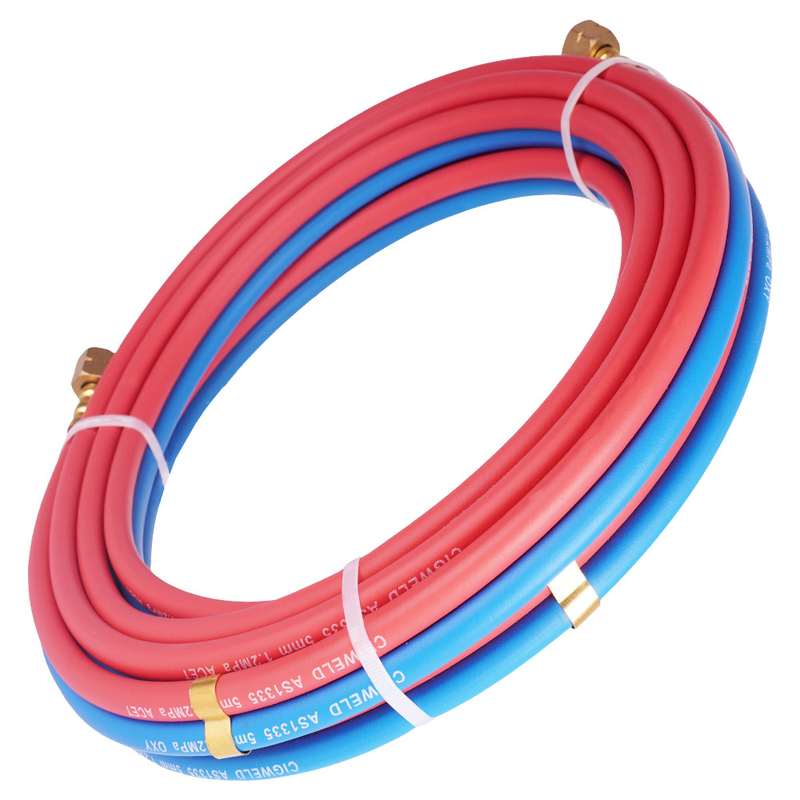

Double Color Oxygen Acetylene 1/4'' X 100FT Welding Twin Rubber Hose Assembly 2


Support and Services:

Our Twin Welding Hose is backed by a team of knowledgeable and experienced technicians who are dedicated to providing customers with technical support and service.

Our team of technicians can help customers select the right products for their application, provide advice on installation and operating tips, and assist with troubleshooting and repairs.

We also offer training courses to help customers get the most out of their Twin Welding Hose. These courses cover topics such as proper product selection, installation, operation, and maintenance.

For any questions or concerns, please contact our technical support team. We're here to help.


Packing and Shipping:

Packaging and Shipping of Twin Welding Hose

Twin welding hose is packaged and shipped in a variety of ways, depending on the quantity and size of the order. For small orders, the hoses are typically rolled and placed in cardboard boxes. For medium and large orders, the hoses are usually wrapped and placed on a wooden pallet for shipment.


FAQ:

Twin Welding Hose Questions and Answers

Q1: What is the Brand Name of the Twin Welding Hose?
A1: The Brand Name of the Twin Welding Hose is PASSION.

Q2: What is the Model Number of the Twin Welding Hose?
A2: The Model Number of the Twin Welding Hose is PSTW-0650.

Q3: Where is the Twin Welding Hose made?
A3: The Twin Welding Hose is made in China.

Q4: Is the Twin Welding Hose CE Certified?
A4: Yes, the Twin Welding Hose is CE Certified.

Q5: What is the Minimum Order Quantity for the Twin Welding Hose?
A5: The Minimum Order Quantity for the Twin Welding Hose is 100pcs.



Double Color Oxygen Acetylene 1/4'' X 100FT Welding Twin Rubber Hose Assembly 3
