Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
SAE 100R8

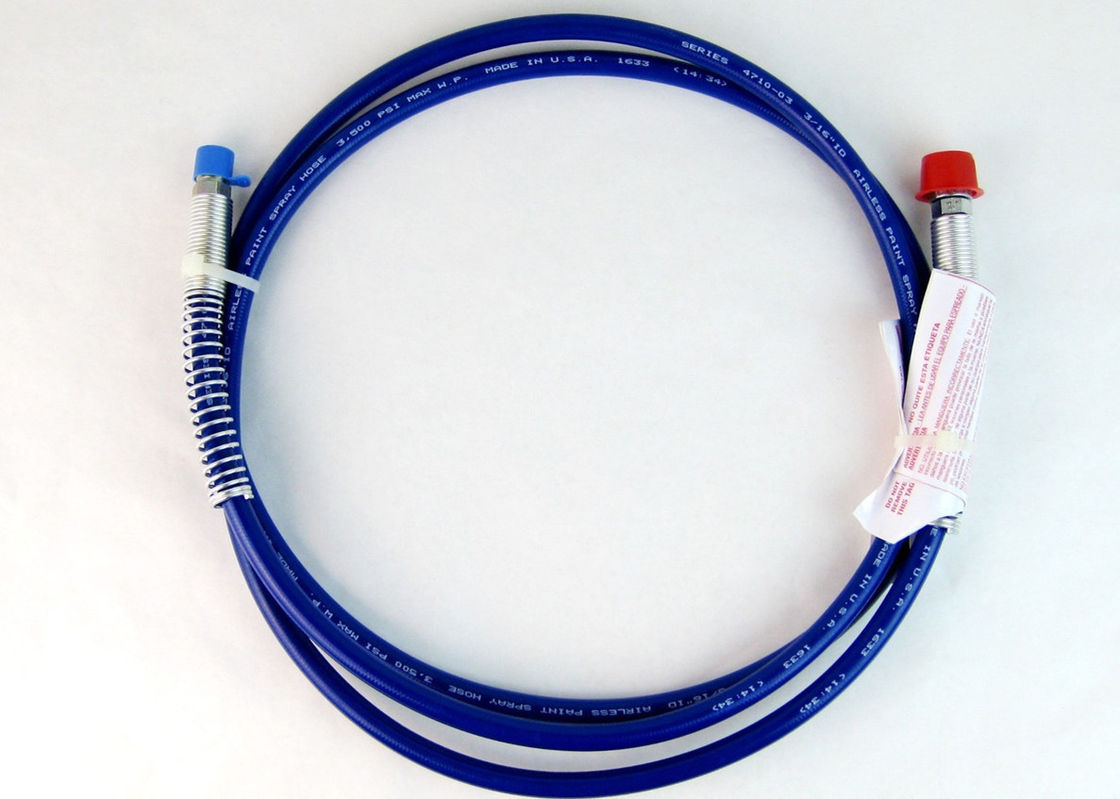

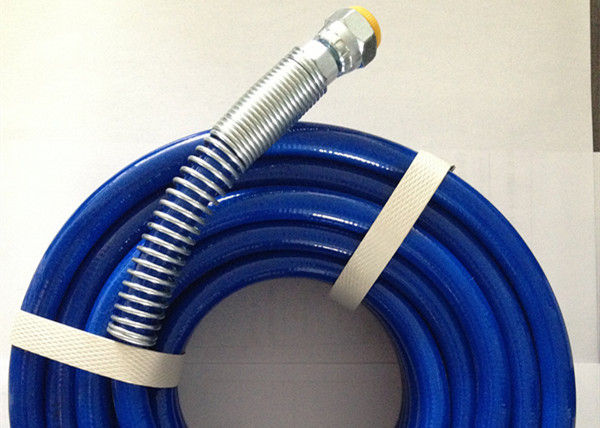

Blue SAE 100R8 Thermoplastic Hydraulic Hose , Paint Spray Hose
medium high pressure circuits High pressure lubrication lines Special features
*High pressure, light weight, reinforced by high tensile steel wire.
*Chemical Resistant.
*Working Temperature: -40C-+100C.
Construction: *Inner Hose: PA (Nylon).
*Reinforcement: One or two layers braided steel wire.
*Cover: PU (Poly Urethane).
Fitting Standard: BSP Fmale G1/4" D
Technology: Hydraulic Product: for paint
Function:spray Pressure range:middle-pressure
Protection level:heavy-duty Inner diameter:Min.: 5 mm Max.: 25 mm
Outer diameter: Min.: 14.6 mm Max.: 38.6 mm Reinforcement:fiber-braided
Working pressure:Min.: -40 °C (-40 °F) Max.: 100 °C (212 °F)
|
Item code |
I.D |
|
O.D |
W.P |
|
B.P |
|
Length |
Min. Bend Radius |
Weight |
|
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
mm |
kg/m |
|
PR8-05 |
3/16" |
5 |
14.6 |
350 |
5075.0 |
1400 |
20300 |
100 |
90 |
0.08 |
|
PR8-06 |
1/4" |
6.3 |
16.8 |
350 |
5075.0 |
1400 |
20300 |
100 |
100 |
0.09 |
|
PR8-10 |
3/8" |
10 |
20.3 |
280 |
4046.0 |
1120 |
16240 |
100 |
125 |
0.18 |
|
PR8-13 |
1/2" |
12.5 |
24.6 |
245 |
3552.5 |
980 |
14210 |
100 |
180 |
0.22 |
|
PR8-16 |
5/8" |
16 |
29.8 |
192 |
2784.0 |
770 |
11165 |
50 |
205 |
0.31 |
|
PR8-19 |
3/4" |
19 |
33.0 |
157 |
2276.5 |
630 |
9135 |
50 |
240 |
0.36 |
|
PR8-25 |
1'' |
25 |
38.6 |
140 |
2030.0 |
560 |
8120 |
50 |
300 |
0.51 |
Applications:
|
1 |
To transfer petroleum base hydraulic fluids. |
|
2 |
Used as Paint Spray Hose. |
|
3 |
Used on Portable Powered Desalinator. |
|
4 |
Other Industry Use. |
Competitive Advantage:
We are the professional manufacturer of hoses in China.
Our products have been exported to more than 50 countries such as USA,UK,Austrilia,Brazil,etc.
And received favorable response with competitve price,high quality and nice service from our customer in worldwide.
So you can rest assured to cooperate with us!
For more detailed information, please contact us.
