Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
SAE 100R7

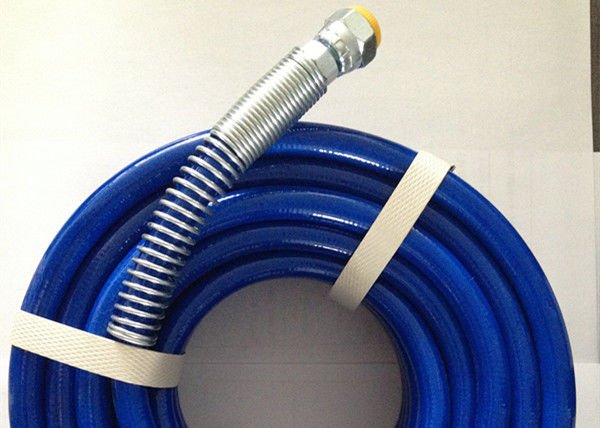

SAE 100R7 / Thermoplastic Hydraulic Hose / Paint Spray Hose / Spray Hose
Characteristics:
medium high pressure circuits High pressure lubrication lines Special features
*High pressure, light weight, reinforced by high tensile steel wire.
*Chemical Resistant.
*Working Temperature: -40C-+100C.
Construction: *Inner Hose: PA (Nylon).
*Reinforcement: One or two layers braided steel wire.
*Cover: PU (Poly Urethane).
Fitting Standard: BSP Fmale G1/4" D
Specifications:
|
Item code |
I.D |
O.D |
W.P |
B.P |
Length |
Min. Bend Radius |
Weight |
|||
|
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
mm |
kg/m |
|
PR7-05 |
3/16" |
5 |
11.9 |
210 |
3045.0 |
840 |
12180.0 |
100 |
90 |
0.07 |
|
PR7-06 |
1/4" |
6.3 |
13.5 |
192 |
2784.0 |
770 |
11165.0 |
100 |
100 |
0.09 |
|
PR7-08 |
5/16" |
8 |
15.1 |
175 |
2537.5 |
700 |
10150.0 |
100 |
115 |
0.13 |
|
PR7-10 |
3/8" |
10 |
16.7 |
157 |
2276.5 |
630 |
9135.0 |
100 |
125 |
0.16 |
|
PR7-13 |
1/2" |
12.5 |
20.6 |
140 |
2030.0 |
560 |
8120.0 |
100 |
180 |
0.22 |
|
PR7-16 |
5/8" |
16 |
23.8 |
105 |
1522.5 |
420 |
6090.0 |
50 |
205 |
0.33 |
|
PR7-19 |
3/4" |
19 |
27.8 |
87 |
1261.5 |
350 |
5075.0 |
50 |
240 |
0.40 |
|
PR7-25 |
1'' |
25 |
36 |
70 |
1015.0 |
280 |
4060.0 |
50 |
300 |
0.40 |
Applications:
|
1 |
To transfer petroleum base hydraulic fluids. |
|
2 |
Used as Paint Spray Hose. |
|
3 |
Used on Portable Powered Desalinator. |
|
4 |
Other Industry Use. |
Competitive Advantage:
We are the professional manufacturer of hoses in China.
Our products have been exported to more than 50 countries such as USA,UK,Austrilia,Brazil,etc.
And received favorable response with competitve price,high quality and nice service from our customer in worldwide.
So you can rest assured to cooperate with us!
