5 / 16'' x 100 FT Grade T Welding Hose With Connectors For Middle East

5 / 16'' x 100 FT Grade T Welding Hose With Connectors For Middle East

Welding Gas Hose

Welding Rubber Hose

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

5/16''

Contact Us
Request A Quote
Product Details
Material:
SBR & NR
ID Size:
8mm
OD:
15mm
Working Pressure:
20bar (300psi)
Burst Pressure:
60bar (900 Psi)
Reinforcement Layer:
High Tensile Polyester Fiber Braided
Color:
Red & Blue
Temperature Range:
-25°C To 70°C
Length:
100FT (30.5m)
Certificates:
CE, ISO
Packing:
Wrapped By OPP Film, Customized Packing Is Available
Main Market:
Middle East
Surface:
Smooth Finish
Connectors:
Brass Adapter
Quality Level:
Grade R
Process:
Extrusion
Standard:
BS EN559
Highlight:

Welding Gas Hose

,

Welding Rubber Hose

Payment & Shipping Terms
Minimum Order Quantity
100 pcs
Price
Negotiated
Packaging Details
Wrapped by transparent OPP film, pallet, color packing can be customized
Delivery Time
20 days after received the advance payment
Payment Terms
T/T, LC, Paypal, MoneyGram or Western Union
Supply Ability
400,000 m per month
Product Description

5 / 16'' x 100 FT Grade T  Welding Hose With Connectors  For Middle East



Specifications:



Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

mm

bar

psi

bar

psi

FT

cbm/roll

Kg/roll

3/16"&3/16"

4.8

11.5

20

300

60

900

25

0.0048

2.5

3/16"&3/16"

4.8

11.5

20

300

60

900

50

0.009

4.0

3/16"&3/16"

4.8

11.5

20

300

60

900

100

0.018

8.0

1/4"&1/4"

6.4

13

20

300

60

900

25

0.005

2.9

1/4"&1/4"

6.4

13

20

300

60

900

50

0.01

5.5

1/4"&1/4"

6.4

13

20

300

60

900

100

0.02

11

5/16"&5/16"

7.9

15

20

300

60

900

25

0.007

3.45

5/16"&5/16"

7.9

15

20

300

60

900

50

0.012

6.8

5/16"&5/16"

7.9

15

20

300

60

900

100

0.022

13.5

3/8"&3/8"

9.5

17

20

300

60

900

25

0.009

4.3

3/8"&3/8"

9.5

17

20

300

60

900

50

0.015

8.1

3/8"&3/8"

9.5

17

20

300

60

900

100

0.024

15.9




Description:



1, Construction: Tube: SBR Synthetic Rubber

                        Reinforcement: High tensile polyester fiber braided.

                        Cover: SBR Synthetic Rubber



2, Appearance:    Smooth finish

                          Green or Blue outer layer of oxygen rubber hose

                          Red outer layer of fuel gas hose, e.g. acetylene

3, Applicable temperature: -25°C to +75°C



4, Standard length: 100FT



5, Bend radius: 10 times of proper diameter dimension



6, Package:   Common packed by OPP transparent film.

The pallet and woven bag packing are available, the color sticker can be offerd,  but shall be charged additionally.



7, Trademark: PASSION, OEM is available



8, Property: Anti-ozone aging, Heat-proof aging, Corrosion resistance and excellent flexibility.



9, Certificates: CE, SGS, ISO



10, Main market: Middle East, Europe and America



11: Joint Connection:

                              Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;

Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc

Brass teeth of American system (G9/16 18N), America, Middle East and  South America etc.

Australian system (5/8-18N), Australia etc

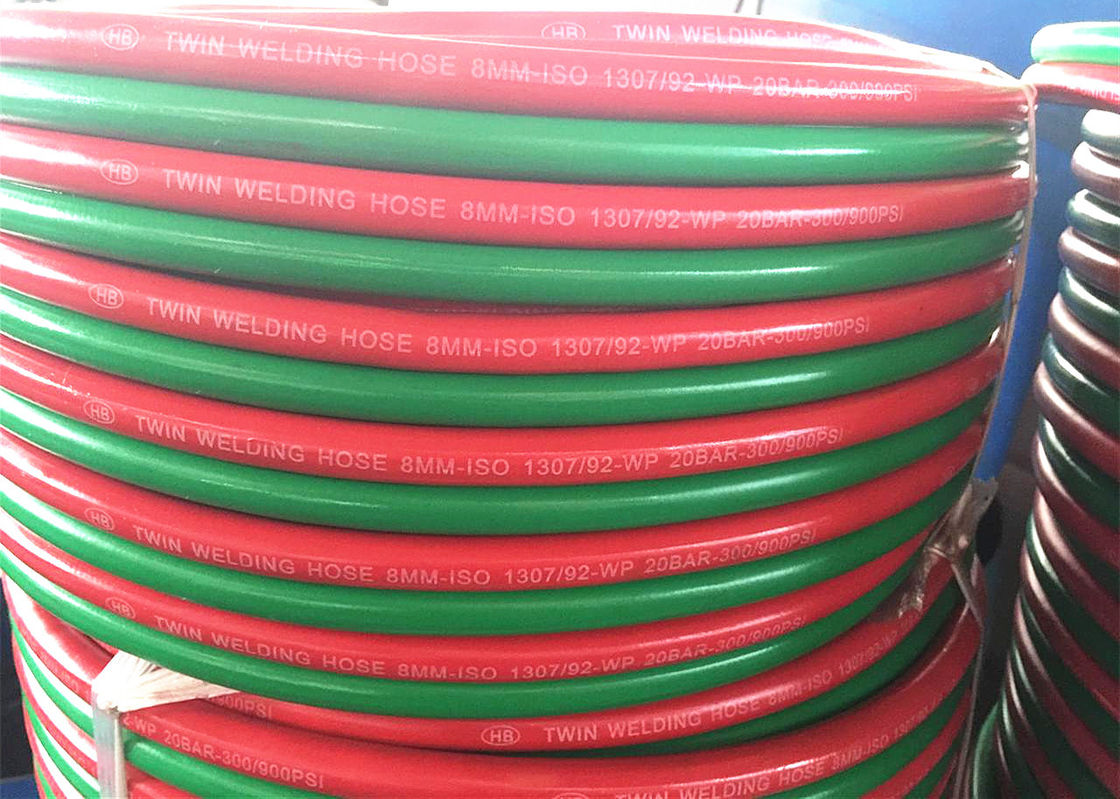

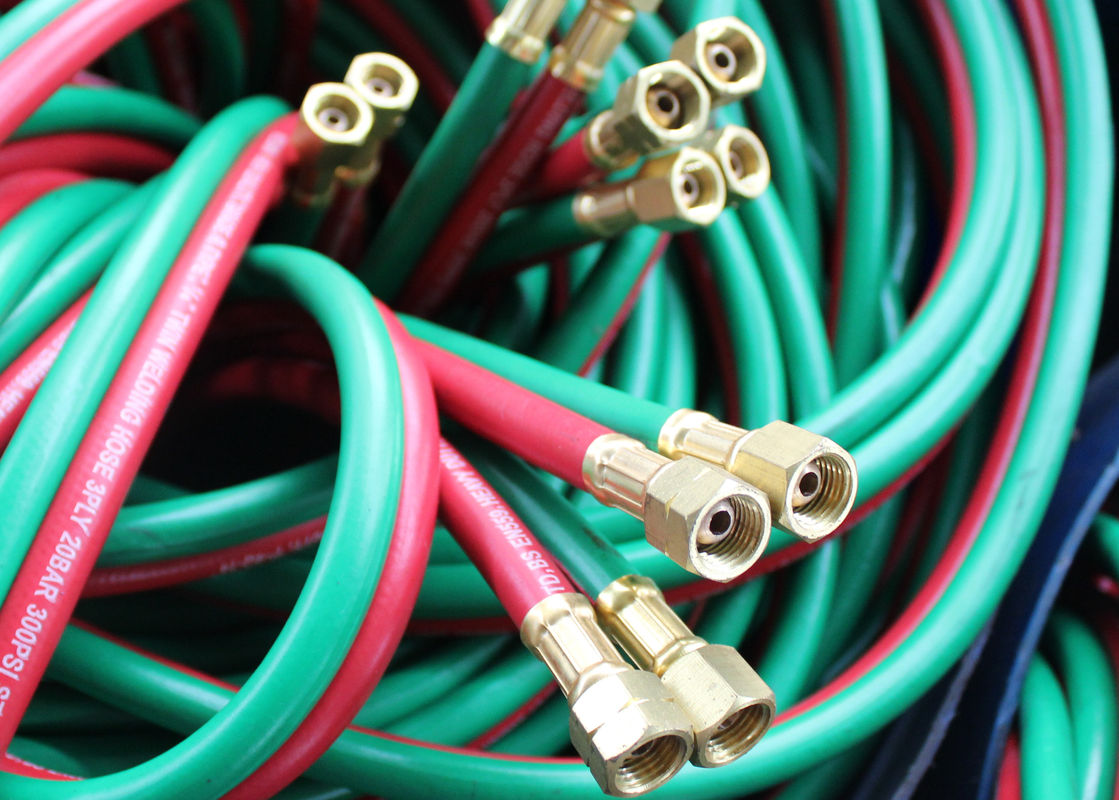

5 / 16'' x 100 FT Grade T  Welding Hose With Connectors  For Middle East 0

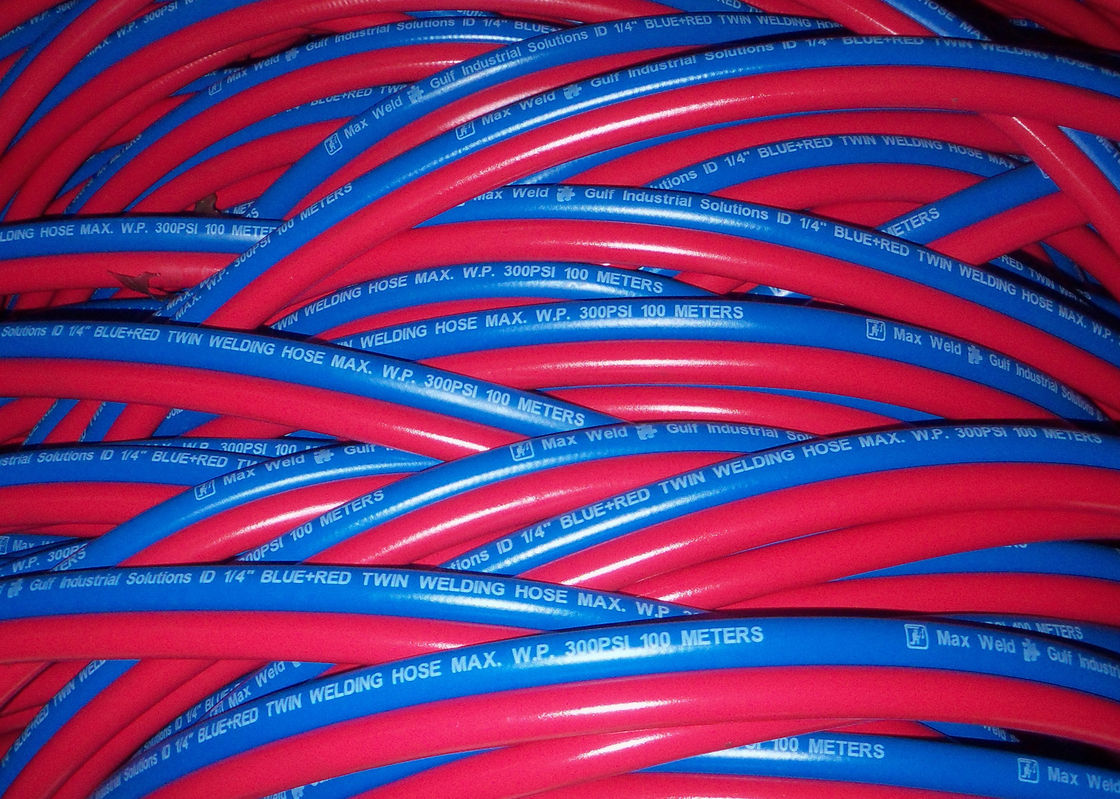

5 / 16'' x 100 FT Grade T  Welding Hose With Connectors  For Middle East 1

Applications:



Mainly used for oxygen / acetylene gas welding; inert gas (such as argon gas and helium gas etc.)



Competitive Advantage:



Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China. 8 years manufacturing experience, 50 sets of braiders and 3 production lines.

Free sample can be offered, and we can customize as your request.



Cooperative Brand:



WELDMAN, Max Weld, Goldenflex, SAEFLEX. REDI-WELD



Company Slogan:



PASSION FOR HOSE! PASSION FOR YOU!

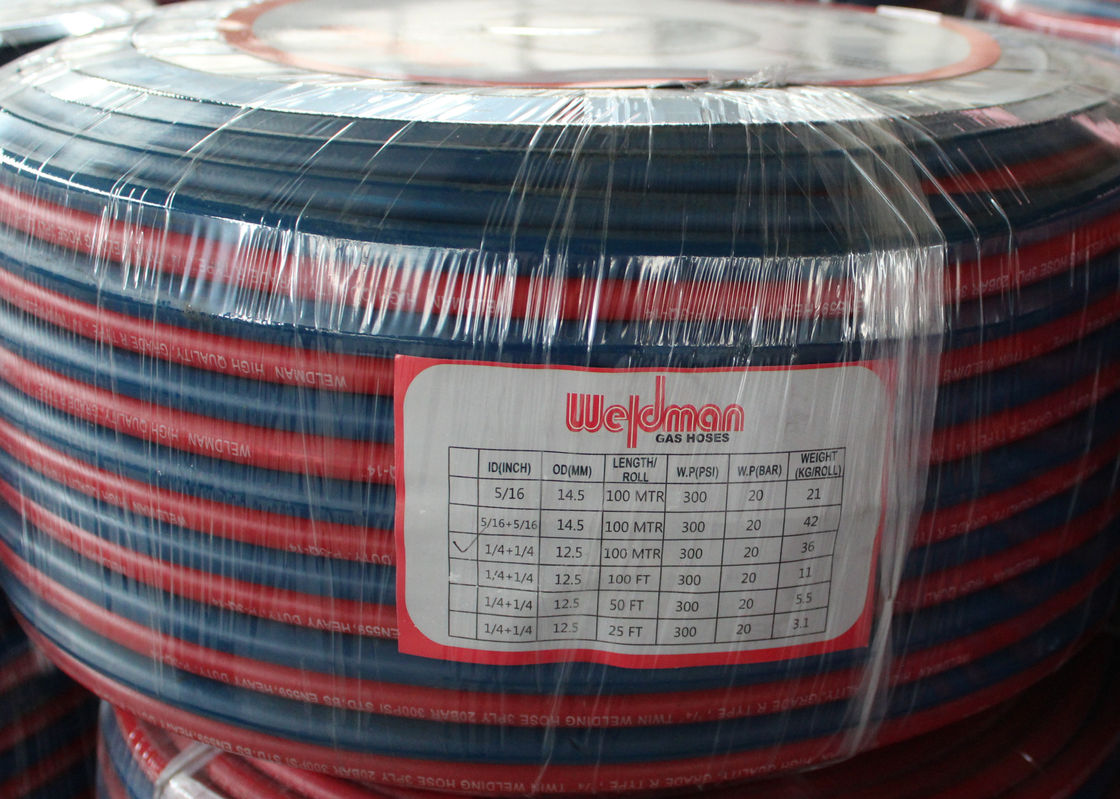

5 / 16'' x 100 FT Grade T  Welding Hose With Connectors  For Middle East 2
