Polyester Fiber Spiral Hose Pipe , Yellow Jacket Refrigerant Hoses

Polyester Fiber Spiral Hose Pipe , Yellow Jacket Refrigerant Hoses

  • High Light

    R134a Refrigerant Hose

    ,

    AC Refrigerant Hose

  • Color
    Yellow
  • Specification Size
    Inner Size: 5mm, Outer Size: 11m Or 12mm
  • Compostion
    Interior Tube+reinforced Lining+outerior Tube
  • Performance
    Anti-ozone Aging, Heat-proof Againg, Corrosion Resistant Etc
  • Convrying Medium
    R134a, R12, R22, R502 Refrigerant Etc
  • Working Pressure
    500, 600, 800 Psi
  • Blasting Pressure
    2500, 3000, 4000 Psi
  • Weight (kg/m)
    0.13 Or 0.16
  • Volume
    0.02 CBM
  • Delivery
    By Sea, By Air And By Express Or As Your Requirement
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ID 5mm
  • Minimum Order Quantity
    3000m
  • Price
    negotiated
  • Packaging Details
    Refrigerant charging hose is well packed by transparent OPP films.
  • Delivery Time
    30 days for a 20' FCL after we have received the advanced payment.
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram, PayPal
  • Supply Ability
    400,000 per month

Polyester Fiber Spiral Hose Pipe , Yellow Jacket Refrigerant Hoses

Polyester Fiber Spiral Line Reinforced Refrigrant Charging Hose , Yellow color




Our refrigerant charging hose meets CE certification, quality is well-accepted in the markets of the EU. We use good NBR material, no recycled rubber, flexible, durable, better oil resistance and wear resistance.

We have been exporting large amount of the refrigerant charging hoses to these countries like the USA, the South Africa etc these years. It is one of our high-end hoses, since the quality is very stable.





Advantage:



1. Free hose samples can be provided here for customers to test.

2. We have good package for refrigerant charging hose, besides transparent OPP films, we can also pack the goods in carton or pallet. If you have some special requirement for package, We can also do the package according to your requirement.

3. We can print according to customers' specific requirement, we can also design the printing for customers.

4. Some other products which are used together with refrigerant hose like hose couplings, clamps ( iron or stainless steel) etc are also supplied here. We have stable suppliers of these products. For example, we have been exporting refrigerant charging hose assemblies with brass fittings.



Hose material:



Material is very important to hoses, we has been using good material and better compound rubber formula to guarantee the use time and security of hoses.



Inner tube: synthetic NBR rubber, which is the most used material for refrigerant charging hoses.



Reinforcement: high tensile fiber braided, the fiber is usually polyester thread, with the fiber braided reinforcement, the hose pressure can be guaranteed.



Outer tube: synthetic SBR and PVC for its good wear resistance.





Hose Production technology:



There are some small holes on the cover when producing to help to evacuate the gas which will protect the outer tube from bursting.





Hose Specification:



Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

mm

mm

psi

psi

m

cbm/roll

5

11

500

2500

100

0.02

    5

11

600

3000

100

0.02

    5

12

800

4000

100

0.02







Hose Length:



For sizes 5mm, the standard length is 100m per roll. Sometimes, the length can be 50m, 20m etc, it depends on customers' specific requirement.

We can also produce the hose with just several meters like 1.5m, 2m etc. These hoses in short length are fitted with connectors.



Hose colors:

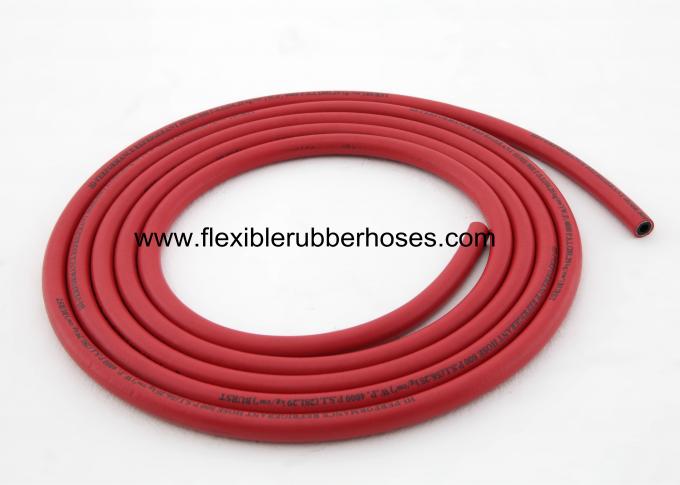

We produce refrigerant charging hoses with three colors: red, blue, yellow. These three colors are the standard colors in the markets. And these three colors hoses are always used together to convey the refrigerants.




Hose Pressure:



The working pressure for this hose is 500psi, 600psi, 800psi and the corrosponding burst pressures are 2500psi, 3000psi and 4000psi. We have s set of machine to test pressure, usually testing burst pressure. And the price will be higher with higher pressure.



Hose Application:



Refrigerant charging hose is widely used to convey refrigerant such as R12, R22, R502 and R134a, these are auto refrigeration, air-conditioning, industrial refrigerators etc.
