Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 8mm ~ 22mm

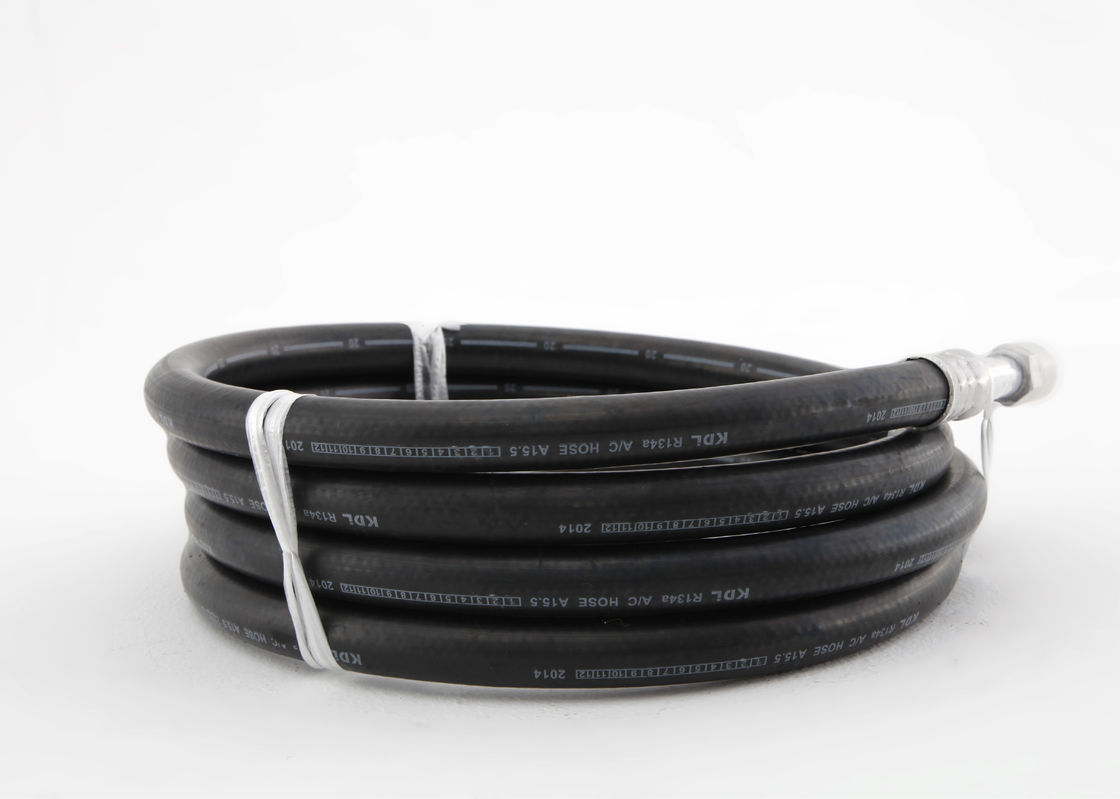

WP 15 Bar BP 160 Bar ID 19mm Air Conditioning Hose With Black Smooth Cover
1. Color for A/C hose:
Black is the standard color for air conditioning hose, and it is the most popular colorin the markets.
2. Specification information:
|
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
|
5/16 |
8.2±0.4 |
15.2±0.5 |
35 |
500 |
280 |
4060 |
100 |
|
13/32 |
10.2±0.4 |
17.2±0.5 |
35 |
500 |
220 |
3139 |
100 |
|
7/16 |
11.2±0.4 |
18.4±0.5 |
35 |
500 |
230 |
3335 |
100 |
|
1/2 |
13.2±0.4 |
20.8±0.5 |
35 |
500 |
200 |
2900 |
100 |
|
5/8 |
15.5±0.4 |
23.8±0.5 |
20 |
290 |
180 |
2610 |
50 |
|
3/4 |
19.0±0.4 |
28.5±0.5 |
15 |
210 |
160 |
2320 |
50 |
|
7/8 |
22.0±0.4 |
33.0±0.5 |
15 |
210 |
120 |
1740 |
50 |
3. Materials for air conditioning hose:
We use good EPDM material, no recycled rubber, flexible, durable, the synthetic rubber content for this hose is up to 40%, which is high in the range of rubber hoses.
Capabilities of EPDM material: Heat resistant, corrosion resistant, anti-aging etc.
Inside tube: nylon, PA
Middle tube: EPDM
Reinforcement layer: Single fiber braided.
Outer tube: EPDM with black and smooth cover.
Role of reinforcement layer: braided fiber is related to hose pressure. With fiber braided, the working pressure and burst pressure will be higer than hose without fiber braided.
4. Production skill of A/C hose:
When making Air conditioning hose, mandrel process is used here. That means there will be a mandel when making inner tube in order to make the inner diameter sizes more precise.
The cover is mill finish and shining, since a layer of PVC is added when making the cover, then we will do some vulcanization for the cover and remove the PVC layer finally.
5. Package and Shipment for A/C hose:
Package: We well pack the air conditioning hose by poly stripes, we can also pack the hose as customers' specific requirements.
Shipment: We can ship the goods as customers request. The regular shipment is bysea, by air and by express. our factory is near Ningbo or shanghai port, the transport is very convenient. We can provide timely delivery.
