Black R134a Car Air Conditioning Pipe  ID 13mm OD 20mm

Black R134a Car Air Conditioning Pipe ID 13mm OD 20mm

  • High Light

    Air Conditioner Hose

    ,

    Auto Air Conditioning Hoses

  • Hose Structure
    4 Layers
  • Cover
    Synthetic Rubber EPDM
  • Intermediate Layer
    Weaving Fiber Braided
  • Insider Size Range
    8mm ~ 22mm
  • Hose Certification
    CE
  • Working Pressure
    35 Bar, 20 Bar, 15 Bar
  • Printing
    We Can Print As Customers' Requirement.
  • Inside Tube Material
    Nylon
  • Length
    100m Or 50m/roll
  • Surface
    Mill Finish And Black
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ID 8mm ~ 22mm
  • Minimum Order Quantity
    500m
  • Price
    negotiated
  • Packaging Details
    Regular package for air conditioning hose is poly stripes, we can also pack hoses as customers' request.
  • Delivery Time
    According to your quantity, eg. 30 days for a 20' container
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram, PayPal
  • Supply Ability
    400,000m per month

Black R134a Car Air Conditioning Pipe ID 13mm OD 20mm

R134a Air Conditioning Hose Of Cars , ID 13mm OD 20mm , WP 35 Bar






1.This type of A/C hose has four layers, we call this A/C hose as type C air conditioner hose. Inside tube is nylon, middle tube is EPDM, reinforced layer is single fiber or PET reinforced, outer tube is EPDM with black and smooth surface.



2. Here is regular type of A/C hose with five layers. We call type E air conditioner hose. The inside tube is synthetic EPDM rubber.


3.Black is the standard color for air conditioning hose, and it is the most popular color in the markets.



4.Usage of air  conditioning hose:



A/C hose is mainly used to convey the medium of refrigerant such as R134a, R12, R22 etc. Applied widely to auto refrigeration in automoblie air conditioning system like bus transit system.


5. Specification:



Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

inch

mm

mm

bar

psi

bar

psi

m

 5/16

8.2±0.4

15.2±0.5

35

500

280

4060

100

13/32

10.2±0.4

17.2±0.5

35

500

220

3139

100

 7/16

11.2±0.4

18.4±0.5

35

500

230

3335

100

 1/2

13.2±0.4

20.8±0.5

35

500

200

2900

100

 5/8

15.5±0.4

23.8±0.5

20

290

180

2610

50

 3/4

19.0±0.4

28.5±0.5

15

210

160

2320

50

 7/8

22.0±0.4

33.0±0.5

15

210

120

1740

50

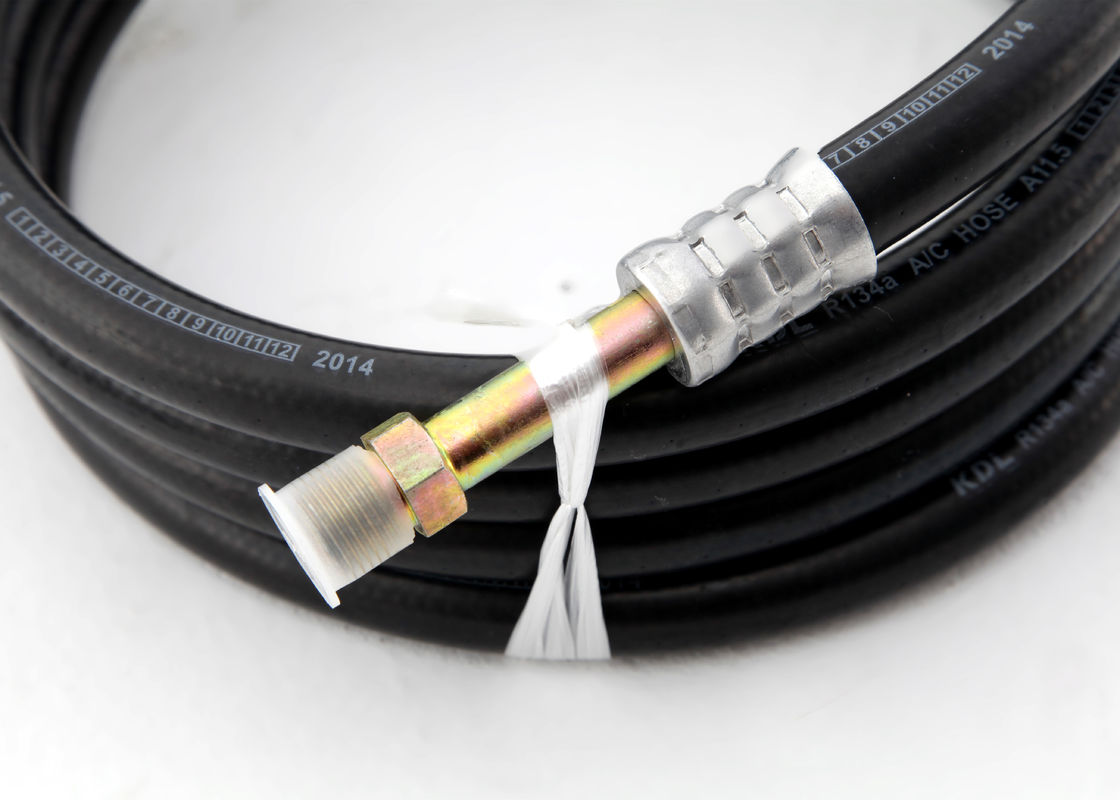

6. Air conditioning hose assembly:



We can supply and crimp the fittings of Air conditioning hose, we have a set ofmachines to crimp the fittings. We have been exporting large amount to Turkey.



7. Production technology of air conditioning hose:


For the cover, it is mill finish and shining, a layer of PVC is added when making the cover, then  we will do some vulcanization for the cover and remove the PVC layer finally



When making Air conditioning hose, mandrel process is used here. That means there will be a mandel when making inner tube in order to make the inner diameter sizes more precise.



There are some very small holes on the cover for gas evacuation not to let the outer tube burst. All the production skill will guarantee our air conditioning hose to have good performance.

Quality level of air conditioning hose:



8. We use good EPDM material, no recycled rubber, flexible, durable, the synthetic rubber content for this hose is up to 40%, which is high in the range of rubber hoses.



Air conditioning hose is one of the rubber hoses that we have been promoting, it meets CE certification. It is one of our high-end hose. Quality is priority and very stable, well-accepted in the markets.
