Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 6mm to 13mm
2m or 5m length LPG Gas Hose with Brass left Thread Female Fitting
Catalog of gas hose from Zoe.pdf
1. Hose material for LPG gas hose:
Inner tube: synthetic NBR rubber, which is the most used material for oil and gas hoses.
Reinforcement: high tensile fiber braided, the fiber is usually polyester thread, with the fiber braided reinforcement, the hose pressure can be guaranteed.
Outer tube: synthetic SBR and NR rubber for its good wear resistance.
Material is very important to hoses, our factory has been using good material and better compound rubber formula to guarantee the use time and security of hoses.
2. Specification for LPG gas hose:
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
|||
inch |
mm |
mm |
bar |
psi |
bar |
psi |
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
3/8" |
10 |
16 |
20 |
300 |
60 |
900 |
1/2" |
13 |
20 |
20 |
300 |
60 |
900 |
ID 6mm, 8mm and 10mm are the most popular sizes in the markets, they occupy large part of lpg gas hose markets.
We have been producing large amount of LPG gas hose assemblies with 3/8" brass left-hand female fittings in 2m and 5m length for one of our customers from the UK.

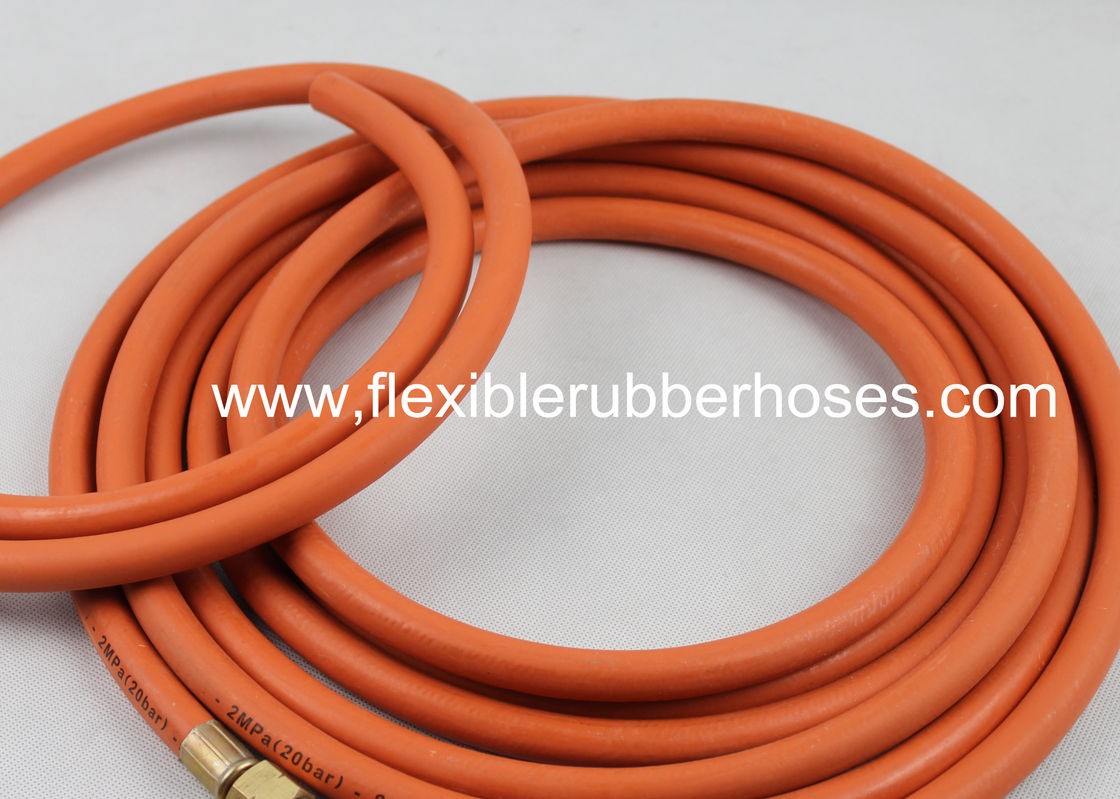

Orange is the standard color for LPG gas hose, and it is the most popular color in the markets.
3. Hose standards for LPG gas hose:
BS EN 599 is standard for rubber hose used for welding, cutting and allied processes.
BS EN ISO 3821 is standard for rubber hoses used for welding, cutting, etc.
BS 3212 is standard for flexible rubber tubing used in LPG vapour phase.
We have been exporting LPG gas hoses with standards BS EN 599, BS EN ISO 3821 and BS 3212 to the markets of the EU like the UK, the Cyprus, Greece etc.
4. Advantages:
a. We are professional LPG gas hose factory in east China, near Ningbo and Shanghai port. Lpg gas hose is our main and most export hose. Our factory has been producing LPG gas hose for over 8 years. Large amount has been exported to the market of the EU. We have been produced for one of our customers in the UK, we are his stable gas hose supplier in China.
b. Our LPG gas hose meets CE certification, quality is well-accepted in the markets of the EU. We use good NBR material, no recycled rubber, flexible, durable, better oil resistance and wear resistance.
c. For the fittings of LPG gas hose, our own factory can supply and crimp, we have a set of machines to crimp the fittings. Quality is stable.
d. We can supply some products which can be used with lpg gas hose together like hose Clamps, gas valves etc. We have stable suppliers of these products. We have been exporting much clamps in stainless steel and iron clamps to our customers from Cyprus.
e. All buiness is service business:
We can provide free hose samples for customers to test.
We can print according to customers' specific requirement.
We can package the hoses as customers' request.
Different colors can be served here.
We can ship the goods as customers request. The regular shipment is by sea, by air and by express.
our factory is near Ningbo or shanghai port, the transport is very convenient. We can provide timely delivery.
Other inner diameter sizes can be customized.
We will offer excellent after-sales services. Our team covers more than 20 salemen. Most of them have been working for over 5 years and every year fresh blood are absorbed in. The new employee will be trained for 3 months including product knowledge training, online product launch training, customer handling training etc. Our team welcome you with professional product knowledge and full passion.
Other colors of LPG gas hose:
