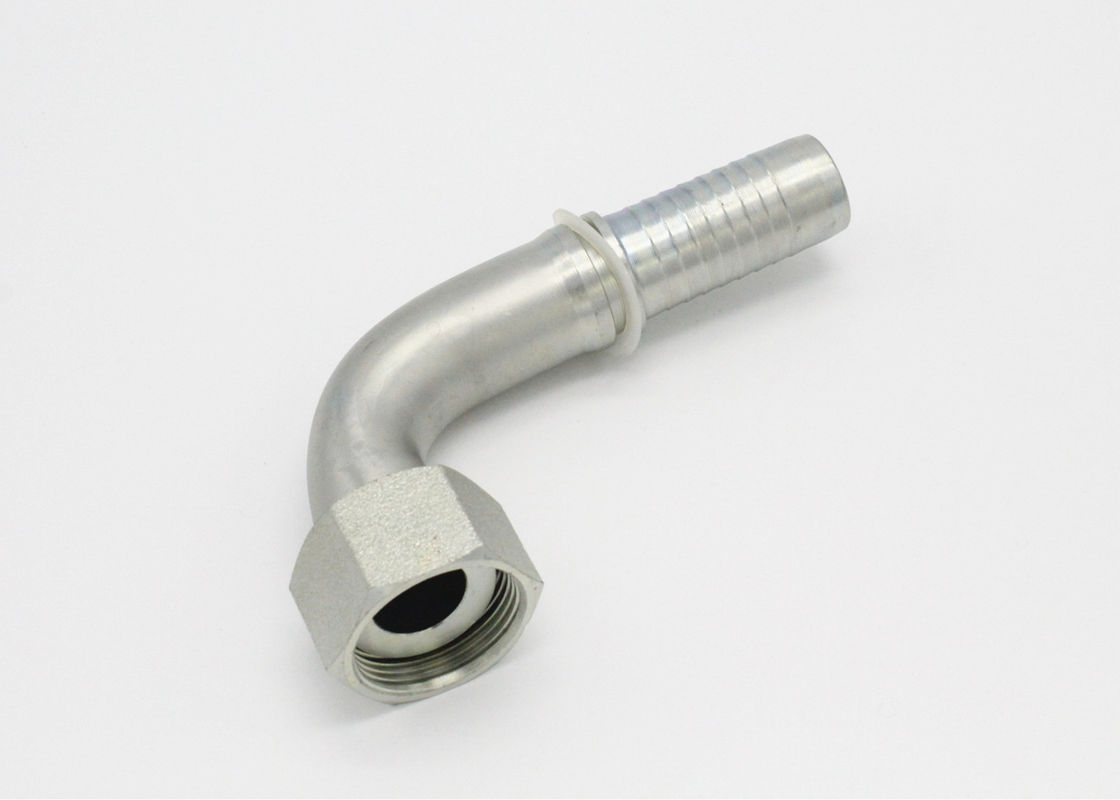

24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T )

24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T )

  • High Light

    hydraulic hose pipe fittings

    ,

    hydraulics hoses and fittings

  • Part Number
    24241 T
  • Size Of Hose
    3/16” To 2”
  • Appearance
    Galvanized Zinc
  • Color
    Silver And Golden
  • Material
    Carbon Steel 45#
  • Standard
    Eaton
  • Technic
    Forge
  • Machine
    CNC
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ORFS 24241 T
  • Minimum Order Quantity
    500pcs
  • Price
    Negotiated
  • Packaging Details
    Packed in cartons and wooden cases
  • Delivery Time
    Within 20 to 30 days after we receive advance payment
  • Payment Terms
    T/T, L/C, Western Union, Paypal, MoneyGram
  • Supply Ability
    60,000 pcs per month

24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T )



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings





Descrioption:



It is hydraulic hose fitting ORFS Flat Seal (24241 T).  It is Americal style one.



Specifications:



Product Name: 45° ORFS FEMALE FLAT SEAL (24241)
Product Type:24241T

Product Explain:



E

HOSE BORE

DIMENSIONS

PART NO.

THREAD E

DN

DASH

C

S

H

24241-04-04T

9/16"X18

6

04

8.5

19

23.4

24241-06-06T

11/16"X16

10

06

10

22

27.4

24241-08-08T

13/16"X16

12

08

11

27

30.4

24241-10-10T

1"X14

16

10

13

30

34.9

24241-12-12T

1.3/16"X12

20

12

15

36

39.5

24241-20-20T

1.11/16"X12

32

20

15

50

46.1

Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 24242-xx-xx .





It is hydraulic hose fittings ORFS Flat Seal in silver color (24241 T).



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 0



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 1



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 2




Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.





Other Hydraulic Hose Ferrule Fitting Products:



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 3

24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 4





Production Flow:



Material of ferrule: carton steel 20#

Material of fitting: carton steel 45#

All of our machines are CNC machines



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 5





Packgaing and Shipping:



Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.



24241T ORFS Industrial Hose Fittings , Hydraulic Rubber Hose Fittings ( 24241-T ) 6

Competitive Advantage:

-Our factory owns a group of high quality and high-tech professional designers and personnel group. It
possesses a series of the fully automatic computer CNC machine tools and high precision lathes, the
multiple spindles too machines, hexangular tool machines and electric heated bent pipe machines. We
 have strictly adopted the professional personnel to carry on the tests and examinations for our products

in order to provide an assurance in the high-quality for all the customers.


-Our factory success fully obtained the international quality certification system: ISO9001:2000 and

domestic production permit of hydraulic hose fittings.


-Our hydraulic hose fittings have been exported to many countries and areas in Europe, America, the

Middle East, the Southeast Asia and the South America.


-The material of our hydraulic hose fittings is good quality carton steel #45.


-Our warehouse is on the second floor, it is better to keep dry of stock of fittings.


-Our hydraulic hose fittings are well packed in cartons and wooden boxes. It is better to avoid fitting

damping.


-The branding can be printed on the fittings.


-The fittings can be customized according to samples or drawings.



- We have crimping machine to crimp hydraulic hose assembly.



- We use new technic to galvanize zinc. It makes carbon steel fitting looks like stainless steel one. The appearance is fantastic.
