Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 )

Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 )

hydraulic hose pipe fittings

hydraulics hoses and fittings

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

22691

Contact Us

Request A Quote
Product Details
Part Number:
22691
Size Of Hose:
3/16” To 2”
Appearance:
Galvanized Zinc
Color:
Silver And Golden
Material:
Carbon Steel 45#
Standard:
Eaton
Technic:
Forge
Machine:
CNC
Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiated
Packaging Details
Packed in cartons and wooden cases
Delivery Time
Within 20 to 30 days after we receive advance payment
Payment Terms
T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability
60,000 pcs per month
Product Description



Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 )





Descrioption:

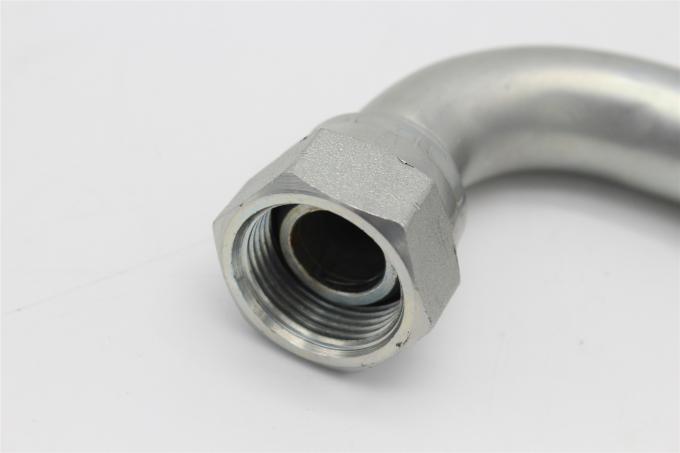

It is hydraulic hose fitting  90 DEGREE BSP FEMALE 60 DEGREE CONE (22691).  Most of Customers in China, Ukraine and Russia need this kind of metric fitting.





 Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.



Specifications:





90 DEGREE BSP FEMALE 60 DEGREE CONE





                               Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 ) 0   Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 ) 1Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 ) 2



                                22691                    22691-T                     22691-W





Part No. Thread E Hose Bore Dimensions
DN DASH A C H S2
22691-02-03 G1/8"X28 5 03 26.5 5.5 31.5 14
22691-02-04 G1/8"X28 6 04 30 5.5 34.5 14
22691-04-03 G1/4"x19 5 03 26.5 5.5 33.5 19
22691-04-04 G1/4"x19 6 04 30 5.5 36.5 19
22691-04-05 G1/4"x19 8 05 33 5.5 39.5 19
22691-04-06 G1/4"x19 10 06 30 5.5 36.5 19
22691-06-04 G3/8"x19 6 04 30 6.3 37.7 22
22691-06-05 G3/8"x19 8 05 33 6.3 40.7 22
22691-06-06 G3/8"x19 10 06 35.3 6.3 43 22
22691-08-06T G1/2"x14 10 06 35.3 7 43.3 27
22691-08-08 G1/2"x14 12 08 41 7.5 51 27
22691-08-10 G1/2"x14 16 10 56.5 7.5 55.5 27
22691-10-08 G5/8"x14 12 08 41 9.5 51.5 30
22691-10-10 G5/8"x14 16 10 56 9.5 56 30
22691-12-08T G3/4"x14 12 08 41 10.9 52.1 32
22691-12-10 G3/4"x14 16 10 56.5 10.9 56.6 32
22691-12-12 G3/4"x14 20 12 64.9 10.9 66.1 32
22691-16-12T G1"x11 20 12 65.5 11.7 68.3 41
22691-16-14 G1"x11 22 14 71.2 11.7 69.3 41
22691-16-16 G1"x11 25 16 78.7 11.7 73.8 41
22691-20-16T G1.1/4"x11 25 16 78 11 69.5 50
22691-20-20W G1.1/4"x11 32 20 91.5 11 84.3 50
22691-24-24W G1.1/2"x11 40 24 109.4 13 103 55
22691-32-32W G2"x11 50 32 131.8 16 123.3 70



 Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 22692-**-**.


Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 ) 3
Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 ) 4
Zinc Plated Hydraulic Hose Fitting , Hydraulics Hoses And Fittings ( 22691 ) 5
