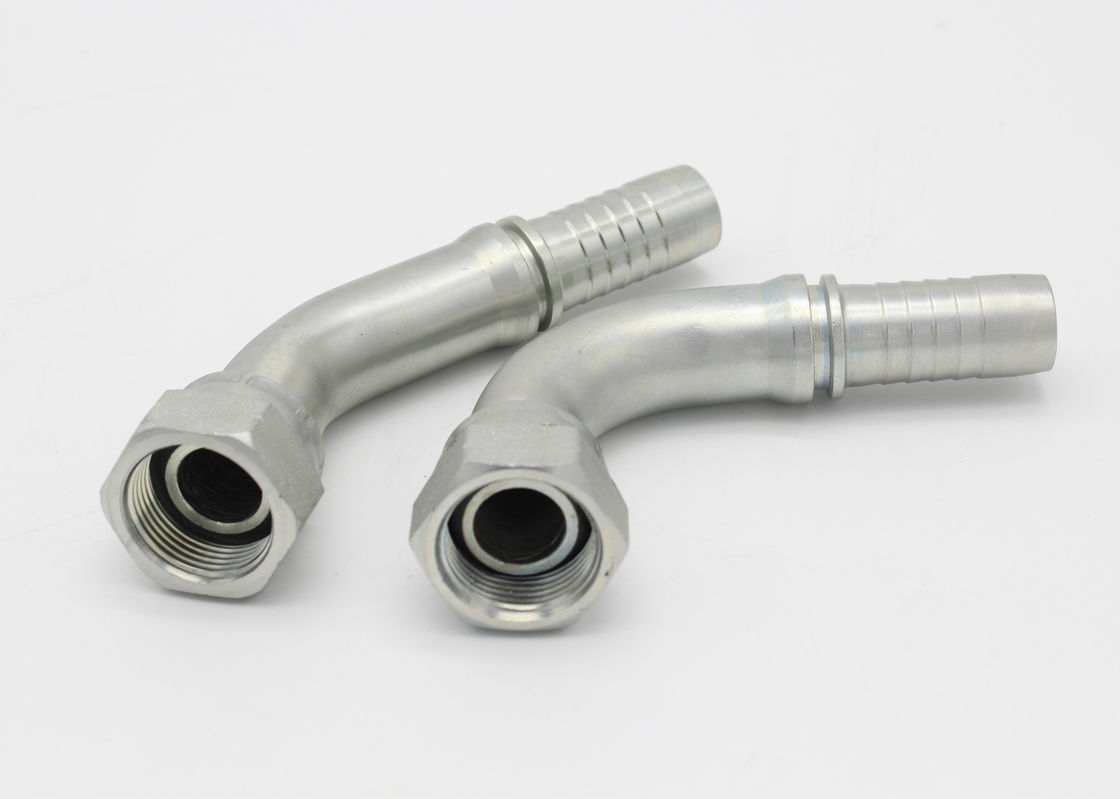

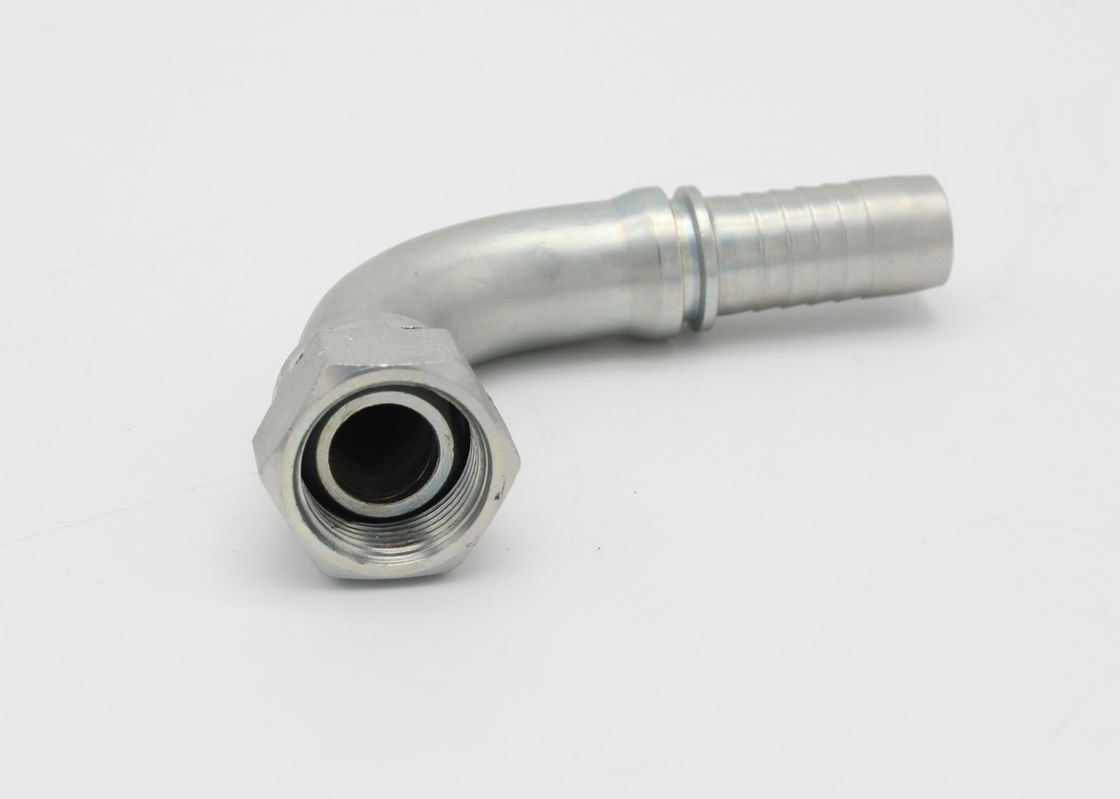

90 Degree BSP Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 )

90 Degree BSP Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 )

hydraulic hose pipe fittings

hydraulics hoses and fittings

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

BSP FEMALE 22691

Contact Us
Request A Quote
Product Details
Part Number:
22691
Size Of Hose:
3/16” To 2”
Appearance:
Galvanized Zinc
Color:
Silver And Golden
Material:
Carbon Steel 45#
Standard:
Eaton
Technic:
Forge
Machine:
CNC
Highlight:

hydraulic hose pipe fittings

,

hydraulics hoses and fittings

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
Negotiated
Packaging Details
Packed in cartons and wooden cases
Delivery Time
Within 20 to 30 days after we receive advance payment
Payment Terms
T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability
60,000 pcs per month
Product Description



90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal 22691





Descrioption:



It is hydraulic hose fitting 90 degree BSP Female 60 degree Cone Seal, English style one. Almost all of our customers need this kind of hydraulic fitting.





Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.





Specifications:



 90 DEGREE BSP FEMALE 60 DEGREE CONE



90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 0             90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 1            90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 2

   22691                                 22691-T                            22691-W



Part No. Thread E Hose Bore Dimensions
DN DASH A C H S2
22691-02-03 G1/8"X28 5 03 26.5 5.5 31.5 14
22691-02-04 G1/8"X28 6 04 30 5.5 34.5 14
22691-04-03 G1/4"x19 5 03 26.5 5.5 33.5 19
22691-04-04 G1/4"x19 6 04 30 5.5 36.5 19
22691-04-05 G1/4"x19 8 05 33 5.5 39.5 19
22691-04-06 G1/4"x19 10 06 30 5.5 36.5 19
22691-06-04 G3/8"x19 6 04 30 6.3 37.7 22
22691-06-05 G3/8"x19 8 05 33 6.3 40.7 22
22691-06-06 G3/8"x19 10 06 35.3 6.3 43 22
22691-08-06T G1/2"x14 10 06 35.3 7 43.3 27
22691-08-08 G1/2"x14 12 08 41 7.5 51 27
22691-08-10 G1/2"x14 16 10 56.5 7.5 55.5 27
22691-10-08 G5/8"x14 12 08 41 9.5 51.5 30
22691-10-10 G5/8"x14 16 10 56 9.5 56 30
22691-12-08T G3/4"x14 12 08 41 10.9 52.1 32
22691-12-10 G3/4"x14 16 10 56.5 10.9 56.6 32
22691-12-12 G3/4"x14 20 12 64.9 10.9 66.1 32
22691-16-12T G1"x11 20 12 65.5 11.7 68.3 41
22691-16-14 G1"x11 22 14 71.2 11.7 69.3 41
22691-16-16 G1"x11 25 16 78.7 11.7 73.8 41
22691-20-16T G1.1/4"x11 25 16 78 11 69.5 50
22691-20-20W G1.1/4"x11 32 20 91.5 11 84.3 50
22691-24-24W G1.1/2"x11 40 24 109.4 13 103 55
22691-32-32W G2"x11 50 32 131.8 16 123.3 70



Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 22692-**-**.



It is hydraulic hose fittings 90 degree BSP Female 60 degree Cone Seal in silver color (22691).

90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 3

90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 4





It is hydraulic hose with fitting 22611 and 22691. We can do it in our factory.



90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 5



It is our warehouse.



90 Degree BSP  Hydraulic Hose Fitting 60 Degree Cone Seal ( 22691 ) 6




Competitive Advantage:

-Our factory owns a group of high quality and high-tech professional designers and personnel group. It
possesses a series of the fully automatic computer CNC machine tools and high precision lathes, the
multiple spindles too machines, hexangular tool machines and electric heated bent pipe machines. We
 have strictly adopted the professional personnel to carry on the tests and examinations for our products

in order to provide an assurance in the high-quality for all the customers.


-Our factory success fully obtained the international quality certification system: ISO9001:2000 and

domestic production permit of hydraulic hose fittings.


-Our hydraulic hose fittings have been exported to many countries and areas in Europe, America, the

Middle East, the Southeast Asia and the South America.


-The material of our hydraulic hose fittings is good quality carton steel #45.


-Our warehouse is on the second floor, it is better to keep dry of stock of fittings.


-Our hydraulic hose fittings are well packed in cartons and wooden boxes. It is better to avoid fitting

damping.


-The branding can be printed on the fittings.


-The fittings can be customized according to samples or drawings.



- We have crimping machine to crimp hydraulic hose assembly.



- We use new technic to galvanize zinc. It makes carbon steel fitting looks like stainless steel one. The appearance is fantastic.
