Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 3/16” to 1”
ID 3/16” to 1” SAE 100R7 High Pressure Thermoplastic Hydraulic Hose, I.D 3/16’’-1’’
Specifications:
|
Normal I.D Sizes |
I.D 3/16’’-1’’ |
|
Normal O.D Sizes |
11.9mm-36mm |
|
Working Temperature |
-40℃ to +100℃ |
|
Working Pressure |
210bar-70bar |
|
Bursting Pressure |
840bar-280bar |
|
Inner Tube |
Nylon |
|
Reinforcement |
High strength Fibre |
|
Outer Tube |
Polyurethane elastomer material |
|
Application |
Hose range suitable for use with petroleum base hydraulic fluids. |
|
Color |
Black, Red, Green, Blue or as customer request. |
|
Length |
Normal Length 50m, 100m or as request. |
|
Weight |
0.07kg/m-0.40kg/m. |
|
Min. Bend Radius |
90mm-300mm |
Description:
We are the professional manufacturer of hoses in China,our products have been exported to more than
50 countries such as USA,UK,Austrilia,Brazil,etc. And received favorable response with competitve price,
high quality and nice service from our customer in worldwide. So you can rest assured to cooperate with
us!

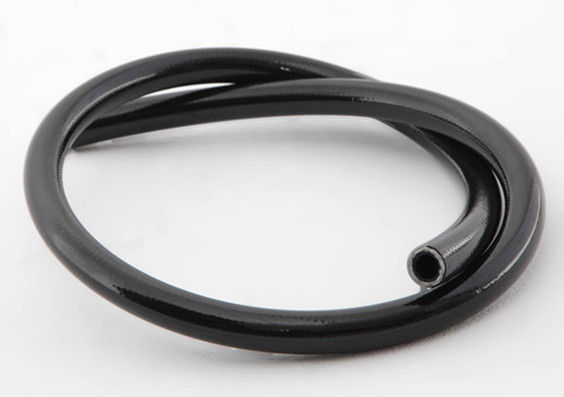

SAE 100R7 High Pressure Thermoplastic Hydraulic Hose

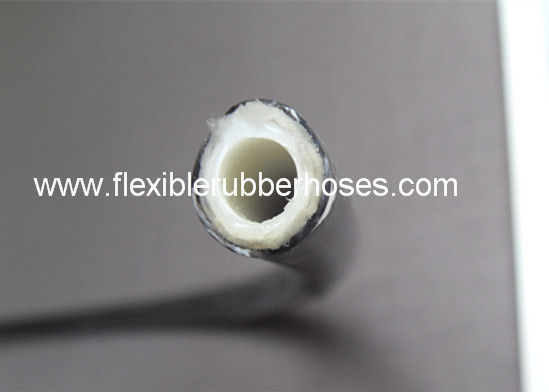

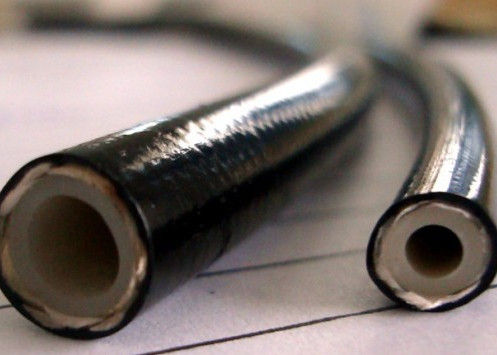

Construction: This hose consists of an thermoplastic inner tube resistant to hydraulic fluids, synthetic fibre
reinforcement, and weather resistant thermoplastic cover.
Material:
Inner Tube: Nylon
Reinforcement: High strength Fibre
Outer Tube: Polyurethane elastomer material
Application: Hose range suitable for use with petroleum base hydraulic fluids within a temperature range
of -40C-+93C.
Standard: SAE 100R7
|
|
I.D |
O.D |
W.P |
B.P |
Length |
Min. Bend Radius |
Weight |
|
|||||||||
|
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
mm |
kg/m |
|
||||||
|
PR7-05 |
3/16" |
5 |
11.9 |
210 |
3045.0 |
840 |
12180.0 |
100 |
90 |
0.07 |
|
||||||
|
PR7-06 |
1/4" |
6.3 |
13.5 |
192 |
2784.0 |
770 |
11165.0 |
100 |
100 |
0.09 |
|
||||||
|
PR7-08 |
5/16" |
8 |
15.1 |
175 |
2537.5 |
700 |
10150.0 |
100 |
115 |
0.13 |
|
||||||
|
PR7-10 |
3/8" |
10 |
16.7 |
157 |
2276.5 |
630 |
9135.0 |
100 |
125 |
0.16 |
|
||||||
|
PR7-13 |
1/2" |
12.5 |
20.6 |
140 |
2030.0 |
560 |
8120.0 |
100 |
180 |
0.22 |
|
||||||
|
PR7-16 |
5/8" |
16 |
23.8 |
105 |
1522.5 |
420 |
6090.0 |
50 |
205 |
0.33 |
|
||||||
|
PR7-19 |
3/4" |
19 |
27.8 |
87 |
1261.5 |
350 |
5075.0 |
50 |
240 |
0.40 |
|
||||||
|
PR7-25 |
1'' |
25 |
36 |
70 |
1015.0 |
280 |
4060.0 |
50 |
300 |
0.40 |
|
||||||
Applications:
|
1 |
To transfer petroleum base hydraulic fluids. |
|
2 |

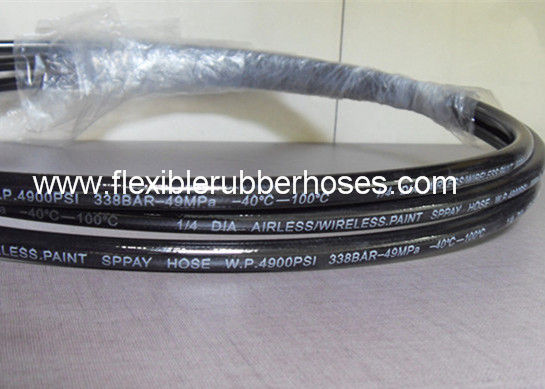

Used as Paint Spray Hose. |
|
3 |
Used on Portable Powered Desalinator. |
|
4 |
Other Industry Use. |
