R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner

R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner

Rubber Refrigerant Charging Hose

R410a Refrigerant Charging Hose

PVC Blend Refrigerant Charging Hose

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2015, CE, ROHS

Model Number:

ID 5mm

Contact Us

Request A Quote
Product Details
Colors:
Red, Blue,yellow
Cover:
NBR & PVC Blends.
Conveying:
R410a
Temperature:
-30℃ - +100℃
Reinforcement:
Polyester Fiber Spiral Line
Oil Resistance:
Grade RMA-A
Operationg Pressure:
500psi, 600psi,800psi
Burst Presure:
2500psi, 3000psi, 4000psi
Length:
36", 72" Or As Your Request
Fittings:
Brass Fittings With Ball Valve
Standard:
SAEJ2196
Cetificate:
CE Approved
Connection:
Quick Coupler
Payment & Shipping Terms
Minimum Order Quantity
100pieces
Price
negotiated
Packaging Details
Refrigerant charging hose is well packed by transparent OPP films.
Delivery Time
30 days for a 20' FCL after we have received the advanced payment.
Payment Terms
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability
400,000 per month
Product Description



R410a Red Yellow Blue Rubber Refrigerant Charging Hose for Air Conditioner



Product Description:



Refrigerant Charging Hose (smooth surface)

Construction: Inner tube: High nitrile-butadience rubber (NBR)

Reinforcement: Polyester fiber spiral line.

Cover: NBR&PVC blends.

Temperature: -30℃ - +100℃

Color: Red, Yellow, Blue, Black.



Please check the details as below.

Catalog of refrigerant charging hose from Zoe Pais...



        Specification sheet:



Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

mm

mm

psi

psi

m

cbm/roll

kg/m

5

11

500

2500

100

0.02

0.13

    5

11

600

3000

100

0.02

0.13

   5

12

800

4000

100

0.02

0.16





Air Conditioning Service Freon Charging Hose with Ball Valve

Connector:1/4SAE, 1/2"ACME, 5/16"SAE
Refrigerant: R12 R13 R14 R22 R23 R114 R123 R134a R290 R401A R401B R402A R402B R404A R406A R407A R407C R408A R409A R410A R414A R416A R417A R420A R421A R422A R422B R422D R424A R427A R434A R437A R502 R503 R507 R718
Length: 36", 60", 72",96" or customized
R12,R22,R502 Refrigerant Standard: Working pressure:500PSI,Burst pressure:2500PSI.
R134A Refrigerant Standard: Working pressure:600PSI,Burst pressure:3000PSI.
R410A Refrigerant Standard: Working pressure:800PSI,Burst pressure:4000PSI.



Product Photos:

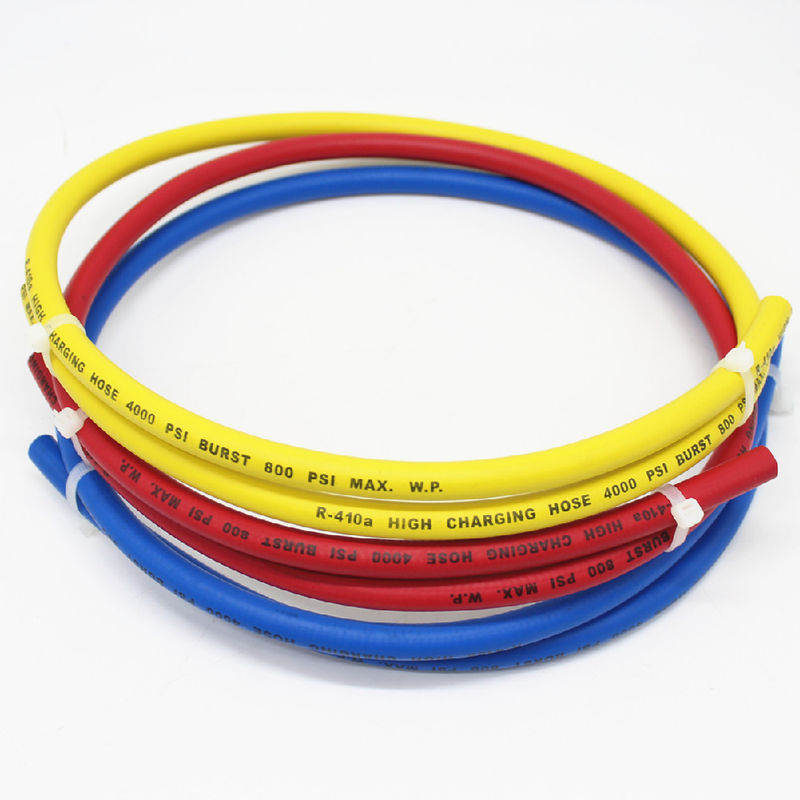

R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner 0R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner 1

The Red and Blue quick coupler: ( Low and High Pressure )
After fitting it into the car, for opening the gas flow, you need to rotate the valve in one direction. Then only, the gas will start flowing into the machine. Similarly, for removing the coupler, you need to first close the valve by rotating it to the opposite direction. Then only, we will be able to take out the coupler from car.Other wise, it will not be taken out even if you try to pull it out.

Application:

R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner 2

Description:

Easy retrofit of existing PLUS hoses with ball valve capabilities.

Valve handle position shows when valve is opened or closed

Flexible length of hose between valve and fitting makes access to tight areas easier



for the 45° end: easy installation in tight areas

Gaskets resist deterioration from existing , HCFC and HFC refrigerants and oils

Available with SealRight fittings on both ends





Low loss anti-blow back SealRight fitting immediately traps refrigerant in the hose when disconnected, helping meet non-venting regulations and prevent finger burns.





1. Refrigerant charging hose with ball valve for manifold gauge r410 r22 r134a
2. Charging working pressure 500PSI-800PSI
3. Connection:1/4SAE
4. Model length:36",60",72".



Usage for refrigerant charging hose:

Conveying refrigerant such as R12, R22, R502 and R134a; applied widely to auto refrigeration, air-conditioning, industrial refrigerators etc; both the inner rubber layer and protective layer are of high level oil resistance of grade RMA-A antiseepage.



Packaging & Shipping

R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner 3



About Us:





PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.



PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.



PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!

R410a Red Yellow Blue Rubber Refrigerant Charging Hose For Air Conditioner 4





FAQ:



1. Q:Are you a factory or trading company?
A:We are a factory for over 14 years.

2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!

3. Q:How can I get some samples?
A:  We are honored to offer you samples.

4. Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.









Passion for hose, Passion for you.
