Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: CE
Model Number: PTW-06
Payment & Shipping Terms
Minimum Order Quantity: 250 pcs
Price: Negotiated
Packaging Details: Wrapped by transparent OPP film, pallet, color packing can be customized
Delivery Time: 18 days after received the advance payment
Payment Terms: T/T, LC, Paypal, MoneyGram or Western Union
Supply Ability: 25,000 pcs per month
Material: |
NBR |
Inside Diameter: |
6.3mm +/-0.3 |
Outside Diameter: |
13mm +/-0.4 |
Working Pressure: |
200psi |
Burst Pressure: |
800psi |
Reinforcement Layer: |
High Tensile Polyester Fiber Braided (1B) |
Color: |
Red & Green |
Temperature Range: |
-25°C To 80°C |
Length: |
25ft |
Certificates: |
CE, ISO |
Packing: |
Wrapped By OPP Films, Customized Packing Is Available |
Surface: |
Smooth |
Connectors: |
Brass Adapter (G9/16''-18N), B-B Fittings |
Quality Level: |
Grade R |
Process: |
Extrusion |
Standard: |
BS EN559, RMA/CGA IP-7 |
Red Line: |
For Acetylene |
Green Line: |
For Oxygen |
Property: |
Excellent Permeability Resistant |
Warranty: |
1 Year |
Main Market: |
America, South America |
Material: |
NBR |
Inside Diameter: |
6.3mm +/-0.3 |
Outside Diameter: |
13mm +/-0.4 |
Working Pressure: |
200psi |
Burst Pressure: |
800psi |
Reinforcement Layer: |
High Tensile Polyester Fiber Braided (1B) |
Color: |
Red & Green |
Temperature Range: |
-25°C To 80°C |
Length: |
25ft |
Certificates: |
CE, ISO |
Packing: |
Wrapped By OPP Films, Customized Packing Is Available |
Surface: |
Smooth |
Connectors: |
Brass Adapter (G9/16''-18N), B-B Fittings |
Quality Level: |
Grade R |
Process: |
Extrusion |
Standard: |
BS EN559, RMA/CGA IP-7 |
Red Line: |
For Acetylene |
Green Line: |
For Oxygen |
Property: |
Excellent Permeability Resistant |
Warranty: |
1 Year |
Main Market: |
America, South America |

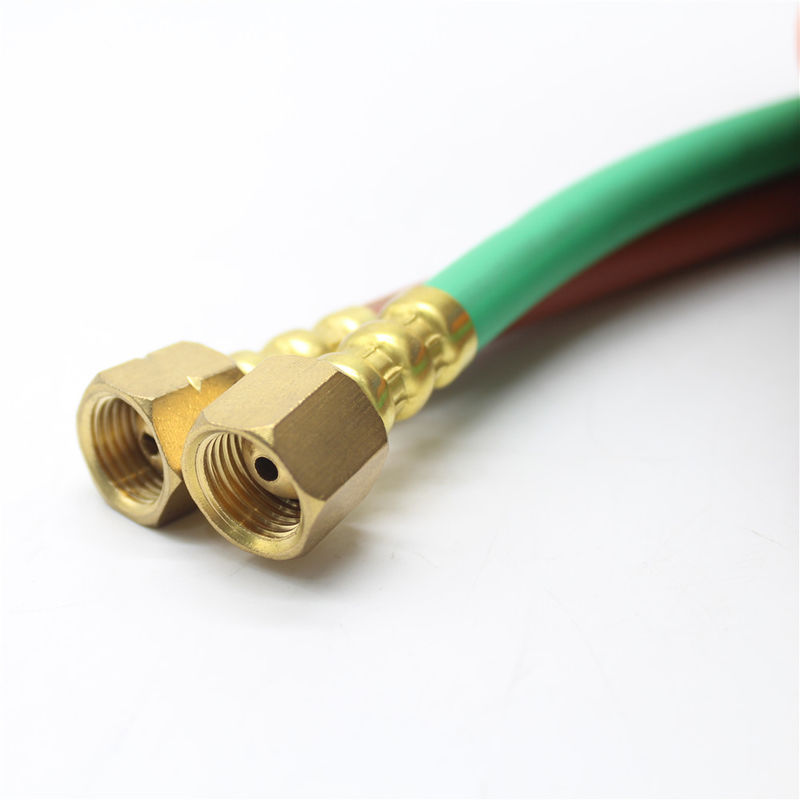

Superior Grade T 1/4'' ID X 25ft Rubber Welding Twin Hose For Fuel Gas
Specifications:
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | FT | cbm/roll | Kg/roll |
| 3/16"&3/16" | 4.8 | 11.5 | 20 | 300 | 60 | 900 | 25 | 0.0048 | 2.5 |
| 3/16"&3/16" | 4.8 | 11.5 | 20 | 300 | 60 | 900 | 50 | 0.009 | 4.0 |
| 3/16"&3/16" | 4.8 | 11.5 | 20 | 300 | 60 | 900 | 100 | 0.018 | 8.0 |
| 1/4"&1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 25 | 0.005 | 2.9 |
| 1/4"&1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 50 | 0.01 | 5.5 |
| 1/4"&1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 | 0.02 | 11 |
| 5/16"&5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 25 | 0.007 | 3.45 |
| 5/16"&5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 50 | 0.012 | 6.8 |
| 5/16"&5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 0.022 | 13.5 |
| 3/8"&3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 25 | 0.009 | 4.3 |
| 3/8"&3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 50 | 0.015 | 8.1 |
| 3/8"&3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 | 0.024 | 15.9 |
Description:
1, Construction: Tube: SBR Synthetic Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM Synthetic Rubber
2, Appearance: Smooth
Green or blue for oxygen rubber hose
Red outer for fuel gas hose, e.g. acetylene
3, Applicable temperature: -25°C to +80°C
4, Standard length: 25FT / 50FT / 100FT
5, Bend radius: 10 times of proper diameter dimension
6, Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offer,
but shall be charged additionally.
7, Trademark: PASSION, OEM is available
8, Property: Anti-ozone aging, Heat-proof aging, Corrosion resistance and excellent flexibility.
9, Quality Standard: EN559 / CGA/RMA IP-7
10, Certificates: CE, SGS, ISO
11, Main market: Middle East, Europe and America
12: Joint Connection:
Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;
Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc
Brass teeth of American system (G9/16 18N), America, Middle East and South America
etc.
Australian system (5/8-18N), Australia etc
Applications:
Green / Blue line- a flexible hose for transporting oxygen for welding and cutting, for arc
welding using shielding gas and related processes.
Red line- a flexible hose for transporting acetylene for
welding and cutting, for arc welding using shielding gas and related processes. Also suitable for
hydrogen, coal gas and carbon
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China
. 13 years manufacturing experience, 50 sets of braiders and 3 production lines.
Free sample can be offered, and we can customize as your request.
Cooperative Brand:
WELDMAN, Max Weld, Goldenflex, SAEFLEX. REDI-WELD
Company Slogan:
PASSION FOR HOSE! PASSION FOR YOU!
