Product Details
Place of Origin: Zhejiang, China
Brand Name: PASSION
Certification: CE, ISO 9001:2008
Model Number: ISO7241-B
Payment & Shipping Terms
Minimum Order Quantity: 400 pcs
Packaging Details: By carton boxes and wooden pallets
Delivery Time: 28 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 15,000 pcs per week
Type: |
Valve In Both Socket And Plug |
Material: |
Carban Steel, Stainless Steel, Brass |
Temperature: |
-20℃ ~ + 100 ℃ |
Size: |
1/4" ~ 1" |
Surface: |
Yellow Or White Zinc |
Thread: |
BSP / NPT |
Part No.: |
ISO7241-B |
Compatibilty: |
Parker 60, |
Sealing Ring: |
NBR Or FKM |
Type: |
Valve In Both Socket And Plug |
Material: |
Carban Steel, Stainless Steel, Brass |
Temperature: |
-20℃ ~ + 100 ℃ |
Size: |
1/4" ~ 1" |
Surface: |
Yellow Or White Zinc |
Thread: |
BSP / NPT |
Part No.: |
ISO7241-B |
Compatibilty: |
Parker 60, |
Sealing Ring: |
NBR Or FKM |
Hydraulic Quick Coupling ISO 7241-B
Features
1. Valve plug can automatically close to prevent leakage when couplings are disconnected.
2. Valve plug can automatically open to let fluid get through when couplings are connected.
3. Key parts are induction hardened for a better durability.
4. Function reliable ball-lock system combines 2 marched half parts together.
5. Male and female couplings are machined from solid steel bar stock.
6. These couplings reach the ISO7241-B standard.
7. The same function and can interchange the following products:
Parker 60 series, Faster HNV series, Aeroquip FD45 series, and Hansen HA series.
Specification of Product
| SPECIFICATIONS | ||||||||
| Body Size (in) | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Rated Pressure(PSI) | 1000 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 |
| Temperature Range(STD Seals) | -20°C ~ +80°C | |||||||
| Standard Seal Materials | Flourocarbon | |||||||
Hydraulic Quick Coupler ISO 7241B Series - Owen Ha...
Pressure Drop-in PSID
| Part No. | LS | φD | HS | A | T |
| H102-01SF | 48 | 24 | 2*14 | 10 | ZG1/8 |
| H102-02SF | 58 | 28 | 2*19 | 12.5 | ZG1/4 |
| H102-03SF | 65 | 35 | 2*21 | 13 | ZG3/8 |
| H102-04SF | 72 | 45 | 2*29 | 14 | ZG1/2 |
| H102-06SF | 88 | 55 | 2*35 | 17 | ZG3/4 |
| H102-08SF | 102 | 65 | 2*41 | 23 | ZG1 |
| H102-10SF | 115 | 79 | 2*54 | 27 | ZG1-1/4 |
| H102-12SF | 124 | 79 | 2*63 | 27 | ZG1-1/2 |
| H102-16SF | 132 | 109 | 2*77 | 30 | ZG2 |
| Part No. | LP | C | HP | A | T |
| H102-01PF | 29 | 19 | 6*14 | 10 | ZG1/8 |
| H102-02PF | 36 | 22.5 | 6*19 | 12.5 | ZG1/4 |
| H102-03PF | 40 | 25 | 6*21 | 13 | ZG3/8 |
| H102-04PF | 44 | 28 | 6*29 | 14 | ZG1/2 |
| H102-06PF | 52 | 36 | 6*35 | 17 | ZG3/4 |
| H102-08PF | 62 | 40 | 6*41 | 23 | ZG1 |
| H102-10PF | 70 | 45 | 6*54 | 27 | ZG1-1/4 |
| H102-12PF | 75 | 49 | 6*63 | 27 | ZG1-1/2 |
| H102-16PF | 80 | 52 | 6*77 | 30 | ZG2 |

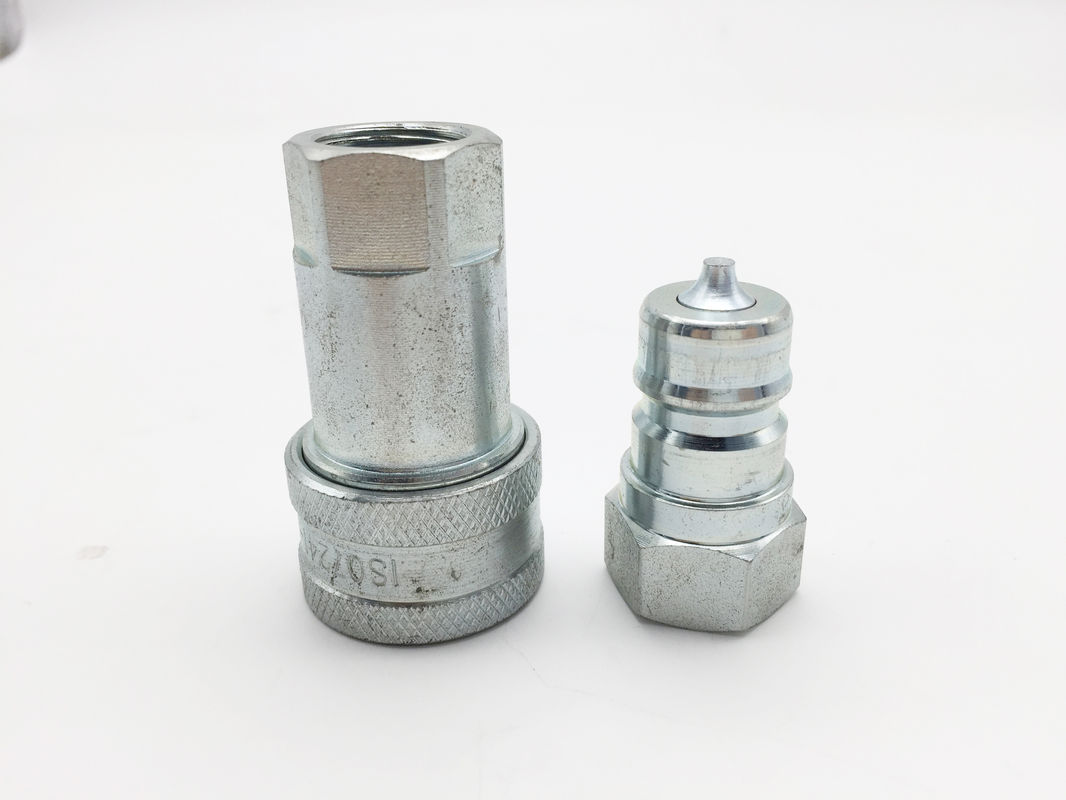

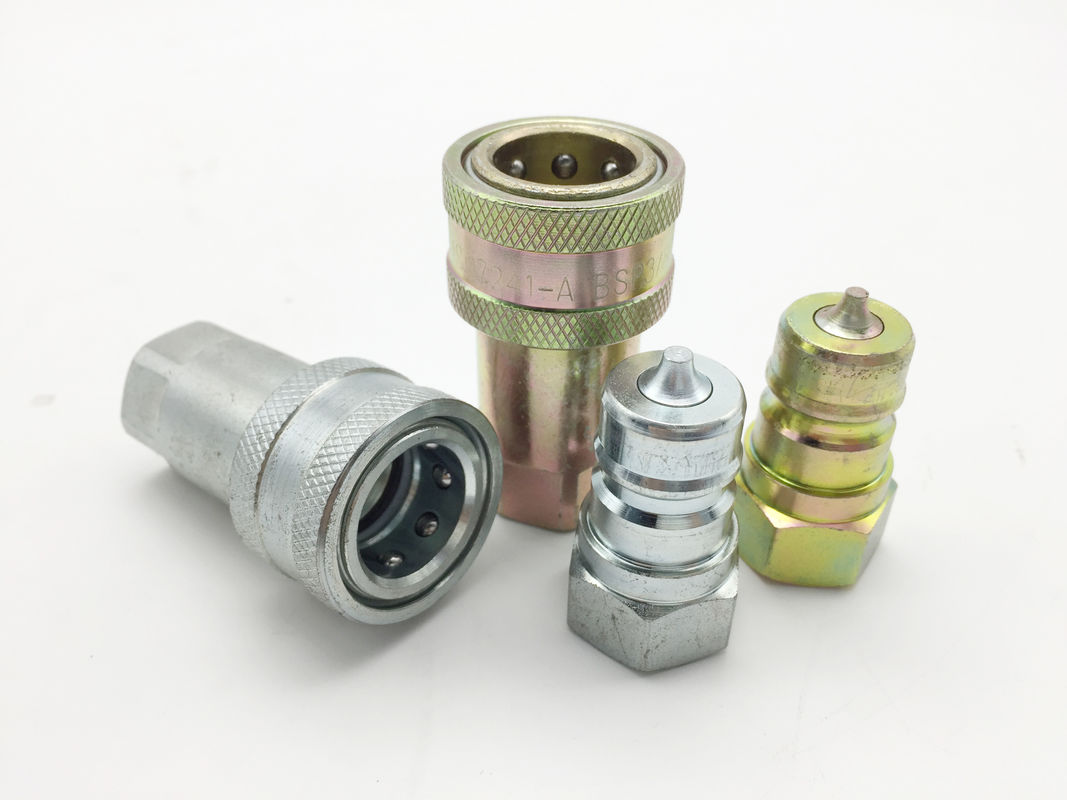

Picture of Product
Packing and Shipping
We ship the goods by express, by air, by sea or according to your requirement.
PLEASE FEEL FREE TO CONTACT US FOR ANY QUESTION!
