Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE, ROHS
Model Number:
ID 5mm
Contact Us
Video

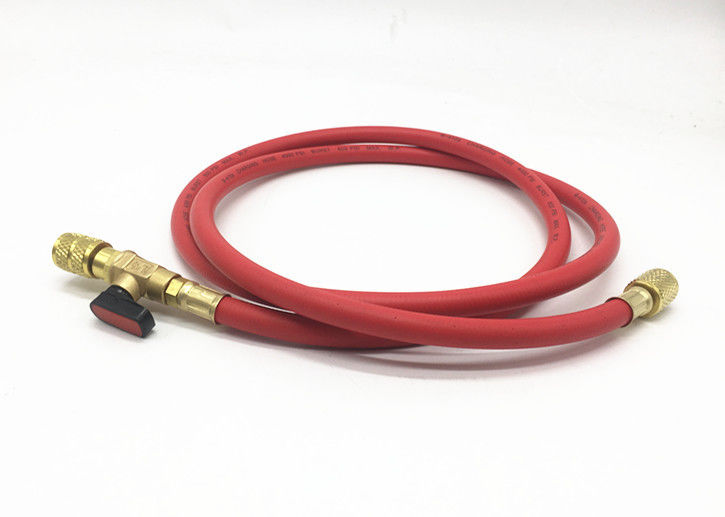

R410A Flexible Refrigerant Charging Hose with Ball Valve for Air Condition
Refrigerant Charging Hose (smooth surface)
Construction: Inner tube: High nitrile-butadience rubber (NBR)
Reinforcement: Polyester fiber spiral line.
Cover: NBR&PVC blends.
Temperature: -30℃ - +100℃
Color: Red, Yellow, Blue, Black.
Specification sheet:
|
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|
mm |
mm |
psi |
psi |
m |
cbm/roll |
kg/m |
|
5 |
11 |
500 |
2500 |
100 |
0.02 |
0.13 |
|
5 |
11 |
600 |
3000 |
100 |
0.02 |
0.13 |
|
5 |
12 |
800 |
4000 |
100 |
0.02 |
0.16 |
Connector:1/4SAE, 1/2"ACME, 5/16"SAE
Refrigerant: R12 R13 R14 R22 R23 R114 R123 R134a R290 R401A R401B R402A R402B R404A R406A R407A R407C R408A R409A R410A R414A R416A R417A R420A R421A R422A R422B R422D R424A R427A R434A R437A R502 R503 R507 R718
Length: 36", 60", 72",96" or customized
R12,R22,R502 Refrigerant Standard: Working pressure:500PSI,Burst pressure:2500PSI.
R134A Refrigerant Standard: Working pressure:600PSI,Burst pressure:3000PSI.
R410A Refrigerant Standard: Working pressure:800PSI,Burst pressure:4000PSI.
Product Photos:
Easy retrofit of existing PLUS hoses with ball valve capabilities.
Valve handle position shows when valve is opened or closed
Flexible length of hose between valve and fitting makes access to tight areas easier
for the 45° end: easy installation in tight areas
Gaskets resist deterioration from existing , HCFC and HFC refrigerants and oils
Available with SealRight fittings on both ends
Low loss anti-blow back SealRight fitting immediately traps refrigerant in the hose when disconnected, helping meet non-venting regulations and prevent finger burns.
1.Refrigerant charging hose with ball valve for manifold gauge r410 r22 r134a
2.Charging working pressure 500PSI-800PSI
3.Connection:1/4SAE
4.Model length:36",60",72".
Usage for refrigerant charging hose:
Conveying refrigerant such as R12, R22, R502 and R134a; applied widely to auto refrigeration, air-conditioning, industrial refrigerators etc; both the inner rubber layer and protective layer are of high level oil resistance of grade RMA-A antiseepage.
About Us:
PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Q:Are you manufacturer?
A:Yes,we are professional manufacturer for refrigeration charging hoses.
Q:What is MOQ for this product in your company?
A:MOQ is 100pcs, if less, please check with us firstly
Q:What delivery time in your company for this product?
A:Delivery time is 30days since order in general. If tight,please check us. We will arrange production for you as per mutual benefit.
Q:What payment is it in your company after order?
A:Payment is TT, other payment can be accepted after confirm.
Q:We are one big company, and want to design our special package for this product, is it ok?
A:Other customized package is welcome.
Q:What shipment is it to our destination?
A:In general, we transfer goods by sea for save cost. If you urgent, we can consider by air.
Passion for hose, Passion for you.
Send your inquiry directly to us
