Compact Stainless Steel Hydraulic Hose Fitting 22611 With Female BSP Thread

Compact Stainless Steel Hydraulic Hose Fitting 22611 With Female BSP Thread

hydraulic hose end fittings

hydraulics hoses and fittings

Place of Origin:

Zhejiang

Brand Name:

PASSION

Certification:

CE, ISO

Model Number:

22611

Contact Us
Request A Quote
Product Details
Connection:
Insert
Structure:
Universal
Material:
Stainless Steel 316
Standard:
Yonghua
Thread:
BSP Female
Color:
Silver
Flexible Or Rigid:
Rigid
Size:
3/16" To 2"
Highlight:

hydraulic hose end fittings

,

hydraulics hoses and fittings

Payment & Shipping Terms
Minimum Order Quantity
500 pcs
Price
Negotiable.
Packaging Details
Carton boxes and wooden boxes.
Delivery Time
30 days.
Payment Terms
L/C, T/T, D/P, MoneyGram, PayPal, etc.
Supply Ability
100,000 pcs per month
Product Description

Stainless Steel Hydraulic Fitting 22611 with Female BSP Thread

We are specialized in hydraulic hose fittings, ferrules, adaptors, couplings, stainless steel fittings & brass fittings

1. Hydraulic Hose Fittings:
1). BSP, JIC, NPT, ORFS, SAE male, female fitting, straight & elbow, nuts, ferrules
2). Metric male, female fitting, straight & elbow, nuts, ferrules
3). Reusable fittings
4). One-piece fittings

2. Hydraulic Adaptors:
1). BSP, JIC, NPT male, female adaptor, 3 ways tee 4 ways tee
2). ORFS, SAE, Metric male, female fitting, straight & elbow, nuts, ferrules

3.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:
NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure

The SAE J516 standard for hydraulic fittings specifies that fittings shall be plated with a material that passes a 72-hour salt spray test in accordance with ASTM B117.
Our fitting can stand for at least 96 hours.





Catalogue of Hydraulic Fitting BSP Female 2611.pdf...



Specification

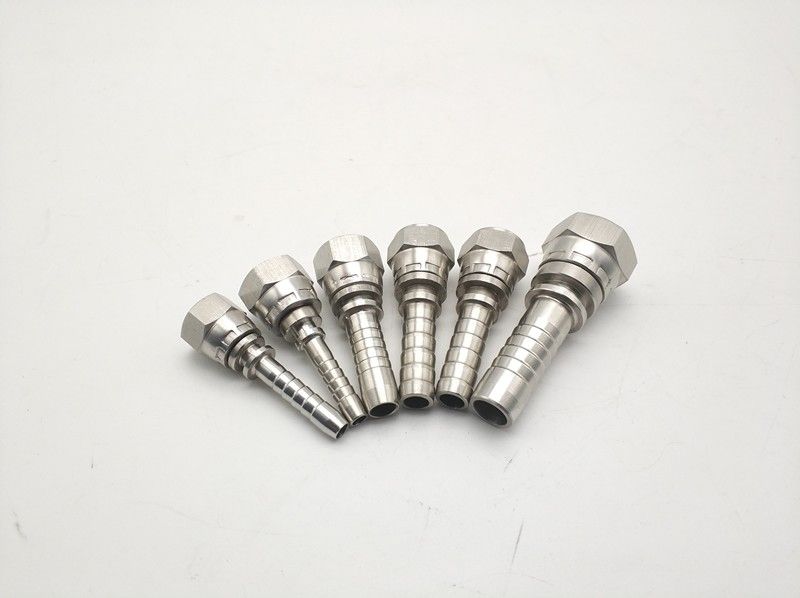

Compact Stainless Steel Hydraulic Hose Fitting 22611 With Female BSP Thread 0







Description Part No. Thread E Hose Bore Dimensions
DN DASH A C S2
BSP FEMALE 60 DEGREE CONE 22611-02-03 G1/8"X28 5 03 15 5.5 14
22611-02-04 G1/8"X28 6 04 15 5.5 14
22611-04-03 G1/4"x19 5 03 17 5.5 19
22611-04-04 G1/4"x19 6 04 18 5.5 19
22611-04-05 G1/4"x19 8 05 18 5.5 19
22611-04-06 G1/4"x19 10 06 18 5.5 19
22611-06-04 G3/8"x19 6 04 19 6.3 22
22611-06-05 G3/8"x19 8 05 19 6.3 22
22611-06-06 G3/8"x19 10 06 19.5 6.3 22
22611-06-08 G3/8"x19 12 08 19.5 6.3 22
22611-08-06T G1/2"x14 10 06 21 7.5 27
22611-08-08 G1/2"x14 12 08 21.5 7.5 27
22611-10-08 G5/8"x14 12 08 22 9.5 30
22611-10-10 G5/8"x14 16 10 23.5 9.5 30
22611-12-08T G3/4"x14 12 08 22 10.9 32
22611-12-10 G3/4"x14 16 10 24 10.9 32
22611-12-12 G3/4"x14 20 12 24 10.9 32
22611-16-12T G1"x11 20 12 24 11.7 41
22611-16-14 G1"x11 22 14 26 11.7 41
22611-16-16 G1"x11 25 16 27 11.7 41
22611-20-16T G1.1/4"x11 25 16 27.5 11 50
22611-20-20W G1.1/4"x11 32 20 30.5 11 50
22611-24-20T G1.1/2"x11 32 20 32 13 55
22611-24-24W G1.1/2"x11 40 24 32 13 55
22611-32-24T G2"x11 40 24 30 16 70
22611-32-32W G2"x11 50 32 31.9 16 70



Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 26712-**-**.




BSP Hydraulic Hose Fitting 22611

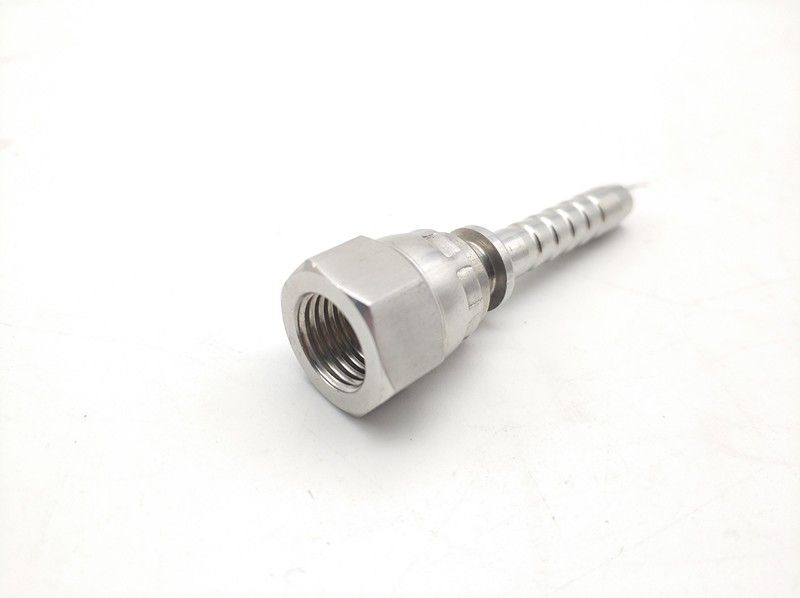

Picture of Product

Compact Stainless Steel Hydraulic Hose Fitting 22611 With Female BSP Thread 1



Production Flow





The material of ferrule: Stainless Steel 304, 316



All of our machines are CNC machines, sizes are more stable and accurate than instrumentation machine.









Packing of Fittings and Ferrules


Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.

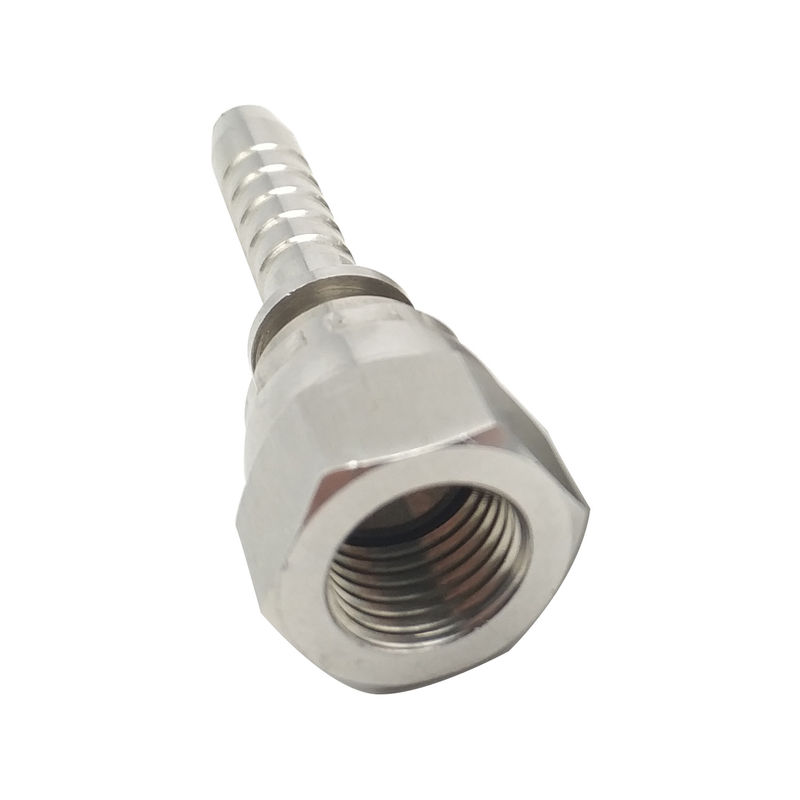

Compact Stainless Steel Hydraulic Hose Fitting 22611 With Female BSP Thread 2





FAQ



Q: Is it stainless steel fitting?

A: Yes, if you need carbon steel one, we also can produce it for you.

Q: Is it standard hydraulic fitting?

A: Yes, all of our hydraulic fittings are standard parts.Each of hydraulic hose can find our hydraulic fittings to fit for.

Q: Can you print model and our brand on the ferrule and fitting?

A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.

Q: Can you produce fitting according to sample or drawings?

A: Yes, we can produce fitting according to your samples or drawings.

Q: Can you galvanize zinc in golden color for carbon steel fitting?

A: Yes, it can be made in golden color, anyway, we suggest to use siliver zinc plated fitting because it is ROHS compliant.

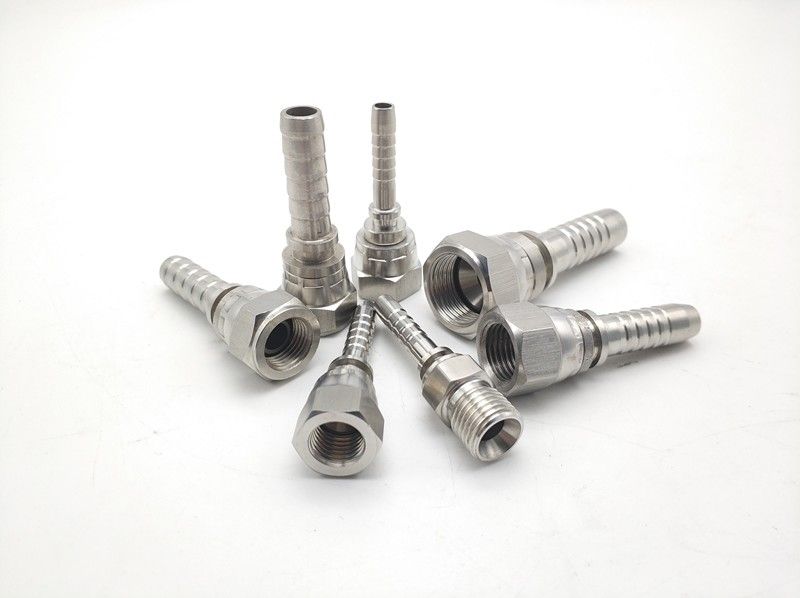

Application



Compact Stainless Steel Hydraulic Hose Fitting 22611 With Female BSP Thread 3
