JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance

JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance

hydraulic hose pipe fittings

hydraulics hoses and fittings

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

JIC FEMALE

Contact Us

Request A Quote
Product Details
Part Number:
26711SS
Size Of Hose:
3/16” To 2”
Appearance:
304 Stainless Steel
Color:
Silver
Material:
304 Stainless Steel
Standard:
Yonghua
Technic:
Hot Forge
Machine:
CNC
Payment & Shipping Terms
Minimum Order Quantity
300pcs
Price
Negotiated
Packaging Details
Cartons and wooden cases
Delivery Time
Within 20 to 30 days after we receive advance payment
Payment Terms
T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability
60,000 pcs per month
Product Description

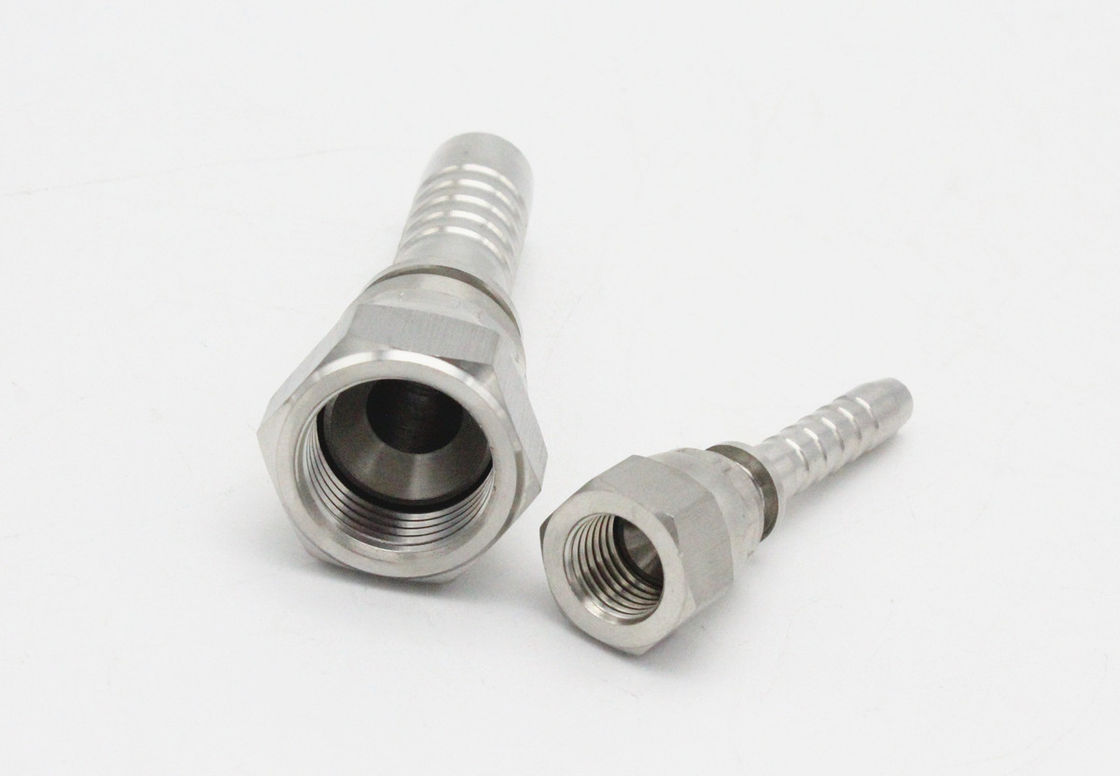

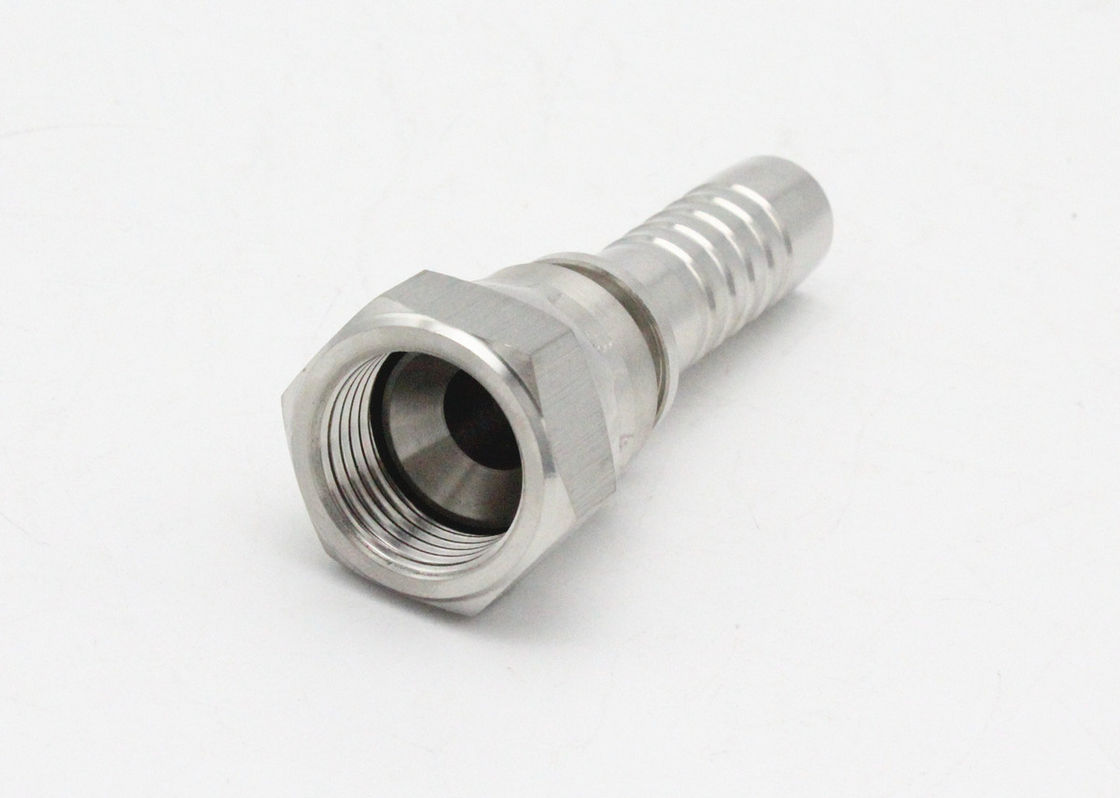

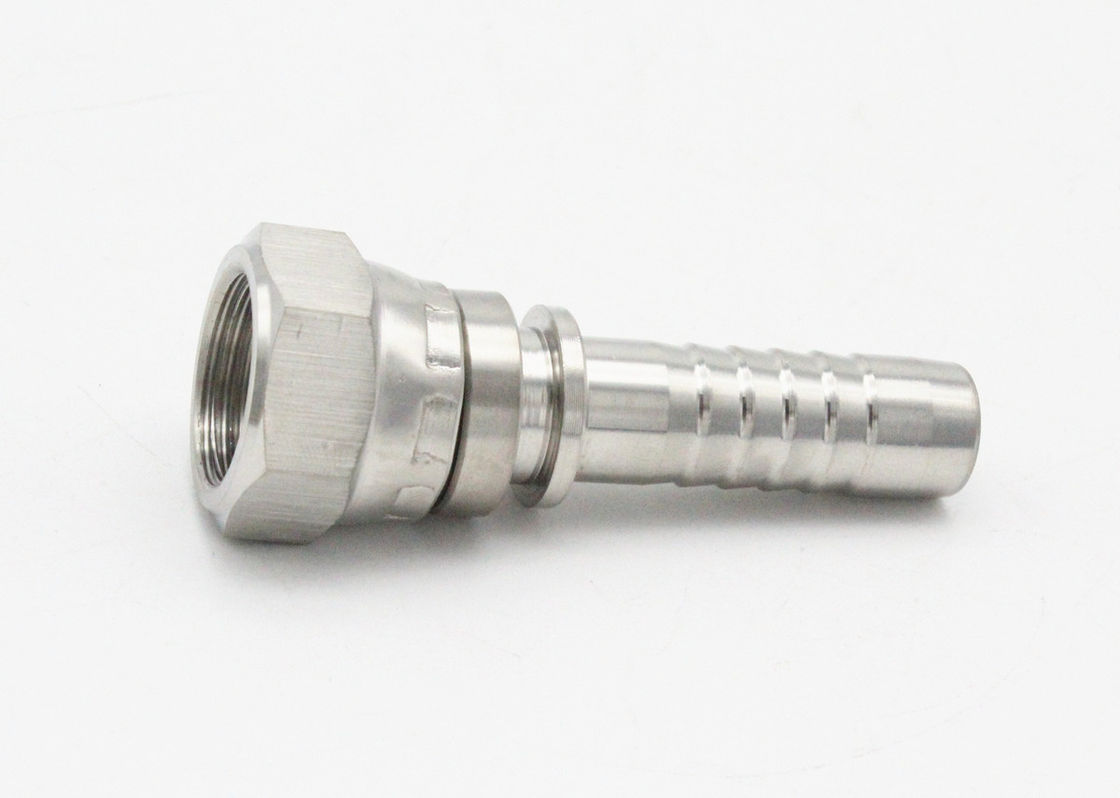

304 Stainless Steel JIC Female Thread Hydraulic Hose Fitting




Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.



Standard: Yonghua

Technology: Hot forge

Material: Stainless steel 304





Specifications:



Catalogue of Straight JIC Female Fitting.pdf





JIC FEMALE 74 DEGREE CONE SEAT





                                JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance 0  JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance 1

                                              26711                                         26711-T


Part No. Thread E Hose Bore Dimensions
DN DASH A C S2
26711-04-03 7/16"x20 5 03 14.5 9 15
26711-04-04 7/16"x20 6 04 15 9 15
26711-05-04 1/2"x20 6 04 15.5 9.5 17
26711-05-05 1/2"x20 8 05 15.5 9.5 17
26711-05-06 1/2"x20 10 06 15.5 9.5 17
26711-06-04 9/16"x18 6 04 15.5 10.5 19
26711-06-05 9/16"x18 8 05 15.5 10.5 19
26711-06-06 9/16"x18 10 06 15.5 10.5 19
26711-06-08 9/16"x18 12 08 16 10.5 19
26711-08-06 3/4"x16 10 06 17.5 11 24
26711-08-08 3/4"x16 12 08 18 11 24
26711-08-10 3/4"x16 16 10 19.5 11 24
26711-10-08 7/8"x14 12 08 18.5 13 27
26711-10-10 7/8"x14 16 10 20 13 27
26711-10-12 7/8"x14 20 12 20 13 27
26711-12-08T 1.1/16"x12 12 08 19 15 32
26711-12-10 1.1/16"x12 16 10 21.5 15 32
26711-12-12 1.1/16"x12 20 12 21.5 15 32
26711-12-16 1.1/16"x12 25 16 23 15 32
26711-14-12 1.3/16"x12 20 12 21.5 15 36
26711-16-12T 1.5/16"x12 20 12 18.5 16 41
26711-16-16 1.5/16"x12 25 16 23 16 41
26711-16-20 1.5/16"x12 32 20 24 16 41
26711-20-16T 1.5/8"x12 25 16 23 17 50
26711-20-20W 1.5/8"x12 32 20 26 17 50
26711-24-20W 1.7/8"x12 32 20 26.5 20 55
26711-24-24W 1.7/8"x12 40 24 26.5 20 55
26711-32-20T 2.1/2"x12 32 20 27 23.5 75
26711-32-32T 2.1/2"x12 50 32 27 23.5 75



 Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 26712-**-**.







JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance 2






Production Flow:



All of our machines are CNC machines



JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance 3






Packgaing and Shipping:



Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.



JIC Female Thread Hydraulic Hose End Fittings With High Wear Resistance 4
