Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 1/4" to 1"

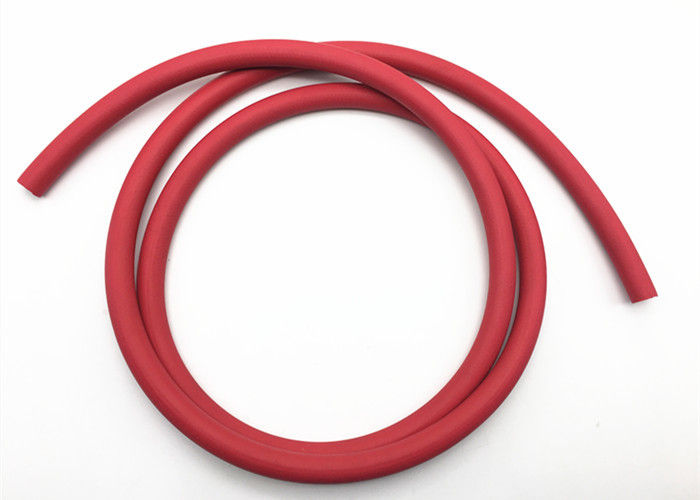

ID 1/4" To 1" Industry Smooth / Groove Surface Rubber Water Hose for WP 20Bar

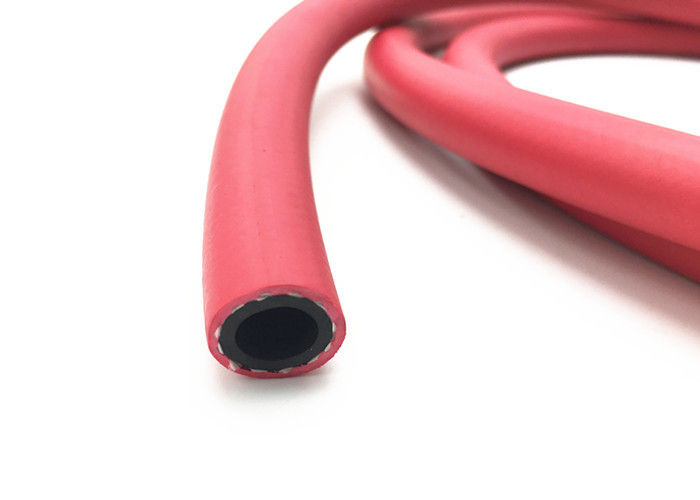

Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: Groove surface NR & SBR synthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Standard length: 50m, 100m.
Surface: Smooth Surface, Cloth-wrapped surface, Groove surface
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Hose Specification:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
HPR1 |
3/16" |
5 |
12 |
20 |
300 |
60 |
900 |
100 |
0.012 |
0.08 |
|
HPR2 |
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.0256 |
0.17 |
|
HPR3 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.0271 |
0.22 |
|
HPR4 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.036 |
0.26 |
|
HPR5 |
1/2" |
13 |
22 |
20 |
300 |
60 |
900 |
100 |
0.0634 |
0.4 |
|
HPR6 |
5/8" |
16 |
25 |
20 |
300 |
60 |
900 |
50 |
0.1095 |
0.45 |
|
HPR7 |
3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.146 |
0.7 |
|
HPR8 |
1" |
25 |
36 |
20 |
300 |
60 |
900 |
50 |
0.171 |
0.85 |
Competitive Advantage:
PASSION® Rubber air water hose, with groove surface, is popular in Middle Eaat market, such as Saudi Arabia. The hose is made of non-recycled rubber, according
to ISO-2398 standard. Hangzhou Paishun can crimp the specified fittings and quick released coupling on
the rubber air water hose. If you have some special request of size, Hangzhou Paishun can also customize for you.
FAQ:
A: We are factory.
A: Generally it is 1-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
