ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600

ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600

  • High Light

    ISO7241-A Hydraulic Quick Coupler

    ,

    Parker 6600 Hydraulic Quick Coupler

    ,

    BSP hydraulic quick connect coupler

  • Type
    Valve In Both Socket And Plug
  • Material
    Carban Steel, Stainless Steel, Brass
  • Temperature
    -20℃ ~ + 100 ℃
  • Size
    1/4" ~ 1"
  • Surface
    Yellow Or White Zinc
  • Thread
    BSP / NPT
  • Part No.
    ISO7241-A
  • Compatibilty
    Parker 6600
  • Sealing Ring
    NBR Or FKM
  • Place of Origin
    Zhejiang, China
  • Brand Name
    PASSION
  • Certification
    CE, ISO 9001:2008
  • Model Number
    ISO7241-A
  • Minimum Order Quantity
    400 pcs
  • Packaging Details
    By carton boxes and wooden pallets
  • Delivery Time
    28 days after payment
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram, PayPal
  • Supply Ability
    15,000 pcs per week

ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600


Hydraulic Quick Coupling ISO 7241-A

Features

1. Valve plug can automatically close to prevent leakage when couplings are disconnected.

2. Valve plug can automatically open to let fluid get through when couplings are connected.

3. Key parts are induction hardened for a better durability.

4. Function reliable ball-lock system combines 2 marched half parts together.

5. Male and female couplings are machined from solid steel bar stock.

6. These couplings reach the ISO7241-A standard.

7. The same function and can interchange the following products:
    Parker 6600 series, Faster HNV series, Aeroquip 5600 series, and Hansen HA 15000 series.


Specification of Product


SPECIFICATIONS
Body Size (in) 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Rated Pressure(PSI) 5000 4000 4000 3000 3000 3000 2000 2000
Rated Flow(GPM) 3 6 12 28 50 88 220 224
Temperature Range(STD Seals) -20°C ~ +80°C
Standard Seal Materials Flourocarbon






Pressure Drop-in PSID

ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600 0


 ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600 1

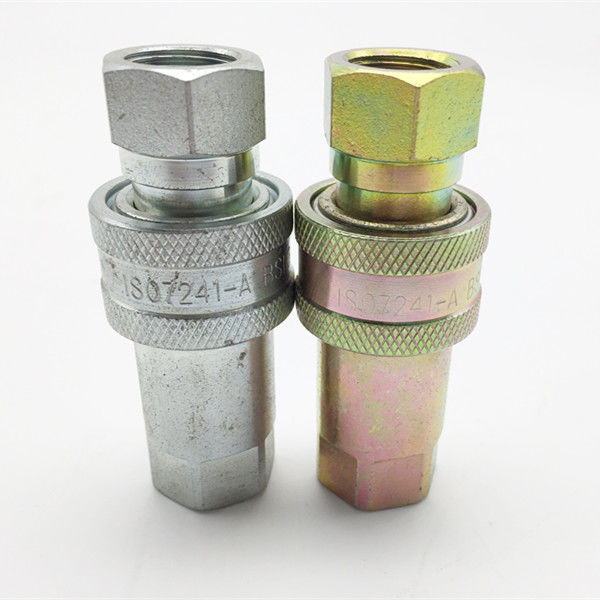

Picture of Product


Packing and Shipping
We ship the goods by express, by air, by sea or according to your requirement.

ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600 2

ISO 7241-A Hydraulic Quick Coupler Compatibllity Parker 6600 3
