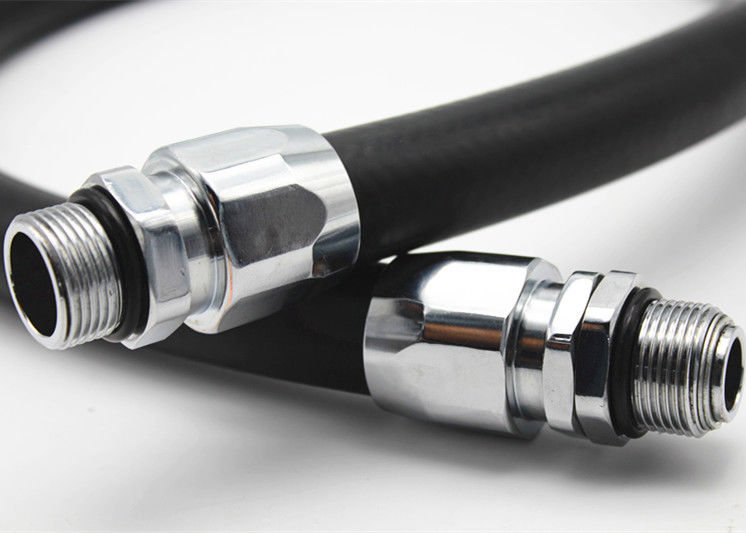

4M / Pce  Fuel Dispenser Hose With Fixed or Rotary Terminals , Petrol Station Braided Fuel Hose

4M / Pce Fuel Dispenser Hose With Fixed or Rotary Terminals , Petrol Station Braided Fuel Hose

  • High Light

    flexible fuel hose

    ,

    fuel delivery hose

  • Tube
    NBR
  • Cover
    EPDM
  • Reinforcement
    Single High-strength Wire Braided.
  • Sizes
    5/8", 3/4", 1"
  • Application
    Fuel Dispenser Gas Station
  • Standard Length
    20m, 50m (Random Length)
  • Color
    Black, Blue, Red And Green Etc
  • Working Pressure
    30 Bar
  • Bursting Pressure
    120bar
  • Flexibility
    Very Soft And Flexible
  • Export To Countries
    Columbia, Brazil, Spain, UK, Austrail, New Zealand, New Zealand, The Philippines, Thailand, UAE, Iran, Pakistan
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    1", 3/4", 5/8"
  • Minimum Order Quantity
    1000m
  • Price
    3/4" - 3.26usd/m; 1" - 3.90usd/m.
  • Packaging Details
    Well packed by good and thick braided strap
  • Delivery Time
    within 25 days after we have received your advanced payment
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300000m/month

4M / Pce Fuel Dispenser Hose With Fixed or Rotary Terminals , Petrol Station Braided Fuel Hose

To visitor: If you are a distributor and Retailer of GASOLINE DISPENSER HOSE or Supplier of spare parts to petroleum companies, you are welcome to contact us for a product selection form and price list.



We have successfully helped our partners in many countries to develop the market for GASOLINE DISPENSER HOSE, have a wealth of industry experience, and look forward to your enquiry. If you can describe your business ideas through an inquiry, we have more commercial support resources specifically for distributors.











4M / Pce Fuel Dispenser Hose With Fixed or Rotary Terminals , Petrol Station Braided Fuel Hose





Hose Constructure:



Tube: NBR

Reinforcement: Single High-strength wire braided.

Cover: EPDM



Temperature: -40℃ to +100℃



Color: Black, Yellow, Red, Blue, Green or according to your needs.



Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.



Standard length: 20m, 50m (Random Length)



Superiority:  Very Good Flexibility, will not get hard easily even after using for a long; Strong ageing resistance; Not easy to creak even under high environment temperature; Good gasoline resistance; Excellent anti-static electricity; Safe; At the same quality level as Good year.



Quality warranty: The Quality warranty for our Hose is 12months.

But in real application, if you use it under correct conditions, there's no problem to use for 24months.



Specifications

Item code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
  inch mm mm bar psi bar psi m cbm/roll kg/m
HPR-1  5/8’’ 15.9 25.4 30 450 120 1740 50 0.07 0.57
HPR-2  3/4’’ 19 28 30 450 120 1740 50 0.08 0.65
HPR-3  1’’ 25 35.5

30

450 120 1740 50 0.124 0.82
