Gasoline Resistant High Pressure Rubber Hose Fuel Dispenser Parts In Black

Gasoline Resistant High Pressure Rubber Hose Fuel Dispenser Parts In Black

  • High Light

    flexible fuel hose

    ,

    fuel delivery hose

  • Tube
    NBR
  • Cover
    NBR / PVC
  • Reinforcement
    Single Steel Wire Braided Reinforcement
  • Sizes
    5/8", 3/4", 1"
  • Application
    Fuel Dispenser In Gas Station
  • Standard Length
    50m/ Roll
  • Color
    Blue, Black, Red, Yellow And Green Etc
  • Working Pressure
    30 Bar
  • Bursting Pressure
    120bar
  • Flexibility
    Very Soft And Flexible
  • Export To Countries
    Columbia, Brazil, Spain, UK, Austrail, New Zealand, New Zealand, The Philippines, Thailand
  • Superiorities
    Flexible / UV Resistance / Ozone Resistance / Excellent Aging Resistance
  • Hose Warranty
    1 Year
  • Place of Origin
    Zhejiang (CHINA)
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    3/4", 5/8", 1"
  • Minimum Order Quantity
    500m
  • Price
    3/4" - 2.69USD/m.
  • Packaging Details
    Well packed by good and thick braided strap for export
  • Delivery Time
    within 25 days after we have received your advanced payment
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    150000m/month

Gasoline Resistant High Pressure Rubber Hose Fuel Dispenser Parts In Black

To visitor: If you are a distributor and Retailer of GASOLINE DISPENSER HOSE or Supplier of spare parts to petroleum companies, you are welcome to contact us for a product selection form and price list.



We have successfully helped our partners in many countries to develop the market for GASOLINE DISPENSER HOSE, have a wealth of industry experience, and look forward to your enquiry. If you can describe your business ideas through an inquiry, we have more commercial support resources specifically for distributors.





Gasoline 5/8", 3/4" and 1" Black Rubber Fuel Dispenser Hose



Refer Standard: EN 1360:2005



Hose Construction -


Tube: NBR
Reinforcement: Single High-strength wire braided.
Cover: NBR / PVC

Temperature: -40ºC to +70ºC

Color: Black, Blue, Red and Green etc

Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

Standard length: 20m, 50m (Random Length)



Hose Couplings: Swivel / Non Swivel BSPP / BSPT / NPT Couplings.



Hose Assembly: When install the hose couplings to hose, it is important to make sure the steel wire touchs the couplings, so the hose assembly has electrical conductivity.

How to test the electrical conductivity?  - connecting the hose assembly to an ammeter, to check if there's number on anmeter.



Specifications:



Item code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
  inch mm mm bar psi bar psi m cbm/roll kg/m
HPR-1  5/8’’ 15.9 25.4 30 450 120 1740 50 0.07 0.57
HPR-2  3/4’’ 19 28 30 450 120 1740 50 0.08 0.65
HPR-3  1’’ 25 35.5

30

450 120 1740 50 0.124 0.82

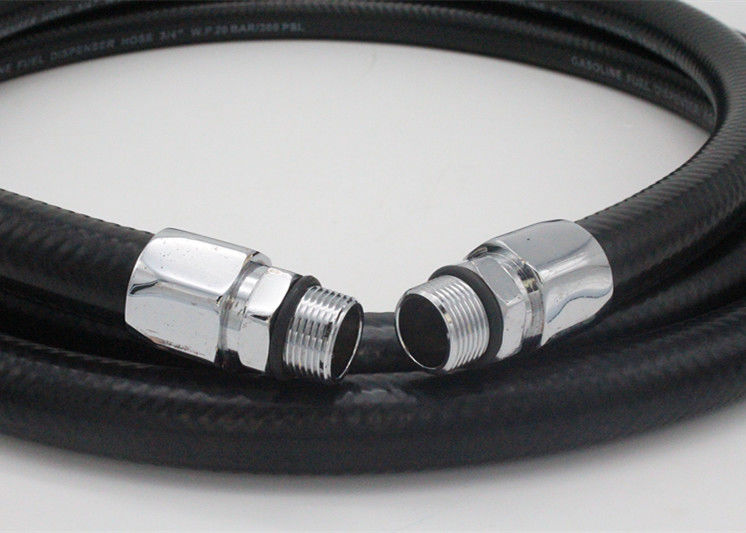

Hose Picture:



Gasoline Resistant High Pressure Rubber Hose Fuel Dispenser Parts In Black 0

Gasoline Resistant High Pressure Rubber Hose Fuel Dispenser Parts In Black 1

Gasoline Resistant High Pressure Rubber Hose Fuel Dispenser Parts In Black 2

Hose Superiorities:

1. the revolutionary new rubber compound material makes the hose extremely resistant to Ozone.

2. excellent aging resistance, ozone resistance and crack resistance.

3. with color fast smooh good suface.

4. quality hose construction, quality assembly.

5. very flexible and light in weight.

6. excellent UV resistance
