Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring

Basic Infomation
Place of Origin: Zhejiang / China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: 20511-24-08T
Minimum Order Quantity: 500pcs
Price: Negotiated
Packaging Details: Cartons and wooden cases
Delivery Time: Within 20 to 30 days after we receive advance payment
Payment Terms: T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability: 60,000 pcs per month

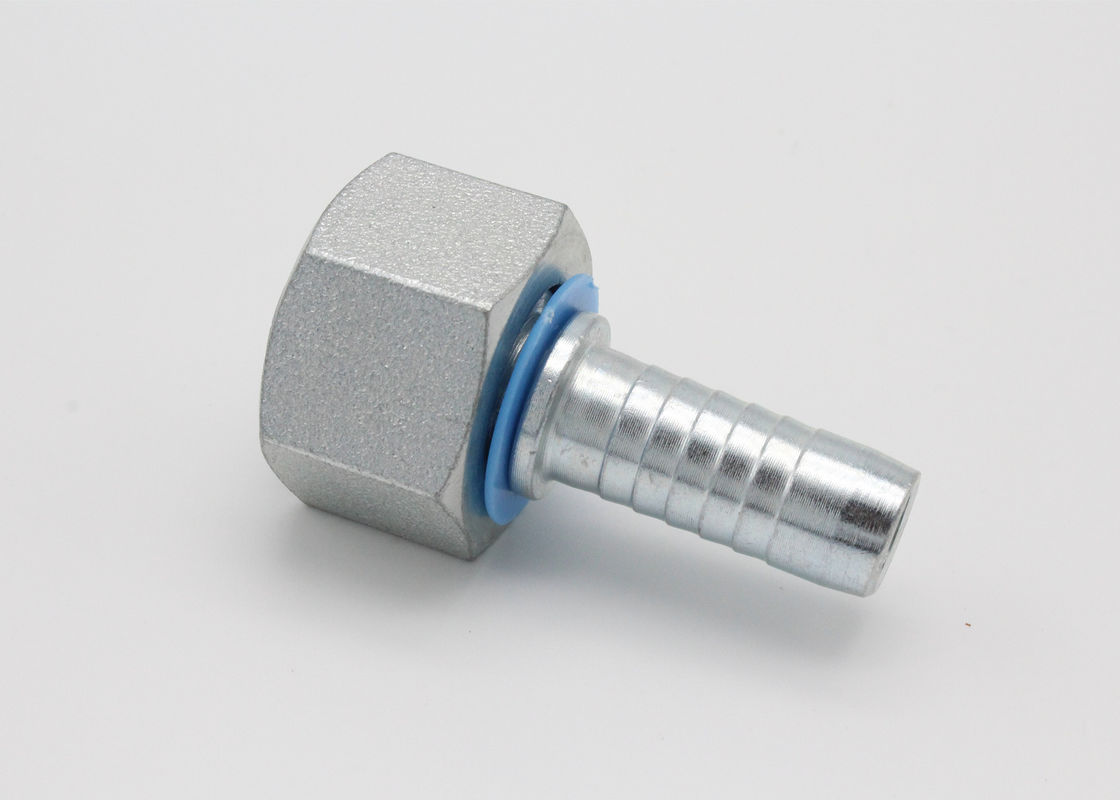

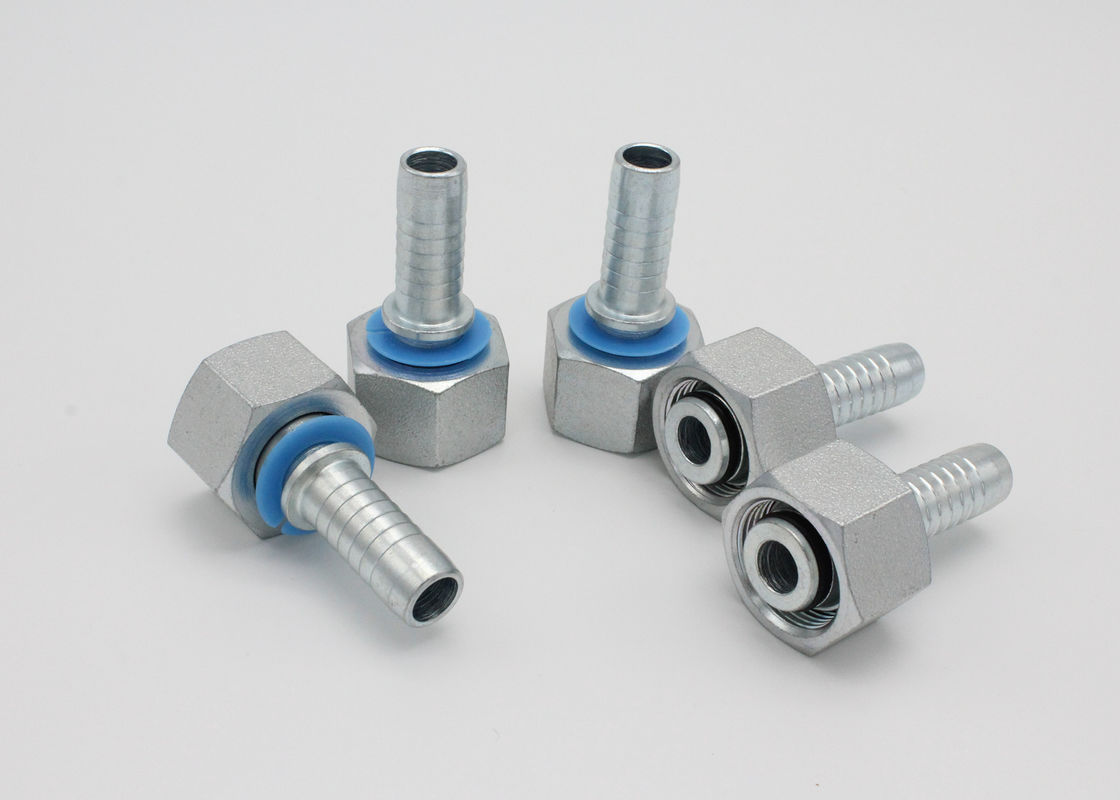

Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring




Applications:

High pressure hose connector is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.





Specifications:



METRIC FEMALE 24 DEGREE CONE O-RING H.T.ISO 12151-2 - DIN 3865





                        Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ringSteel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring









                                              20511                                        20511-T


Part No. Thread E Hose Bore THBE O.D. Dimensions   O-ring
DN DASH A C S1
20511-14-04 M14X1.5 6 04 6 29 1.5 19 O04.5X1.5
20511-16-04 M16X1.5 6 04 8 29 1.5 22 O06.5X1.5
20511-16-05 M16X1.5 8 05 8 29 1.5 22 O06.5X1.5
20511-18-04T M18X1.5 6 04 10 25.5 1.5 22 O08.0X1.5
20511-18-06 M16X1.5 10 06 10 29 2 24 O08.0X1.5
20511-20-06T M20X1.5 10 06 12 26.5 2.5 24 O10.0X1.5
20511-20-08 M20X1.5 12 08 12 31.5 2.5 27 O10.0X1.5
20511-22-06T M22X1.5 10 06 14 26.5 3 27 O11.0X1.5
20511-22-08 M22X1.5 12 08 14 31.5 2.5 27 O11.0X1.5
20511-24-06T M24X1.5 10 06 16 27 3 30 O13.0X2.0
20511-24-08T M24X1.5 12 08 16 27.5 3 30 O13.0X2.0
20511-30-10T M30X2 16 10 20 33 2.5 36 O16.3X2.4
20511-30-12 M30X2 20 12 20 39 3 36 O16.3X2.4
20511-36-12T M36X2 20 12 25 35 3.2 46 O20.3X2.4
20511-36-14T M36X2 22 14 25 34 3.2 46 O20.3X2.4
20511-42-12T M42X2 20 12 30 37.5 3.9 50 O25.3X2.4
20511-42-16T M42X2 25 16 30 38.5 3.9 50 O25.3X2.4
20511-52-20T M52X2 32 20 38 41.5 4.5 60 O33.3X2.4
20511-52-24T M52X2 40 24 38 41.5 4.5 60 O33.3X2.4


Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 20512-**-**.





Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring




Other Hydraulic Hose Ferrule Fitting Products:


Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring
Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring




Production Flow:



Material of ferrule: carton steel 20#

Material of fitting: carton steel 45#

All of our machines are CNC machines



Steel High Pressure Hose Connector , Metric Female 24 Degree Cone O - ring


Packgaing and Shipping:



Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.
