Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
Flange 87611
Contact Us

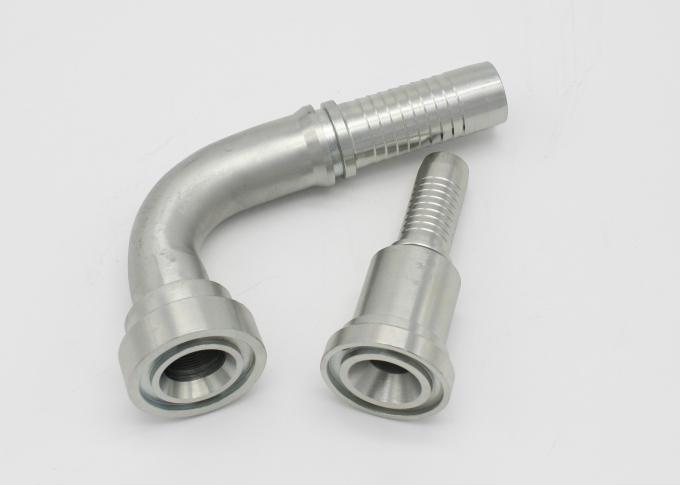

6000 PSI High Pressure SAE Flange Hydraulic Hose Connection For Braied Hydraulic Hose
Descrioption:
It is hydraulic hose fitting 6000 PSI SAE Flange 87611
Applications:
Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,
oilfield, mine, building, transportation and other industries.
Specifications:
SAE FLANGE 6000PSI ISO 12151-3-SAE J516
| Part No. | FLANG SIZE | Hose Bore | Dimensions | ||||
| DN | DASH | A | C | D | L | ||
| 87611-08-08 | 1/2" | 12 | 08 | 47 | 31.7 | 24 | 7.75 |
| 87611-12-10 | 3/4" | 16 | 10 | 50.5 | 41.3 | 32 | 8.76 |
| 87611-12-12 | 3/4" | 20 | 12 | 51 | 41.3 | 32 | 8.76 |
| 87611-16-12 | 1" | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| 87611-16-16 | 1" | 25 | 16 | 57 | 47.6 | 38 | 9.53 |
| 87611-16-20 | 1" | 32 | 20 | 61 | 47.6 | 38 | 9.53 |
| 87611-20-16 | 1.1/4" | 25 | 16 | 65 | 54 | 44 | 10.29 |
| 87611-20-20 | 1.1/4" | 32 | 20 | 66 | 54 | 44 | 10.29 |
| 87611-24-20 | 1.1/2" | 32 | 20 | 75 | 63.5 | 51 | 12.57 |
| 87611-24-24 | 1.1/2" | 40 | 24 | 75 | 63.5 | 51 | 12.57 |
| 87611-32-24 | 2" | 40 | 24 | 85 | 79.4 | 67 | 12.57 |
| 87611-32-32 | 2" | 50 | 32 | 85 | 79.4 | 67 | 12.57 |
Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 87612-**-**.
Competitive Advantage:
-Our factory owns a group of high quality and high-tech professional designers and personnel group. It
possesses a series of the fully automatic computer CNC machine tools and high precision lathes, the
multiple spindles too machines, hexangular tool machines and electric heated bent pipe machines. We
have strictly adopted the professional personnel to carry on the tests and examinations for our products
in order to provide an assurance in the high-quality for all the customers.
-Our factory success fully obtained the international quality certification system: ISO9001:2000 and
domestic production permit of hydraulic hose fittings.
-Our hydraulic hose fittings have been exported to many countries and areas in Europe, America, the
Middle East, the Southeast Asia and the South America.
-The material of our hydraulic hose fittings is good quality carton steel #45.
-Our warehouse is on the second floor, it is better to keep dry of stock of fittings.
-Our hydraulic hose fittings are well packed in cartons and wooden boxes. It is better to avoid fitting
damping.
-The branding can be printed on the fittings.
-The fittings can be customized according to samples or drawings.
- We have crimping machine to crimp hydraulic hose assembly.
- We use new technic to galvanize zinc. It makes carbon steel fitting looks like stainless steel one. The appearance is fantastic.
