EPDM Inner And Cover , PET Braided Automotive Air Conditioning Hoses With Five Layers

EPDM Inner And Cover , PET Braided Automotive Air Conditioning Hoses With Five Layers

Air Conditioner Hose

Air Condition Hose

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

ID 8mm ~ 16mm

Contact Us

Request A Quote
Product Details
Hose Structure:
5 Layers
Inner And Cover:
Synthetic EPDM
Reinforcement:
High Weaving Fiber Braided
Insider Size:
8mm ~ 16mm
Color:
Black
Operating Pressure:
35 Bar, 15 Bar
Printing:
We Can Print As Customers' Requirement.
Application Temperature:
-30℃~125℃
Length:
100m Or 50m/roll
Surface:
Smooth
Payment & Shipping Terms
Minimum Order Quantity
500m
Price
negotiated
Packaging Details
Regular package for air conditioning hose is poly stripes, we can also pack hoses as customers' request.
Delivery Time
According to your quantity, eg. 30 days for a 20' container
Payment Terms
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability
400,000m per month
Product Description

EPDM Inner and Cover , PET Braided Auotomotive Air Conditioning Hose With Five Layers




Specification sheet for LPG gas hose:



Inner Diameter Outer Diameter Working Pressure Burst Pressure Length
inch mm mm bar  psi bar  psi m
  5/16 8 19 35 500 280 4060 100
 13/32 10.5 23 35 500 220 3139 100
  1/2 13 25 35 500 200 2900 100
  5/8 16 28 15 210 180 2610 50





We have been producing large amount of ID 8mm, 10mm, 13mm A/C hose for our customers from the EU.



Black is the standard color for air conditioning hose, and it is the most popular color in the markets.





Usage of air conditioning hose:

   A/C hose is mainly used to convey the medium of refrigerant such as R134a, R12, R22 etc. Applied widely to auto refrigerant in automoblie air conditioning system like bus transit system.




Technical structure and material of air conditioning hose:


This type of A/C hose has five layers, we call this A/C hose as type C air conditioner hose. Inside tube is synthetic EPDM not nylon. PET reinforced, Outer tube is EPDM with black and smooth cover.



Here is regular type of A/C hose with four layers. The inside tube is PA not rubber. We call type E air conditioner hose.




Hose Advantages:



Quality level of air conditioning hose:



Air conditioning hose is one of the rubber hoses that we have been promoting, it meets CE certification. It is one of our high-end hose. Quality is priority and very stable, well-accepted in the markets.



We use good EPDM material, no recycled rubber, flexible, durable, the synthetic rubber content for this hose is up to 40%, which is high in the range of rubber hoses.



Air conditioning hose assembly:



For the fittings of A/C hose, we can supply and crimp, we have a set of machines to crimp the fittings. We have been exporting large amount to Turkey.



Production technology of air conditioning hose:


For the cover, it is mill finish and shining, a layer of PVC is added when making the cover, then  we will do some vulcanization for the cover and remove the PVC layer finally



When making Air conditioning hose, mandrel process is used here. That means there will be a mandel when making inner tube in order to make the inner diameter sizes more precise.



There are some very small holes on the cover for gas evacuation not to let the outer tube burst. All the production skill will guarantee our air conditioning hose to have good performance.

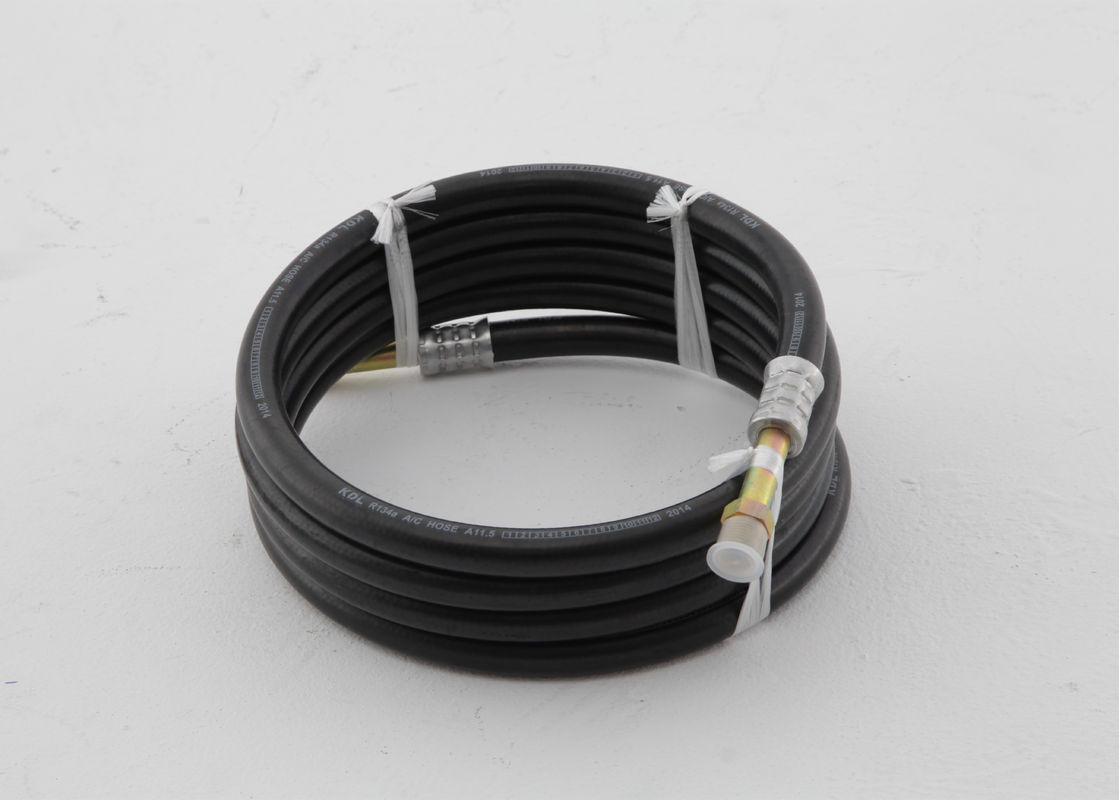

EPDM Inner And Cover , PET Braided Automotive Air Conditioning Hoses With Five Layers 0

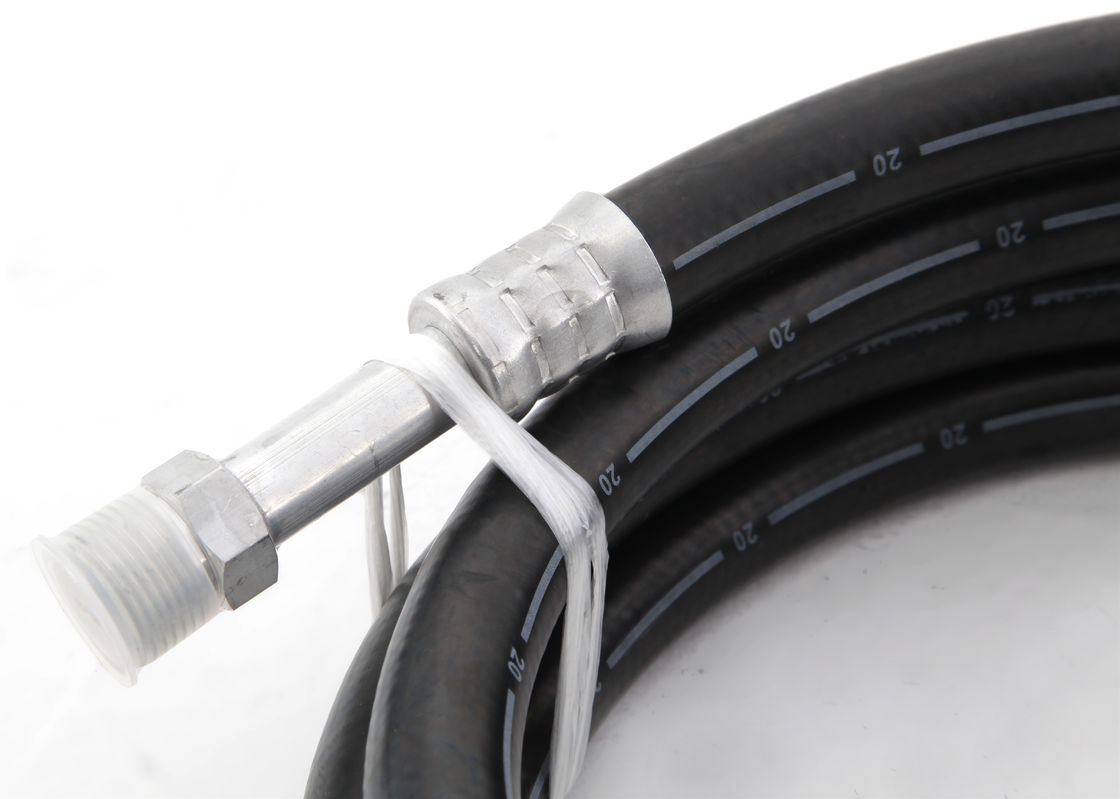

EPDM Inner And Cover , PET Braided Automotive Air Conditioning Hoses With Five Layers 1
