87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI  Flange For Oilfield , Mine Industriy ( 87691 )

87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy ( 87691 )

  • High Light

    hydraulic hose end fittings

    ,

    hydraulic hose pipe fittings

  • Part Number
    87691
  • Size Of Hose
    3/16” To 2”
  • Appearance
    Galvanized Zinc
  • Color
    Silver And Golden
  • Material
    Carbon Steel 45#
  • Standard
    Eaton
  • Technic
    Forge
  • Machine
    CNC
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    Flange 87691
  • Minimum Order Quantity
    500pcs
  • Price
    Negotiated
  • Packaging Details
    Packed in cartons and wooden cases
  • Delivery Time
    Within 20 to 30 days after we receive advance payment
  • Payment Terms
    T/T, L/C, Western Union, Paypal, MoneyGram
  • Supply Ability
    60,000 pcs per month

87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI Flange For Oilfield , Mine Industriy ( 87691 )



87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI  Flange For Oilfield , Mine Industriy





Descrioption:

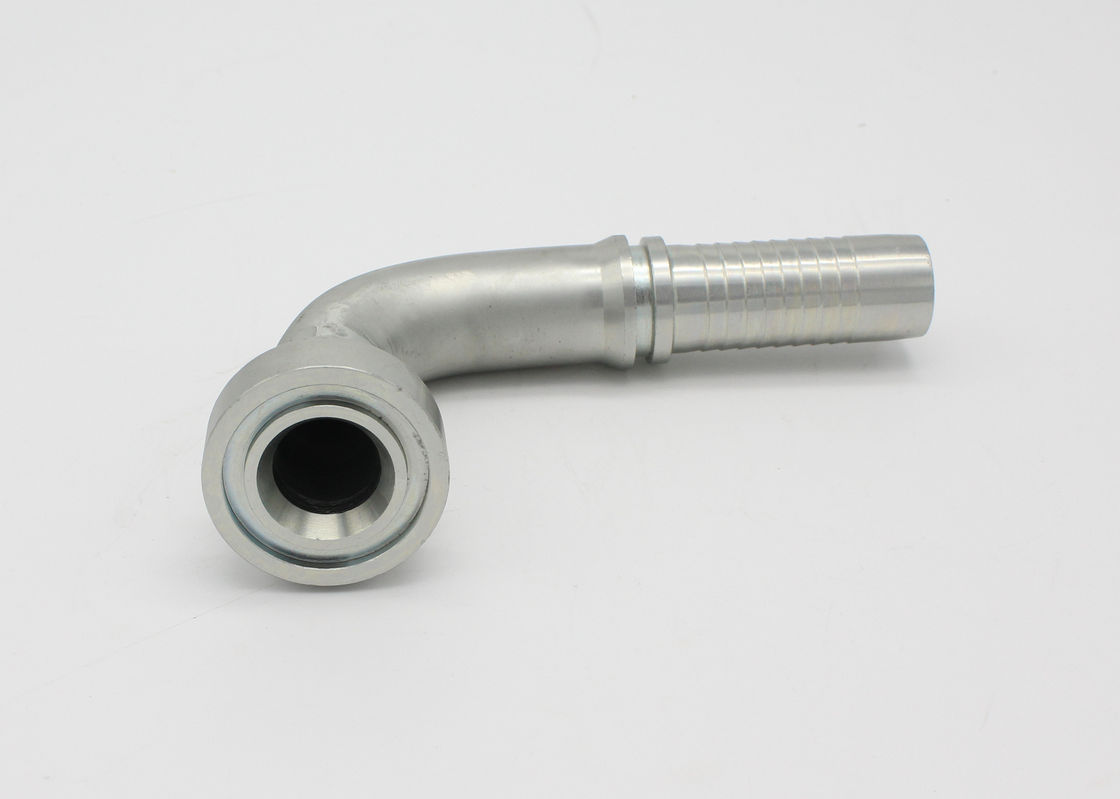

It is hydraulic hose fitting 90 degree SAE Flange 87691.





 Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.




Specifications:



90 DEGREE SAE FLANGE 6000PSI ISO 12151-3-SAE J516



87691 SAE Hydraulic Hose Fittings FLANGE 6000PSI  Flange For Oilfield , Mine Industriy ( 87691 ) 0



Part No. FLANG SIZE Hose Bore Dimensions
DN DASH A C D H L
87691-08-08 1/2" 12 08 41 31.7 24 48 7.75
87691-12-10 3/4" 16 10 56 41.3 32 56.5 8.76
87691-12-12 3/4" 20 12 65.5 41.3 32 66 8.76
89691-16-12 1" 20 12 65.5 47.6 38 69 9.53
87691-16-16 1" 25 16 76.7 47.6 38 74.5 9.53
87691-16-20 1" 32 20 91.5 47.6 38 85.5 9.53
87691-20-16 1.1/4" 25 16 76.7 54 44 78.5 10.29
87691-20-20 1.1/4" 32 20 91.5 54 44 89.5 10.29
87691-24-20 1.1/2" 32 20 91.5 63.5 51 94.5 12.57
87691-24-24 1.1/2" 40 24 109.4 63.5 51 108 12.57
87691-32-24 2" 40 24 109.4 79.4 67 116 12.57
87691-32-32 2" 50 32 131.8 79.4 67 136.3 12.57



Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 87692-**-**.

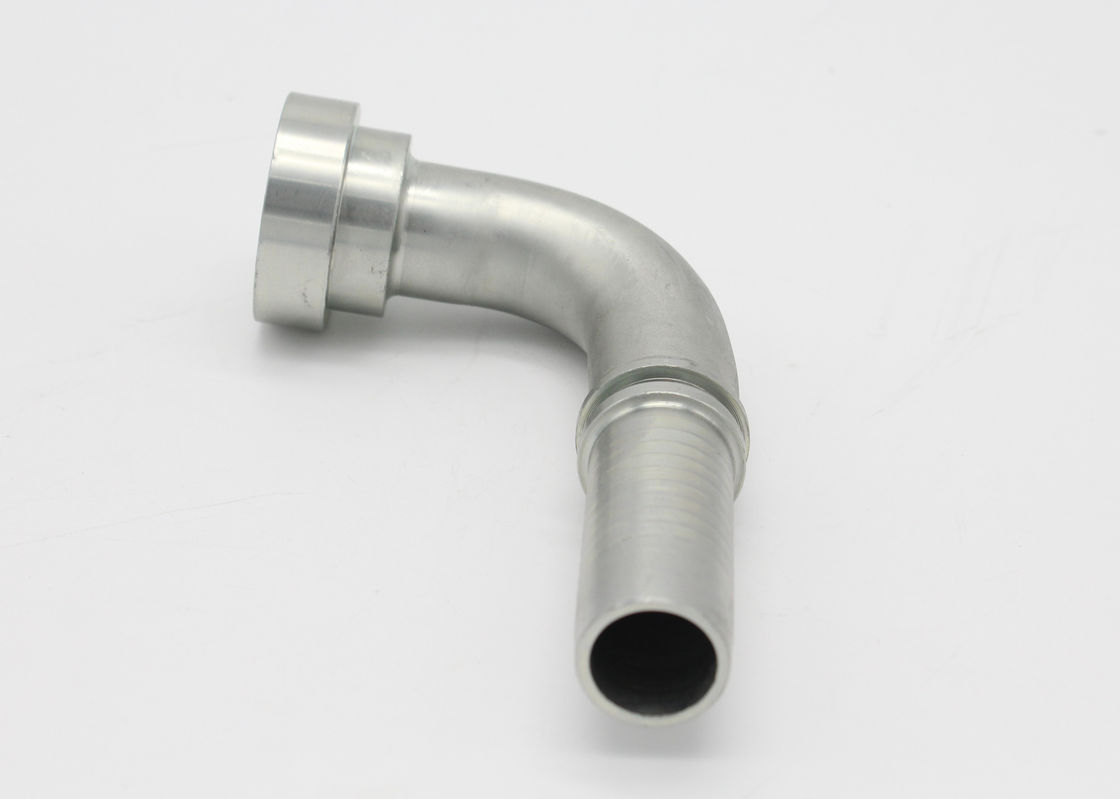

It is hydraulic hose fittings SAE Flange in silver color.
