Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 )

Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 )

  • High Light

    hydraulic hose pipe fittings

    ,

    hydraulics hoses and fittings

  • Part Number
    22641
  • Size Of Hose
    3/16” To 2”
  • Appearance
    Galvanized Zinc
  • Color
    Silver And Golden
  • Material
    Carbon Steel 45#
  • Standard
    Eaton
  • Technic
    Forge
  • Machine
    CNC
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    BSP FEMALE 22641
  • Minimum Order Quantity
    500 pcs
  • Price
    Negotiated
  • Packaging Details
    Packed in cartons and wooden cases
  • Delivery Time
    Within 20 to 30 days after we receive advance payment
  • Payment Terms
    T/T, L/C, Western Union, Paypal, MoneyGram
  • Supply Ability
    60,000 pcs per month

Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 )



Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton





Descrioption:

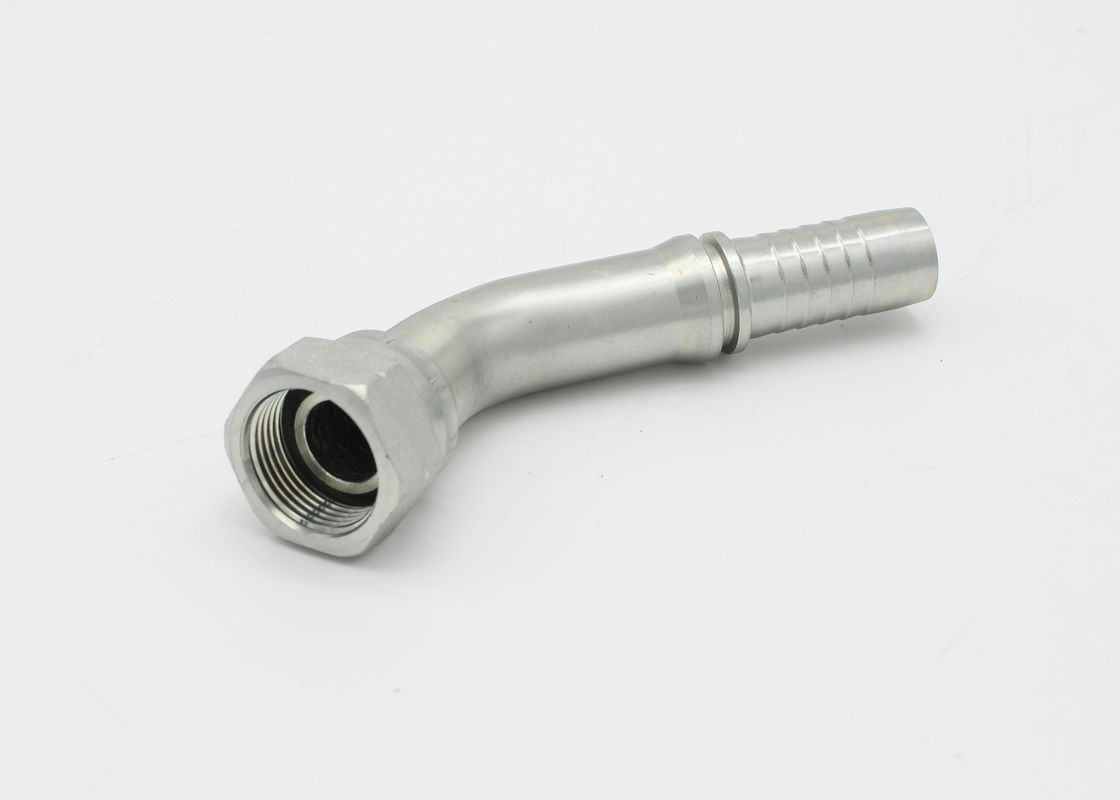

It is hydraulic hose fitting 45 degree BSP Female 60 degree Cone Seal, English style one. Almost all of our customers need this kind of hydraulic fitting.





Applications:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.





Specifications:



 45 DEGREE BSP FEMALE 60 DEGREE CONE



Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 0       Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 1   Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 2

      22641                           22641-T                         22641-W



Part No. Thread E Hose Bore Dimensions
DN DASH A C H S2
22641-04-04 G1/4"x19 6 04 42.3 5.5 20.2 19
22641-06-04 G3/8"x19 6 04 43.2 6.3 21 22
22641-06-05 G3/8"x19 8 05 45.3 6.3 22 22
22641-06-06 G3/8"x19 10 06 46.9 6.3 22.6 22
22641-08-06T G1/2"x14 10 06 48.1 7.5 23.9 27
22641-08-08 G1/2"x14 12 08 61.1 7.5 26.1 27
22641-10-08 G5/8"x14 12 08 61.4 9.5 26.5 30
22641-10-10 G5/8"x14 16 10 72.6 9.5 27.8 30
22641-12-08T G3/4"x14 12 08 61.8 10.9 26.9 32
22641-12-10 G3/4"x14 16 10 79.2 10.9 28.2 32
22641-12-12 G3/4"x14 20 12 80.8 10.9 31.8 32
22641-16-12T G1"x11 20 12 88.4 11.7 33.4 41
22641-16-16 G1"x11 25 16 85.3 11.7 34.2 41
22641-20-16T G1.1/4"x11 25 16 98.8 11 31.1 50
22641-20-20W G1.1/4"x11 32 20 116.8 11 38 50
22641-24-24W G1.1/2"x11 40 24 135.7 13 45.5 55
22641-32-32W G2"x11 50 32 31.9 16 52.7 70



Note: 1 for use with braided hoses, textile hoses and thermoplastic hoses, if use with spiral hoses, hose fitting series number is 22642-**-**.

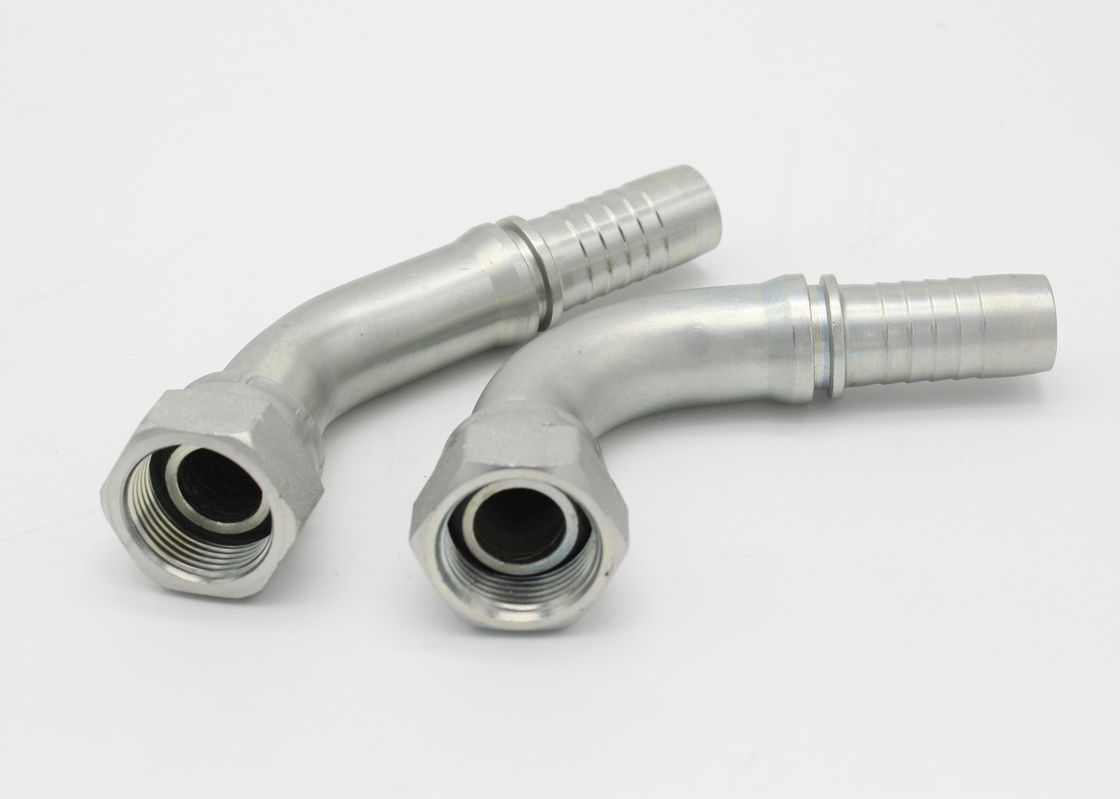

It is hydraulic hose fittings 45 degree BSP Female 60 degree Cone Seal in silver color (22641).



Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 3



Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 4





Production Flow:



Material of ferrule: carton steel 20#

Material of fitting: carton steel 45#

All of our machines are CNC machines



Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 5





Packgaing and Shipping:



Carton: 5 layers corrugated carton 24cm X 24cm X 16cm

Wooden Case: 110cm X 80cm X 75cm

Usually 42 corragetd cartons are packed in a wooden case.



Sliver BSP Hydraulic Fittings , 3/8" Npt Fittings 22641 Eaton ( 22641 ) 6



Competitive Advantage:

-Our factory owns a group of high quality and high-tech professional designers and personnel group. It
possesses a series of the fully automatic computer CNC machine tools and high precision lathes, the
multiple spindles too machines, hexangular tool machines and electric heated bent pipe machines. We
 have strictly adopted the professional personnel to carry on the tests and examinations for our products

in order to provide an assurance in the high-quality for all the customers.


-Our factory success fully obtained the international quality certification system: ISO9001:2000 and

domestic production permit of hydraulic hose fittings.


-Our hydraulic hose fittings have been exported to many countries and areas in Europe, America, the

Middle East, the Southeast Asia and the South America.


-The material of our hydraulic hose fittings is good quality carton steel #45.


-Our warehouse is on the second floor, it is better to keep dry of stock of fittings.


-Our hydraulic hose fittings are well packed in cartons and wooden boxes. It is better to avoid fitting

damping.


-The branding can be printed on the fittings.


-The fittings can be customized according to samples or drawings.



- We have crimping machine to crimp hydraulic hose assembly.



- We use new technic to galvanize zinc. It makes carbon steel fitting looks like stainless steel one. The appearance is fantastic.
