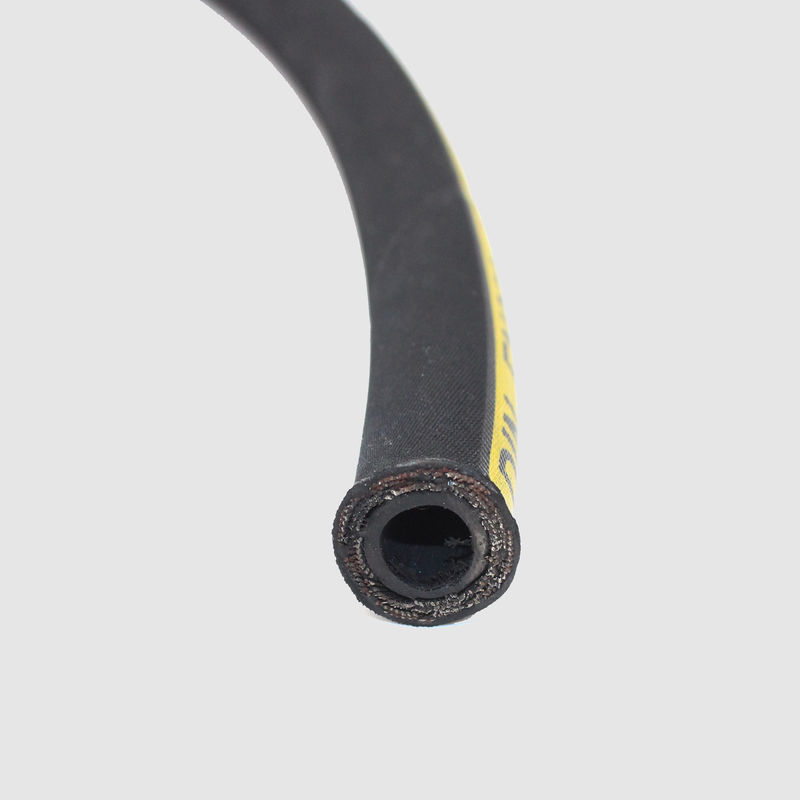

Short Lead Time Machinery High Pressure Hydraulic Hose R1 R2 1SN 2SN

Basic Information
Place of Origin: Zhejiang, China
Brand Name: PASSION
Certification: CE, ISO 9001, MSHA
Model Number: En853 1SN 2SN
Minimum Order Quantity: 400 meters
Price: Negotiable
Packaging Details: Colorful poly stripes or as your request.
Delivery Time: 20 days
Payment Terms: T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
Supply Ability: 350,000 meters per month
Inner Tube: NBR Reinforcement: 1 And 2 Layers Of High Tensile Steel Wire
Size: 1/4" ~ 2" DN: 6 ~ 51
Type: En853 1SN 2SN Cover: Cloth Or Smooth Wrapped
Color: Black, Blue, Grey, Etc. Length: 40m, 50m, 100m
High Light:

Hydraulic Rubber Hose

,

High Pressure Hydraulic Pipe

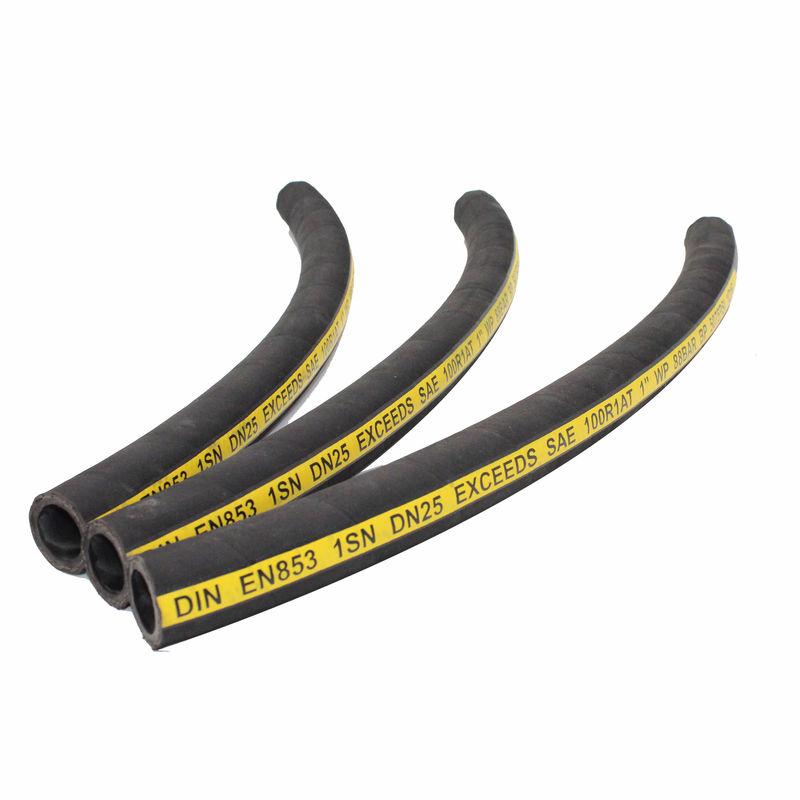

Short Lead Time Machinery High Pressure Hydraulic Hose R1 R2 1SN 2SN 0



Paishun Advantages

* Various colors.
* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light



Product Detail




Name EN853 1SN 2SN
Material NBR
Certification CE approved.
Size 3/16"~2"
Color Black
Temperature range -40ºC~+100ºC
Reinforcement One and two braid of high-tensile steel wire.
Capability/Feature Oil resistant, abrasion resistant, anti-aging.
Length 100m or 50m per roll.
Tolerance 0.05mm
Application Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
Package Well packed by poly stripes or as your requirement.
Delivery According to your quantity, generally speaking, 35 days for a 20' container.



Product Specification





Part In Hose Size ID DIN Dash Size Hose OD Max. Working Pressure Min. Burst Pressure
in mm mpa mpa
GR1SN-03 3/16 4.8 Din Dash size 0.47 11.9 25 100.1
GR1SN-04 1/4 6.4 Din Dash size 0.534 13.6 22.5 90.2
GR1SN-05 5/16 7.9 Din Dash size 0.595 15.1 21.5 86
GR1SN-06 3/8 9.5 Din Dash size 0.689 17.5 18 72.1
GR1SN-08 1/2 12.7 Din Dash size 0.813 20.7 16 64
GR1SN-10 5/8 15.9 Din Dash size 0.938 23.8 13 52.1
GR1SN-12 3/4 19 Din Dash size 1.096 27.8 10.5 42.2
GR1SN-16 1 25.4 Din Dash size 1.408 35.8 8.8 35.3
GR1SN-20 11/4 31.8 Din Dash size 1.696 43.1 6.3 25.4
GR1SN-24 11/2 38.1 Din Dash size 1.971 50.1 5 20.1
GR1SN-32 2 50.8 Din Dash size 2.503 63.6 4 16





Part Number Size ID WD OD WP BP Min Bend Radius Weight
inch mm mm mm bar psi bar psi mm g/m
P03-2SN 3/16″ 4.8 11.7 13.7 415 6018 1650 23925 90 300
P04-2SN 1/4″ 6.4 12.5 14.5 400 5800 1600 23200 100 380
P05-2SN 5/16″ 8 14.5 16.7 350 5075 1400 20300 115 435
P06-2SN 3/8″ 9.5 16.6 19.2 330 4785 1320 19140 125 550
P08-2SN 1/2″ 12.7 19.8 21.8 275 3988 1100 15950 180 640
P10-2SN 5/8″ 16 23.2 25.4 250 3625 1000 14500 205 750
P12-2SN 3/4″ 19 26.9 29.9 215 3118 850 12325 240 925
P16-2SN 1″ 25.4 34.2 37.8 165 2393 650 9425 300 1290
P20-2SN 1 1/4″ 31.8 43.8 46.4 125 1813 500 7250 420 1895
P24-2SN 1 1/2″ 38.1 50.2 52.7 90 1305 360 5220 500 2120
P32-2SN 2″ 50.8 62.8 65.4 80 1160 320 4640 630 2765
P40-2SN 2 1/2″ 63.5 75.4 79.0 69 1000 276 4000 762 3730
P48-2SN 3″ 76.2 87.8 91.3 50 725 200 2900 900 3950

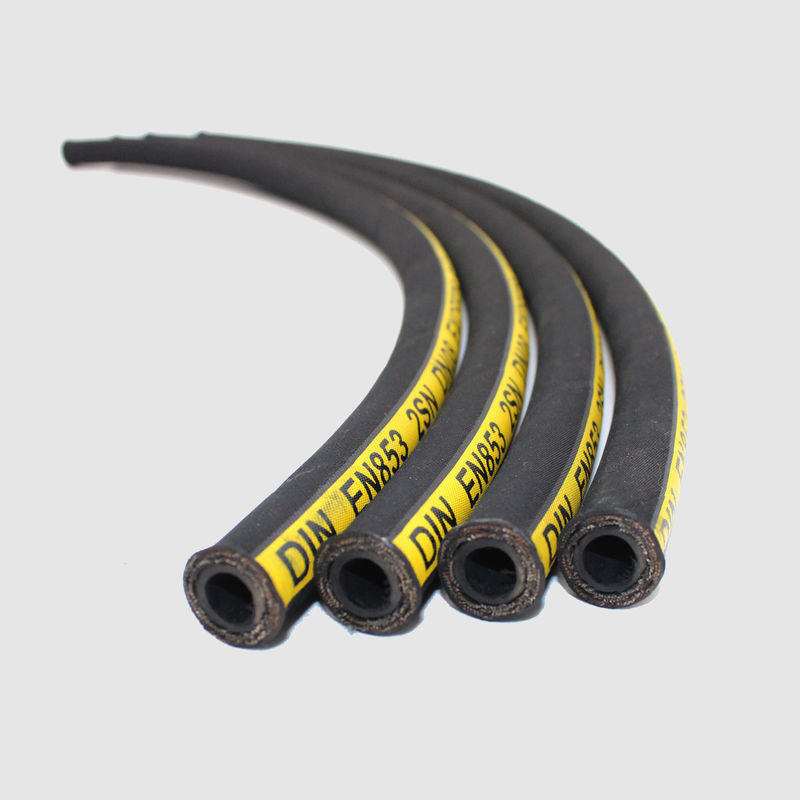

Short Lead Time Machinery High Pressure Hydraulic Hose R1 R2 1SN 2SN 1


Photo of Factory

With 14 brand new automatic inner hose knitting machines from Italy. The knitting speed is faster,

production capacity has been greatly improved, quality is better and more stable.

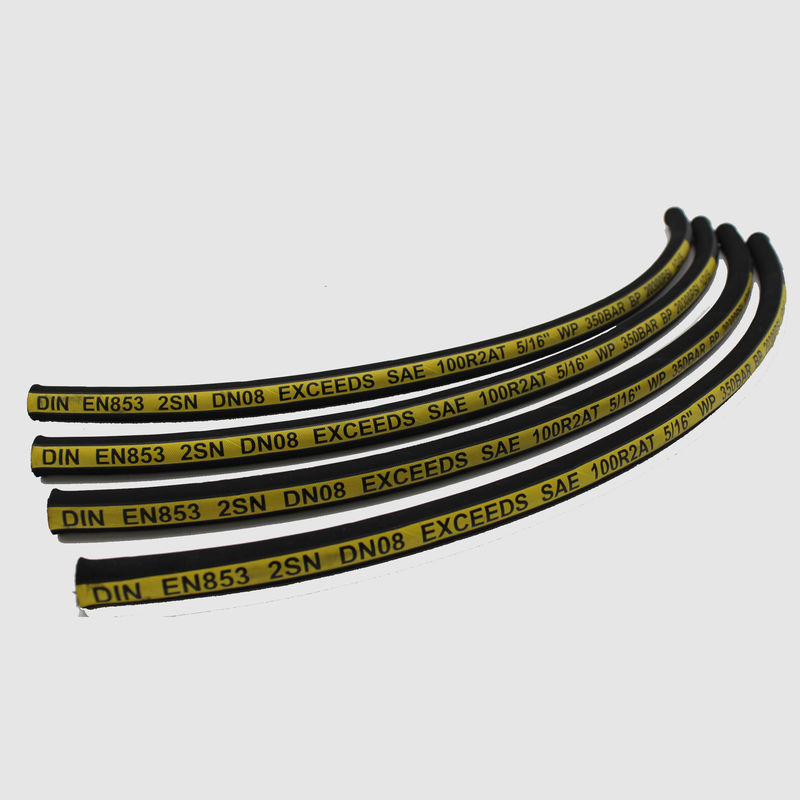

Short Lead Time Machinery High Pressure Hydraulic Hose R1 R2 1SN 2SN 2



Test Report



Short Lead Time Machinery High Pressure Hydraulic Hose R1 R2 1SN 2SN 3


RELATIONSHIPS



Long term business relationships are of upmost importance to us at Paishun. With our roots planted

as a manufacturer, we take the time to learn about your business and your individual needs so we

can provide better service to you. We pride ourselves on maintaining long term business relationships

and understand that it takes time to build trust in new ones.


QUALITY


Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed

with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized

environment. This allows us to guarantee your hoses are produced promptly and efficiently.



SHORT LEAD TIMES


We have continually made improvements to our manufacturing process over 12+ years. We've implemented

lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth

and streamlined our supply chain process in order to respond quickly to market change. All with the goal to

decrease lead time and improve quality.


INVENTORY MANAGEMENT


A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand

how important production scheduling and inventory flow are to your business. We will work with you on

an individual basis and will process blanket orders to assist with your inventory level. All of our materials

are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality

standard.



Application



Short Lead Time Machinery High Pressure Hydraulic Hose R1 R2 1SN 2SN 4
