1/4" to 3/8" High Pressure Washer Hose with Fittings & Restrictor

1/4" to 3/8" High Pressure Washer Hose with Fittings & Restrictor

  • High Light

    high pressure washer hose

    ,

    pressure washer replacement hose

  • Applications
    Electric Washer, Gasoline Or Diesel Washer, Large Industrial Washer.
  • Tube
    Seamless Oil Resistant Synthetic Rubber
  • Reinforcement
    1 Or 2 High Tensile Steel Wire Braid
  • Standard
    SAE / DIN
  • OEM
    Yes
  • Temperature
    -40℃ ~ +100 ℃
  • Color
    Black, Blue, Gray Etc.
  • Place of Origin
    Zhejiang, China
  • Brand Name
    PASSION
  • Certification
    CE, ISO 9001:2008
  • Model Number
    Washer Hose
  • Minimum Order Quantity
    500 meters
  • Packaging Details
    By poly stripes or as your requirement.
  • Delivery Time
    30 days after payment
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram, PayPal
  • Supply Ability
    10,000m per week

1/4" to 3/8" High Pressure Washer Hose with Fittings & Restrictor

CE and ISO 1/4" to 3/8" High Pressure Washer Hose with Fittings and Bend Restrictor



* Can provide matched fittings and bend restrictor (protector, sleeve).

* Color can be black, blue, gray or as your request.
* Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
* Free sample.
* We can print words and your logo on the hose as your request.
* We test the products before shipped out. We have complete line of test machines.



About Paishun's Pressure Washer Hose



* All CE certified, so quality is reliable.



* Factory is ISO 9001 approved, with complete line of test machines.



* Just imported 14 sets of brand new automatic inner hose knitting machines from Italy. The knitting speed is faster, production capacity has been greatly improved, quality is better and more stable.



* In order to ensure the quality of our hydraulic hoses are good and stable. We test every batch of goods before sent out. Below are some common tests.

1 Working pressure test

All the hoses need to do this test before shipment.

2 Burst pressure test

3 Impulse test

1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times



*Several ways of hydraulic hose packaging for our customers.

1 Colorful poly stripes (normal packing)

2 reel

3 customized carton hose assembly

4 customzied PE bag.



Detail Information of Product



Name High Pressure Washer Hose
Size 1/4"~3/8"
Inner Tube Seamless oil resistant synthetic rubber
Reinforcement 1 or 2 high tencile steel wire braid
Temperature Range -40ºC ~ +100ºC (-40ºF~ +212 ºF)
Application Electric washer, gasline or diesel washer, large industrial wahser.
Certification CE approved
Standard SAE/DIN
OEM Accepted Yes
Fitting 1. Metric female wahser hose fittings. Eg., Metric system 20011-T,DKF-W.
2.For other fittings, please advise, if it is not standard, please supply specific standard parameters or detailed drawing.
Printing Word We can print LOGO or something else as your requirement.
Packaging Detail We pack the goods with poly stripes or as your request.
Delivery According to your quantity, about 30 days for a 20' container.



Specification of Product



  SIZE I.D O.D W.P B.P Weight
Part Number inch mm mm bar bar g/m
P1S-04 1/4" 6.4 12.0 210 840 240
P2S-04 1/4" 6.4 15.0 400 1600 400
P1S-05 5/16" 7.9 15.1 215 860 300
P2S-05 5/16" 7.9 16.5 350 1400 470
P1S-06 3/8" 9.5 17.5 180 721 370
P2S-06 3/8" 9.5 19.1 330 1320 550


Note: If you need customized hose, please let us know. We can do it for you.



Picture of Product

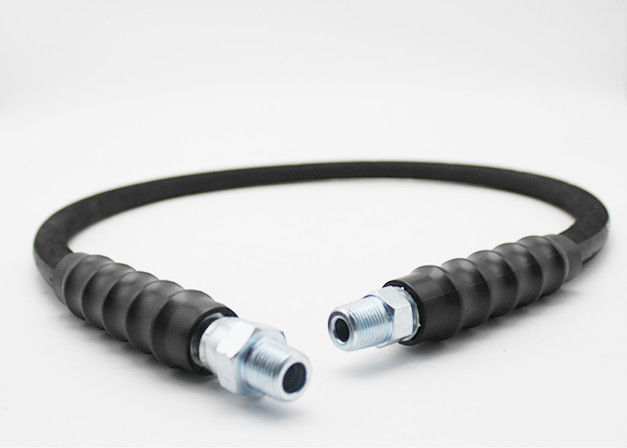

1/4" to 3/8" High Pressure Washer Hose with Fittings & Restrictor 0


Shipping


We ship the goods by express, by air, by sea or according to your requirement.





Test Machines





We do various test to make sure the hose in good quality.



1/4" to 3/8" High Pressure Washer Hose with Fittings & Restrictor 1
