Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 6mm to 13mm
SBR WP 20 Bar BP 60 Bar LPG Gas Hose For Household Usage , ID 6mm To 13mm
We can supply some products which is related to lpg gas hose, these products can be used with lpg gas hose together like hose couplings, clamps ( iron or stainless steel) , gas valves etc. We have stable suppliers of these products. Since their good quality, we have been cooperating with them for over 8 years.
The regular couplings of lpg gas hose assembly is in material brass and iron. We have been exporting large amount of gas hose assembly with brass left-hand female thread to the EU markets like the UK. And we produce hose assemblies with iron fitting for one of customers from Korea, feedbacks of quality are good.
The working pressure for lpg gas hose is 2mpa ( 300psi ) and the burst pressure is 6mpa ( 900psi ). If there is two layers of fiber braided, the pressure will be higher. We have s set of machine to test pressure, usually testing burst pressure.

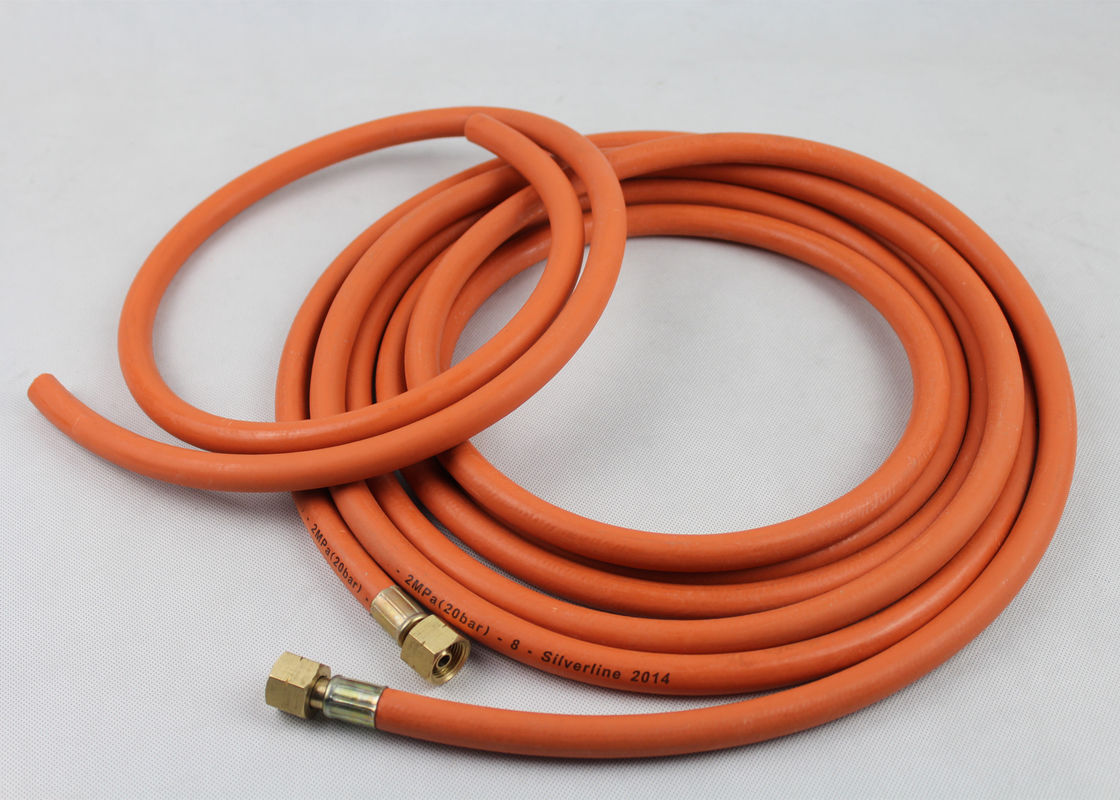

For sizes 6mm, 8mm, 10mm and 13mm, the standard length is 100m per roll. Sometimes, the length can be 50m, 20m etc, it depends on customers' specific requirement. We can also produce the hose with just several meters like 2m, 5m etc. Sometimes, these hoses in short length are fitted with connectors. We have been producing lpg gas hose assemblies in 2m and 5m length with brass female left-hand thread to the UK.
8. BS EN 559, BS EN ISO 3821, BS 3212 are three kinds of hose standard for lpg gas hose. BS EN 599 is standard for rubber hose used for welding, cutting and allied processes. BS EN ISO 3821 is standard for rubber hoses used for welding, cutting, etc. BS3212 is standard for flexible rubber tubing used in LPG vapour phase.
The structure of gas LPG hose:
There are three layers for household usage rubber lpg gas hose: for inner tube, it is made of synthetic SBR rubber, For reinforcement, it is high tensile fiber braided, the fiber is usually polyester thread, with the fiber braided reinforcement, the hose pressure can be guaranteed. For outer tube, it is made of synthetic SBR and NR rubber for its good wear resistance. Material is very important to hoses, our factory has been using good material and better compound rubber formula to guarantee the use time and security of hoses. Our rubber lpg gas hose are well-accepted in many markets in quality.

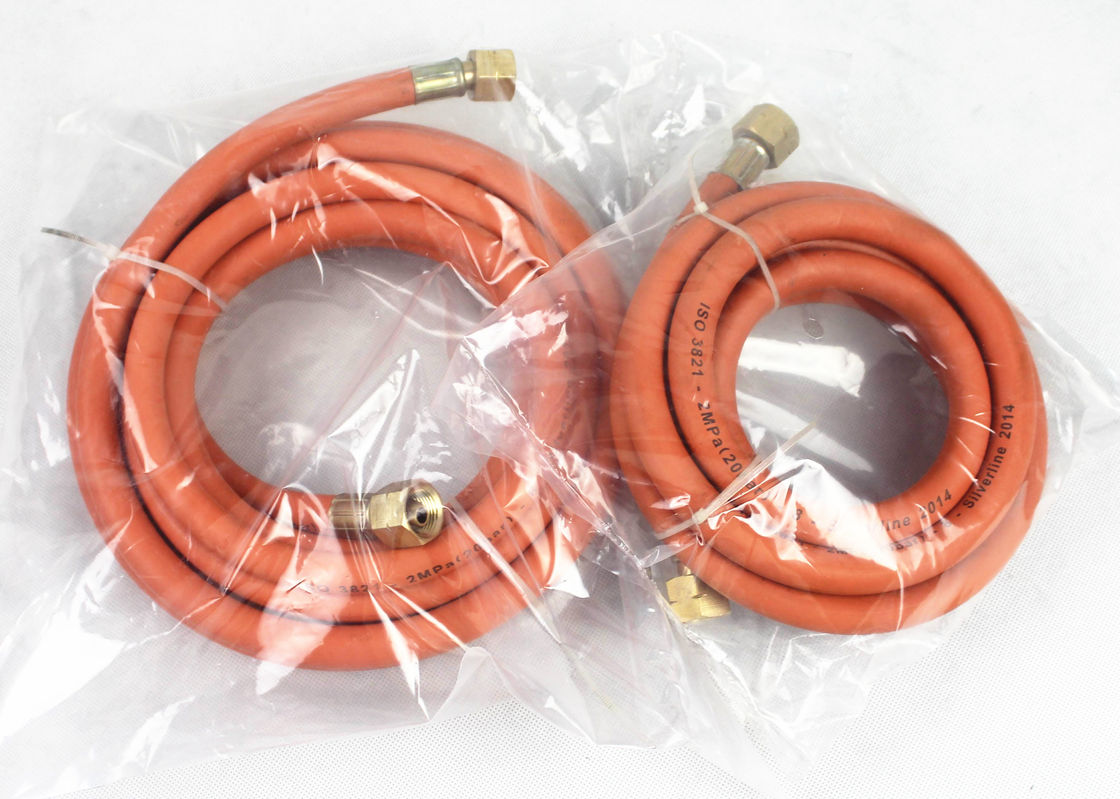

For the package of gas LPG hose, it is well packed by transparent OPP films for black color hose; it is double package for colored hoses, firstly the hoses are well packed by transparent OPP films and then packed by poly stripes like the following picture in order not to get dirty because of environment.
If necessary, it will be well packed in cartons or polybags with header card for pieces. We can also pack the hoses according to customers’ specific requirements.
About the shipment for gas LPG hose, we can ship the goods by sea, by air and by express. If by sea, Ningbo or Shanghai port is OK. The lead time is mainly depends on the quantity. Generally speaking, 30 days for a 20’ FCL.
Specification sheet:
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | |||
inch | mm | mm | bar | psi | bar | psi | m |
1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 |
5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 |
3/8" | 10 | 16 | 20 | 300 | 60 | 900 | 100 |
1/2" | 13 | 20 | 20 | 300 | 60 | 900 | 100 |
