Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar

Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar

  • High Light

    Electrically CNG Transfer Hose

    ,

    Compressed Gas CNG Transfer Hose

    ,

    CNG Transfer Hose 350 Bar

  • Inner Tube
    Conductive Thermoplastic Material
  • Reinforcement
    Braided Fibers
  • Outer Tube
    Polyurethan (PU)
  • I.D.
    1/4", 5/16", 3/8", 1/2", 3/4", 1"
  • Working Pressure
    350 Bar
  • Min Bend Radius
    51 Mm - 254 Mm
  • Length
    100meters / 50meters Per Roll
  • Outer Diameter
    14mm, 16.5mm, 22.9mm, 30.2mm, 40.4mm
  • Package
    Packed In Rolls
  • Application
    CNG Dispenser
  • MOQ
    2000 Meters
  • Lead Time
    Normally 30 Days
  • Manufacturer
    Paishun
  • Place of Origin
    CHINA
  • Brand Name
    PASSION
  • Certification
    CE
  • Model Number
    CNG
  • Minimum Order Quantity
    2000meters
  • Packaging Details
    well packed by high quality braided straps.
  • Delivery Time
    30days
  • Payment Terms
    T/T
  • Supply Ability
    100000meters/month

Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar

Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar

CNG hose incoporated with steel wire is a general hose, what about the hose embedded with aramid fibers?

Comparing with the general type, the CNG hose with aramid fibers is more flexible, more easy to handle, high pressure is guaranteed.
Without steel wire, the hose can still keep anti-static, because we use a " conductive " material to produce the inner tube. It is safe when being used in LPG stations.

  • High pressure hose suitable for CNG refueling applications featuring conductive inner tube to dissipate static electric build up.
  • Extra tough cover for abrasion water and micro biological resistance.
  • Non metallic lightweight design for easy handling and manipulation.
  • Rugged construction to give kink - crush - twist and pull resistance.

In addition to taking the lead in development and mass production of polyure-thane reinforced
hose series (widely used in power steering systems of various buses and vehicles). Our company
studied and developed CNG special hose series relying on our own technical force in 2006. It is
being widely used in the connection pipeline system of loading and unloading between CNG
cylinder cars and pressure reduction station or parent stations.


The product is easy to install and convenient to use. Special CNG hose assembly includes
different coupling means: ball valve, quick coupling and flange, so it is convenient to adjust the
distance of loading and unloading.

The product has strong pressure adaptability. Range of application: 1.0MPa-35Mpa, can meet the
needs of different customers.



Specifications I.D.
(inch)
O.D.
(mm)
Service
Pressure
(psi)
Min Bend
Radius
(mm)
CNGG-6 1/4" 14.0 5000 51
CNGG-10 3/8" 16.5 5000 76
CNGG-13 1/2" 12.5 5000 102
CNGG-19 3/4" 19 5000 191
CNGG-25 1" 25 5000 254

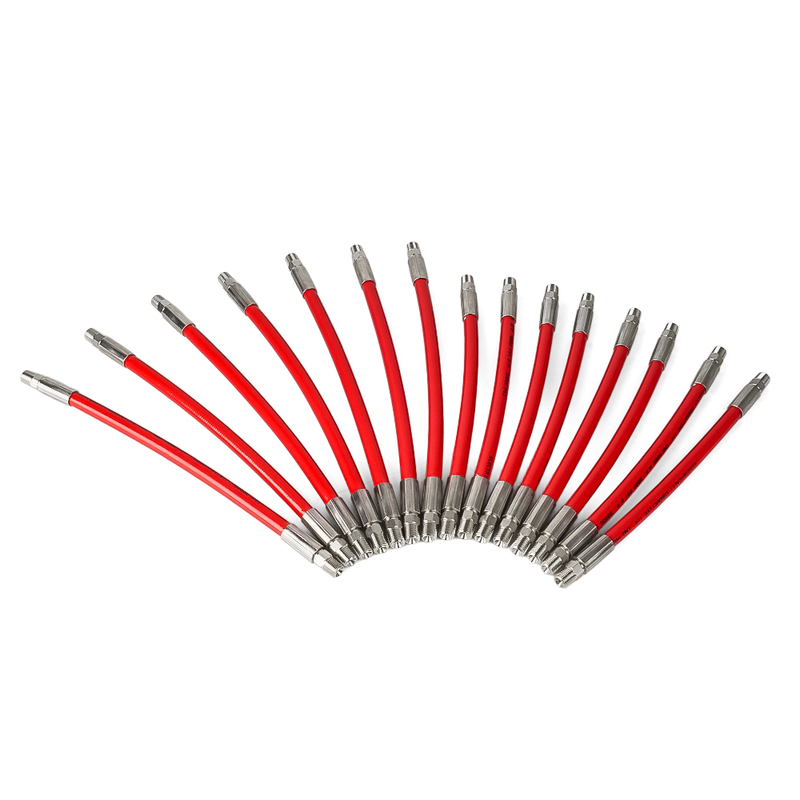

 Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar 0

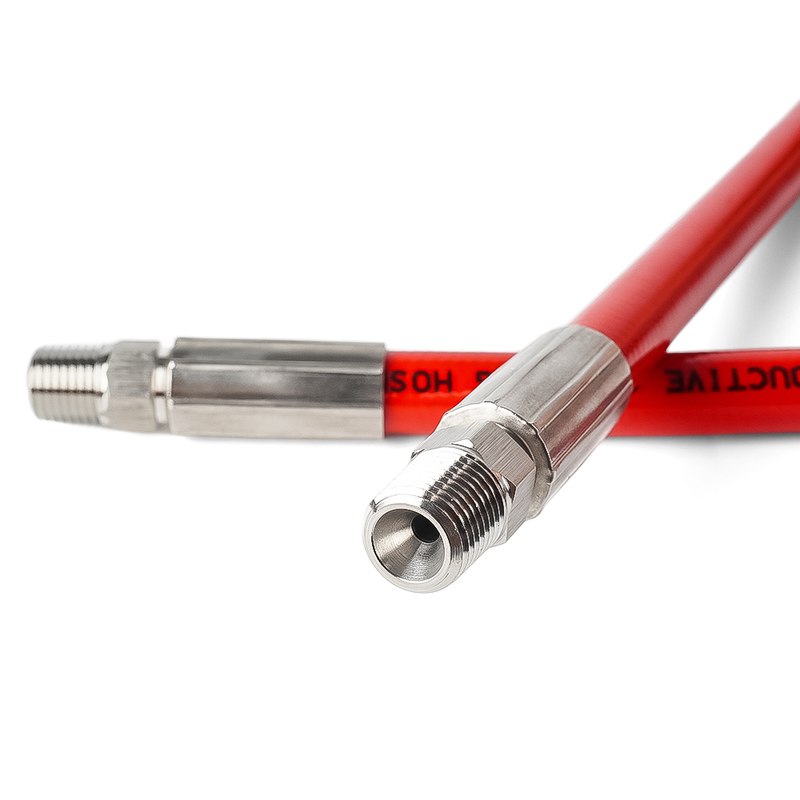

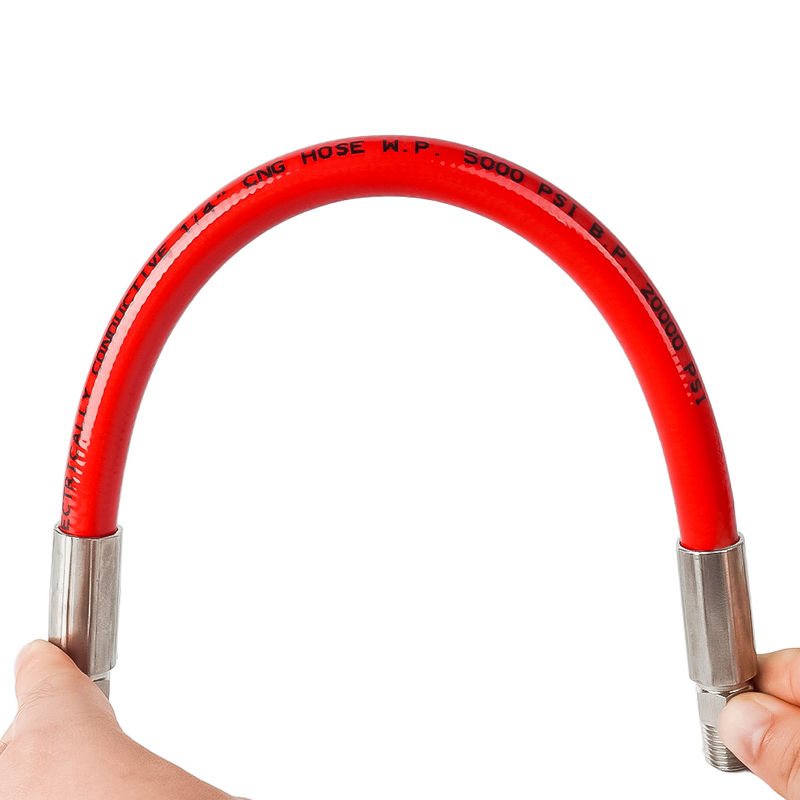

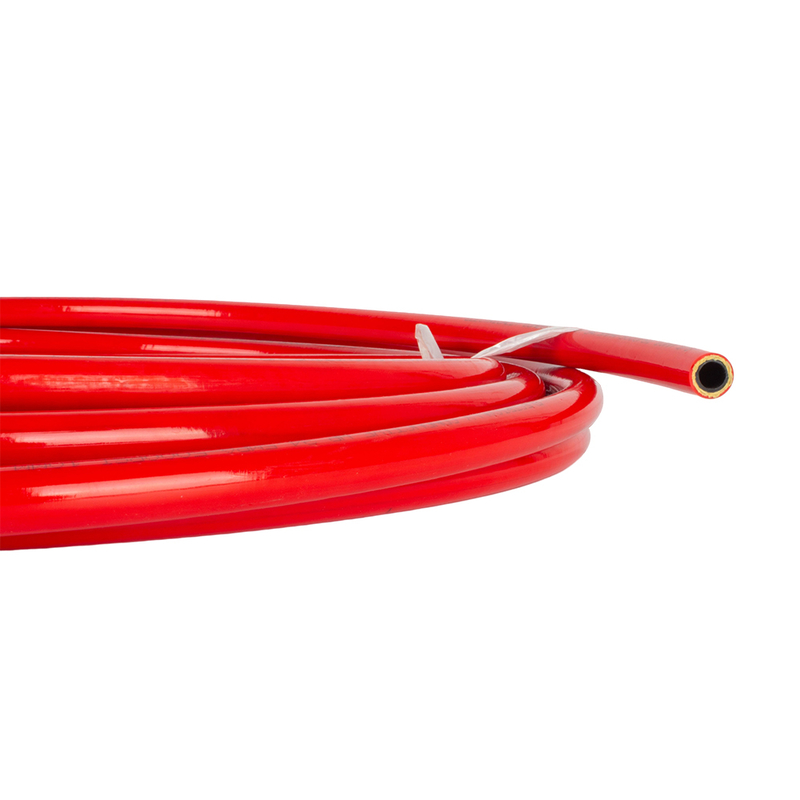

Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar 1Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar 2



Application:

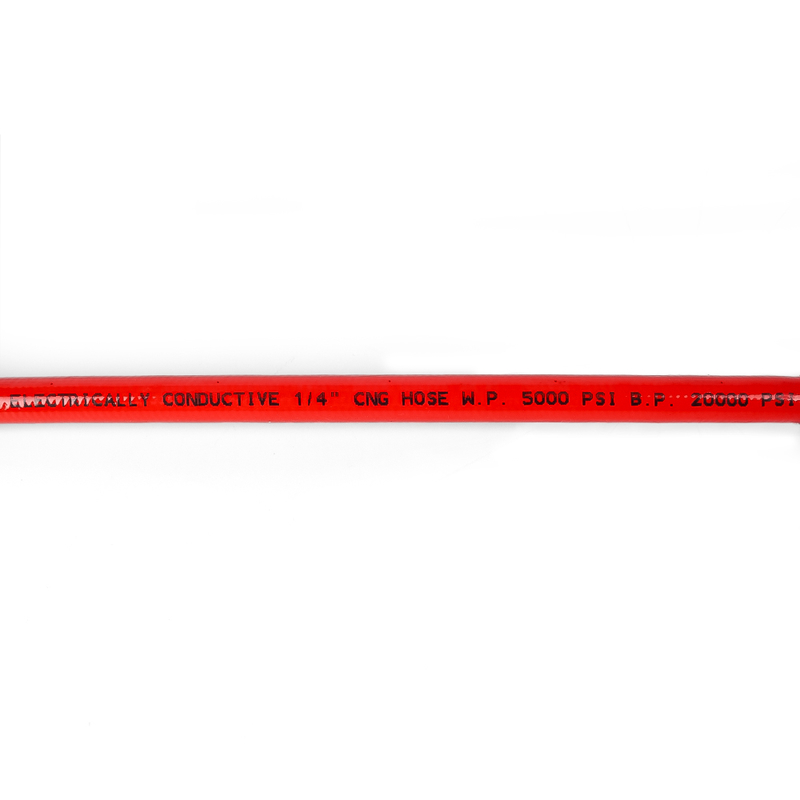

Electrically Conductive Compressed Gas CNG Transfer Hose 350 Bar 3
