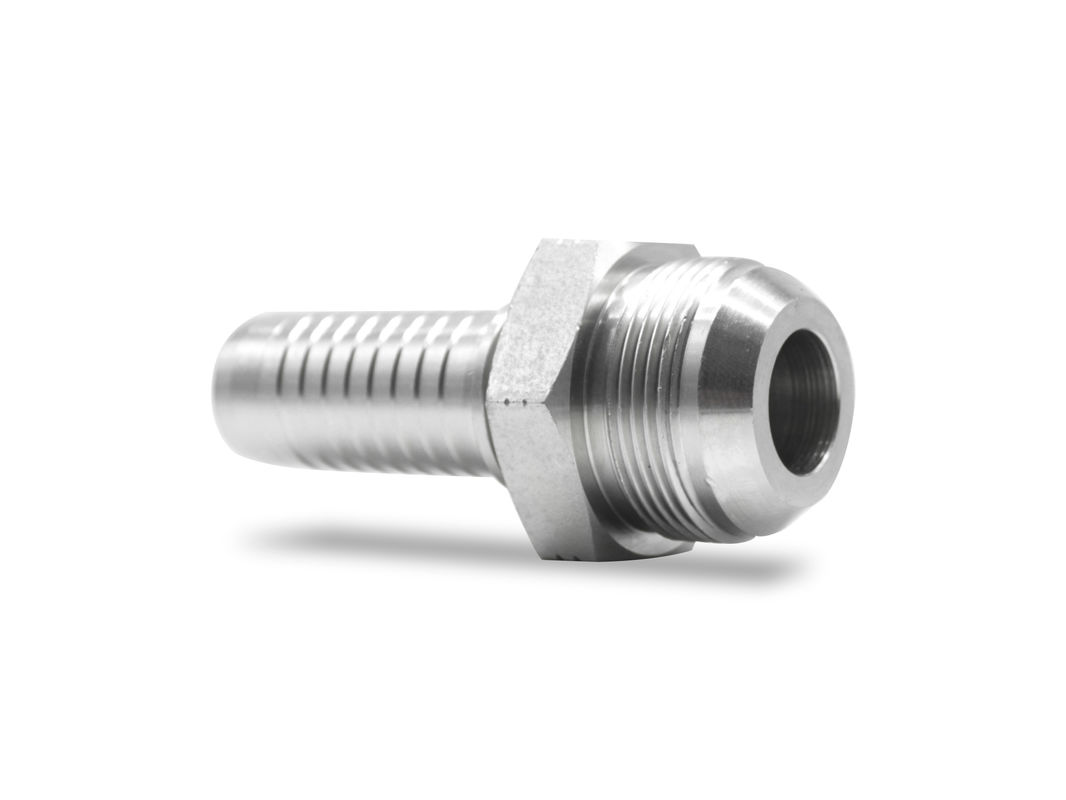

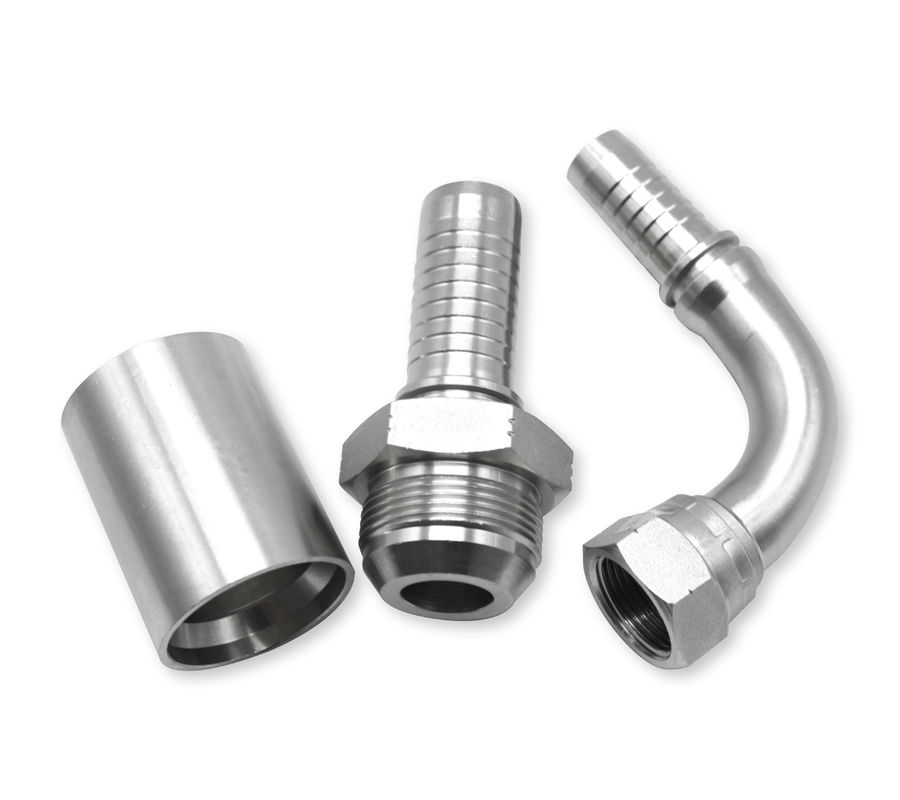

JIC Male 37 Degree Cone Hydraulic Hose Connectors in Carbon Steel
JIC Male 37 Degree Cone Hydraulic Hose Connectors
All of our hydraulic fittings are produced by advanced CNC machines.
Standard: Yonghua
Technology: Hot forging
Material: carbon steel 45# or stainless steel 304/316
Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3.
It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting.
Application:
Widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.
Specification:
JIC MALE 74 DEGREE CONE ISO 8434-2--SAE J514
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | A | C | S1 | ||
| 16711-04-03 | 7/16"x20 | 5 | 03 | 26 | 14 | 12 |
| 16711-04-04 | 7/16"x20 | 6 | 04 | 26.5 | 14 | 12 |
| 16711-05-04 | 1/2"x20 | 6 | 04 | 26.5 | 14 | 14 |
| 16711-05-05 | 1/2"x20 | 8 | 05 | 26.5 | 14 | 14 |
| 16711-05-06 | 1/2"x20 | 10 | 06 | 26.5 | 14 | 17 |
| 16711-06-04 | 9/16"x18 | 6 | 04 | 26.5 | 14.1 | 17 |
| 16711-06-05 | 9/16"x18 | 8 | 05 | 26.5 | 14.1 | 17 |
| 16711-06-06 | 9/16"x18 | 10 | 06 | 26.5 | 14.1 | 17 |
| 16711-08-06 | 3/4"x16 | 10 | 06 | 31.5 | 16.7 | 22 |
| 16711-08-08 | 3/4"x16 | 12 | 08 | 32 | 16.7 | 22 |
| 16711-10-06 | 7/8"x14 | 10 | 06 | 33.5 | 19.3 | 24 |
| 16711-10-08 | 7/8"x14 | 12 | 08 | 34 | 19.3 | 24 |
| 16711-10-10 | 7/8"x14 | 16 | 10 | 35 | 19.3 | 24 |
| 16711-12-08 | 1.1/16"x12 | 12 | 08 | 38.5 | 21.9 | 30 |
| 16711-12-10 | 1.1/16"x12 | 16 | 10 | 39.5 | 21.9 | 30 |
| 16711-12-12 | 1.1/16"x12 | 20 | 12 | 40 | 21.9 | 30 |
| 16711-12-16 | 1.1/16"x12 | 25 | 16 | 42 | 21.9 | 30 |
| 16711-14-10 | 1.3/16"x12 | 16 | 10 | 41.5 | 22.6 | 32 |
| 16711-14-12 | 1.3/16"x12 | 20 | 12 | 40.5 | 22.6 | 32 |
| 16711-16-12 | 1.5/16"x12 | 20 | 12 | 43 | 23.1 | 36 |
| 16711-16-16 | 1.5/16"x12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-16 | 1.5/8"x12 | 25 | 16 | 47 | 24.3 | 46 |
| 16711-20-20 | 1.5/8"x12 | 32 | 20 | 47.5 | 24.3 | 46 |
| 16711-24-20 | 1.7/8"x12 | 32 | 20 | 53 | 27.5 | 50 |
| 16711-24-24 | 1.7/8"x12 | 40 | 24 | 53 | 27.5 | 50 |
| 16711-32-32 | 2.1/2"x12 | 50 | 32 | 62 | 33.9 | 65 |
Note: 1 for use with braided hoses, if use with spiral hoses, hose fitting series number is 16712-**-**.
Salt Spray Test
All our Fittings have the surface treated by galvanic zinc coating with a thick chromate passivation ( Chromium III) and sealing
(Fe/Zn12/AT2 according to EN ISO 2081). 96 hours to 164 hours salt spray test.
