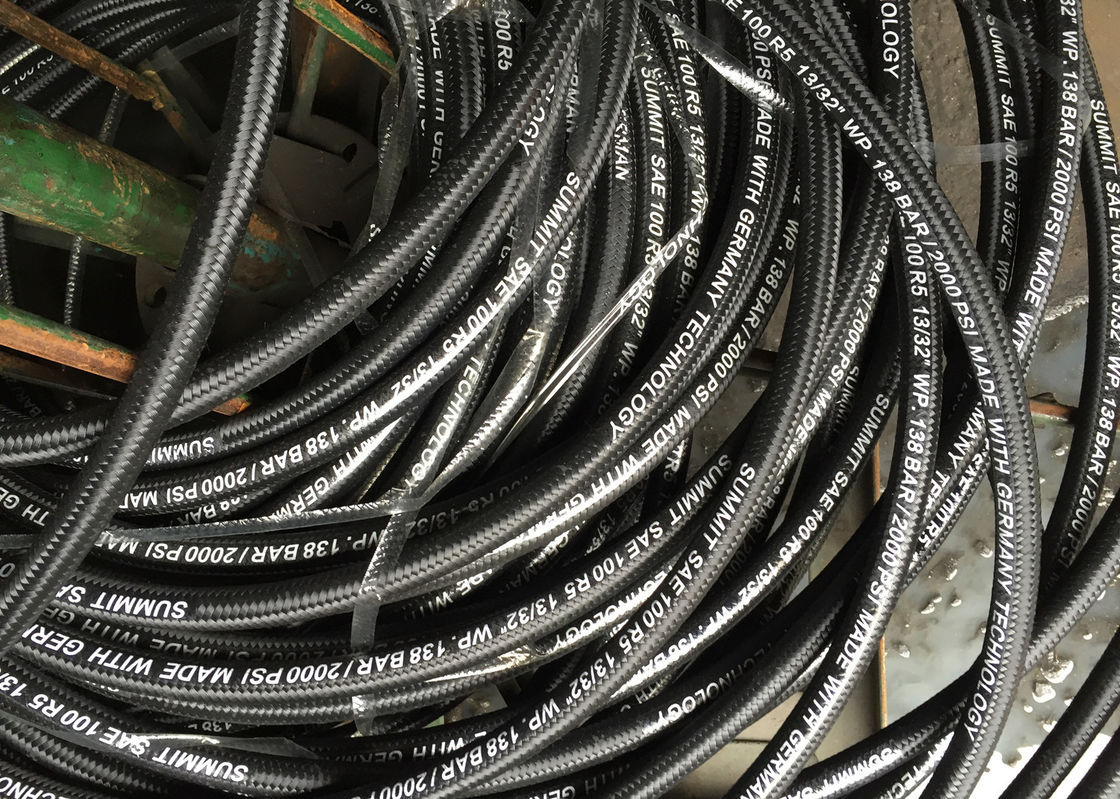

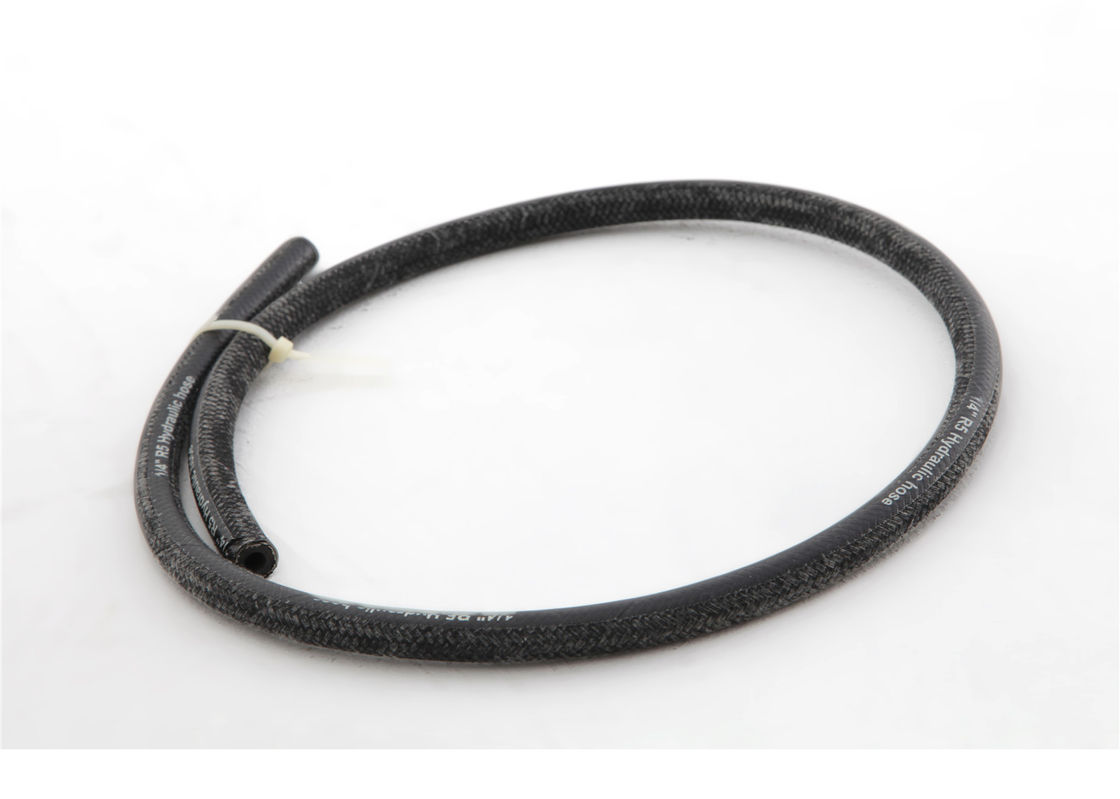

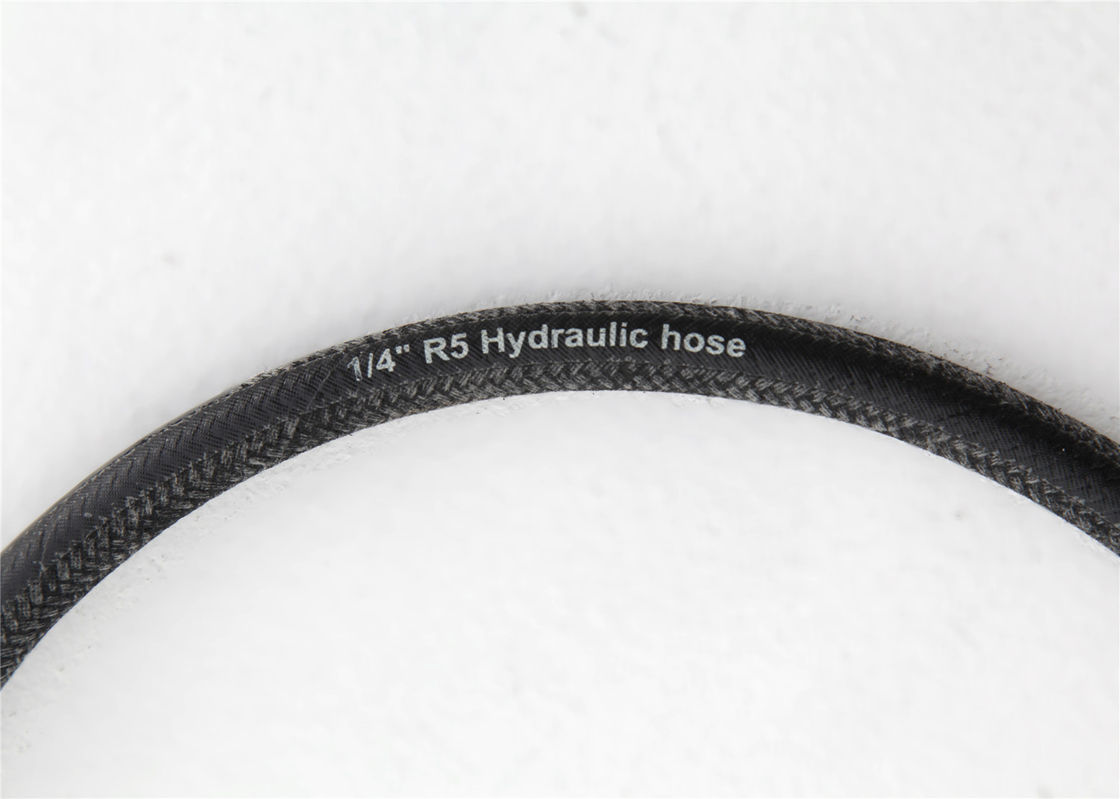

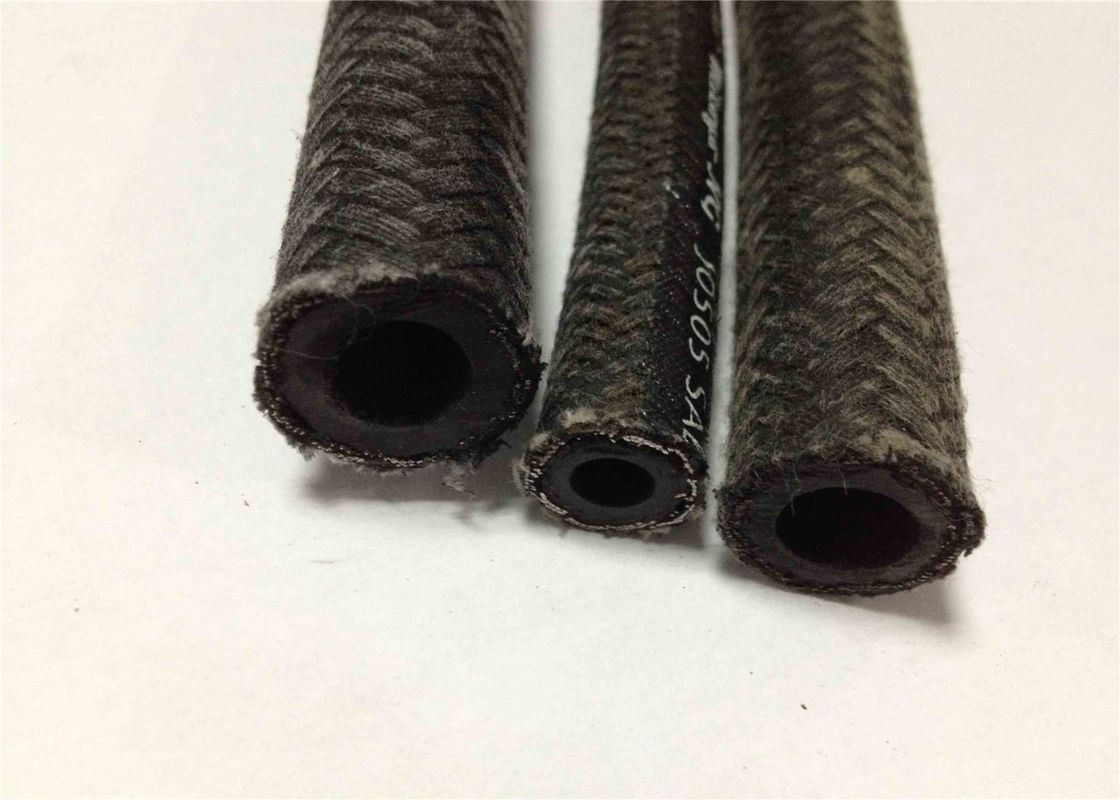

13/32" Cotton Cover SAE 100 R5 Hydraulic Hose Assemblies with Reusable Fitting
Application:General purpose, medium pressure applications including petroleum based hydraulic
oil, air and water for use in air brakes, power steering, turbo oil lines, tilt cab cylinders,
transmission coolant and filtration lines.
Inner Tube: Nitrile
Reinforcement: One braid of high-tensile steel wire
Cover Compound: Impregnated textile braid
Temperature Range: -40C ~ +100C
Specification:
| part | In | Hose Size ID DIN Dash Size | Hose OD | Max.Working pressure | Min.Bend Radius | Min..Burst pressure | Weight | ||||
| in | mm | psi | mpa | in | mm | psi | mpa | (ibs/foot) | |||
| GR5-04 | 3/16 | 4.8MM | 0.52 | 13.2 | 3000 | 20.7 | 3 | 76 | 12000 | 82.7 | 0.1481 |
| GR5-05 | 1/4 | 6.4MM | 0.583 | 14.8 | 3000 | 20.7 | 3.38 | 86 | 12000 | 82.7 | 0.1802 |
| GR5-06 | 5/16 | 7.9MM | 0.675 | 17.1 | 2250 | 15.5 | 4 | 102 | 9000 | 62.1 | 0.2224 |
| GR5-08 | 13/32 | 10.3MM | 0.766 | 19.5 | 2000 | 13.8 | 4.62 | 117 | 8000 | 55.2 | 0.2982 |
| GR5-10 | 1/2 | 12.7MM | 0.921 | 23.4 | 1750 | 12.1 | 5.5 | 140 | 7000 | 48.3 | 0.3692 |
| GR5-12 | 5/8 | 15.9MM | 1.079 | 27.4 | 1500 | 10.3 | 6.5 | 165 | 6000 | 41.4 | 0.4482 |
| GR5-16 | 7/8 | 22.2MM | 1.236 | 31.4 | 800 | 5.5 | 7.38 | 187 | 3200 | 22.1 | 0.4744 |
| GR5-20 | 1 3/8 | 28.6MM | 1.5 | 38.1 | 625 | 4.3 | 9 | 229 | 2500 | 17.2 | 0.5842 |
| GR5-24 | 1 5/8 | 35MM | 1.75 | 44.4 | 500 | 3.4 | 10.5 | 267 | 2000 | 13.8 | 0.7296 |
| GR5-32 | 7 1/16 | 46MM | 2.22 | 56.4 | 350 | 2.4 | 13.25 | 337 | 1400 | 9.7 | 0.9025 |
