Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 5mm
Contact Us
Video

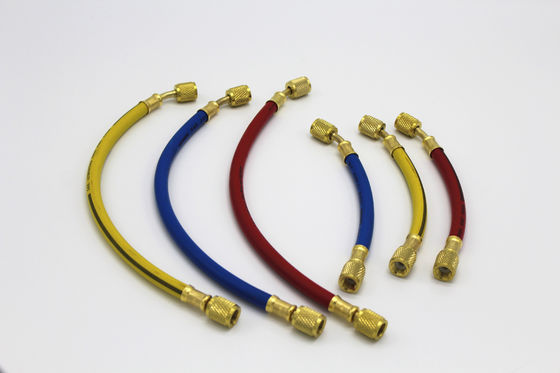

Premium Charging Hose with Anti-blow Back Fitting
Refrigerant Charging Hose (smooth surface)
Construction: Inner tube: High nitrile-butadience rubber (NBR)
Reinforcement: Polyester fiber spiral line.
Cover: NBR&PVC blends.
Temperature: -30℃ - +100℃
Color: Red, Yellow, Blue, Black.
Application: Mainly used for conveying refrigerant such R12, R22, R502, and R134a; applied widely to auto
refrigerant, air conditioning, industrial refrigerant etc; both the inner rubber layer and protective layer are of
high level oil resistance of grade RMA-A and antiseepage.
Standard length: as customers’ request.
Standard: SAE J2196 SAE J2888
Hose Specification:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|
mm |
mm |
psi |
psi |
m |
cbm/roll |
kg/m |
|
|
Ps01 |
5 |
11 |
500 |
2500 |
100 |
0.02 |
0.13 |
|
Ps02 |
5 |
11 |
600 |
3000 |
100 |
0.02 |
0.13 |
|
Ps03 |
5 |
12 |
800 |
4000 |
100 |
0.02 |
0.16 |
About Us:
We Are a Leading Manufacturer Specialized In Designing And Manufacturing Various Kinds Of Rubber Hoses And Hydraulic Hose In China With Experience More Than 10 Years, Manufacturing In Accordance Iso 9001: 2008, Iso / Ts Ce, 29001 And Api q1. We Help Our Clients To Develop Special Qualities And Hydraulic Rubber Hose For Their Needs.
Refrigerant Charging Hose Fitting For You:
