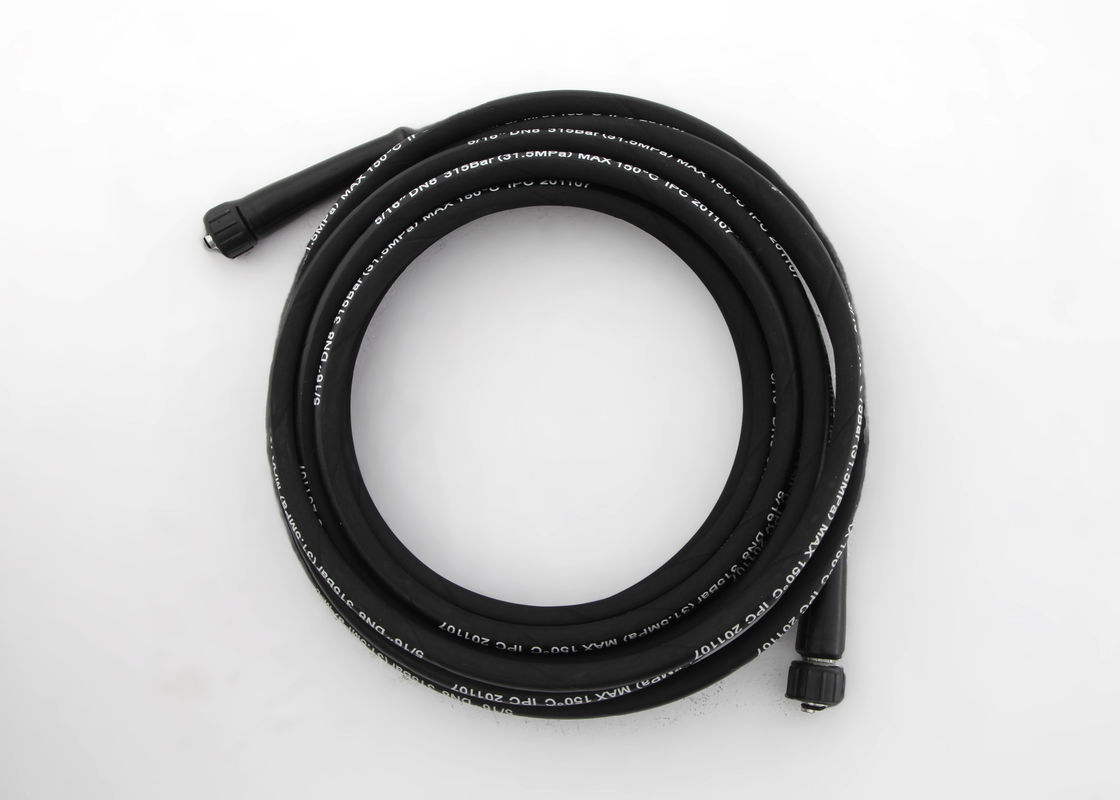

Two steel Wire Reinforced High Pressure Washing Machine Hose with Connectors

Basic Infomation
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: 2S
Minimum Order Quantity: 500m
Packaging Details: Packed in weaving stripe, it also can be packed as per your requirement,
Delivery Time: Within 30 days after we receive advance payment
Payment Terms: T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability: 30,000m per month



Two Steel Wire Reinforced High Pressure Washing Hose with Connectors



Construction:



Tube:  NBR synthetic rubber.
Reinforcement : two high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.

Standard length: 100m, 50m, 40m, 20m.

Couplings: 20011 or other connectors



Application:



Electric washer, gasoline or diesel washer, large industrial washer.





Specifications:





Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Min Bend Radius Length Weight
inch mm mm mpa psi mpa psi mm m kg/m
1S-04 1/4 6.4 12.0 21 3000 84 12000 102 100 0.24
2S-04 1/4 6.4 15.0 40 5800 160 23200 102 100 0.40
1S-05 5/16 7.9 15.1 21.5 3120 86 12480 114 100 0.30
2S-05 5/16 7.9 16.5 35 5075 140 20300 114 100 0.47
1S-06 3/8 9.5 17.5 18 2615 72.1 10460 127 100 0.37
2S-06 3/8 9.5 19.1 33 4800 132 19200 127 100 0.55





catalogue of high pressure washer hose.pdf

Two steel Wire Reinforced High Pressure Washing Machine Hose with Connectors





It is used with high pressure washing mashine.



Two steel Wire Reinforced High Pressure Washing Machine Hose with Connectors
