| Place of Origin: | Zhejiang China |
|---|---|
| Brand Name: | PASSION |
| Certification: | ISO 9001-2008, CE |
| Model Number: | SAE 100R14 |
| Minimum Order Quantity: | 200M |
| Price: | Negotiable |
| Packaging Details: | In Rolls; well wrapped by poly stripes or opp films. We can also make package according to your requirements. |
| Delivery Time: | within 25days after we have received the advanced payment. |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability: | 300000M/Month |
| Model Number: | PTFE Hose, SAE 100R14 | PTFE Hose Market: | North America, Europe, South America |
|---|---|---|---|
| Material: | PTFE 238A+ | ID: | 3/16" ~ 1" |
| Inner Tube: | Extruded Smooth PTFE | Cover: | SS 304 Single Wire Braid |
| Temperature: | -54℃ ~ +230℃ | W.P: | 179.5bar-48.8bar |
| B.P: | 718bar-195bar | Application: | Hydraulic Oil, Brake Hose |
| High Light: | Braided Teflon Hose,Teflon Braided Hose |
||

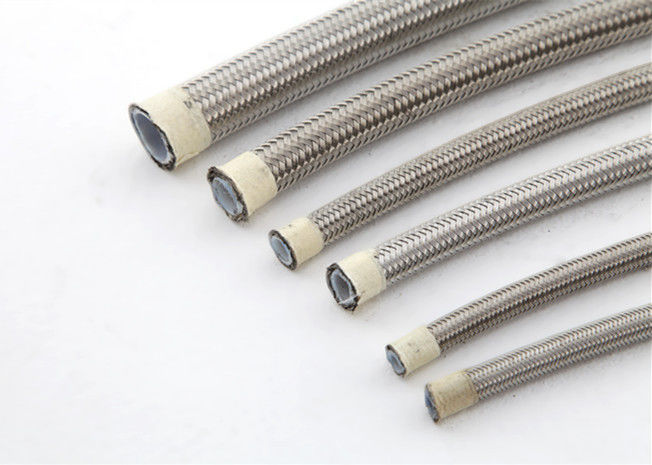

Stainless Steel Corrugated PTFE Braided Hose , High Temperature Resistence
Description:
Corrugated Surface Stainless Steel Braided PTFE Hoses
|
Part-number |
Inner Diameter |
MM |
Outer Diameter (mm) |
Outer Diameter |
Bending Radius |
W.P |
Length |
|
PPT-05 |
5/16'' |
8(±0.3) |
11.5 |
13(±0.3) |
20.3 |
97 |
1-50 |
|
PPT-06 |
3/8'' |
10(±0.3) |
12.3 |
13.8(±0.3) |
25.4 |
76 |
1-50 |
|
PPT-08 |
1/2'' |
13(±0.3) |
17.5 |
19.5(±0.3) |
52 |
50 |
1-50 |
|
PPT-10 |
5/8'' |
16(±0.3) |
20.8 |
22.1(±0.3) |
76.2 |
45 |
1-50 |
|
PPT-12 |
3/4'' |
19(±0.3) |
24.6 |
26.5(±0.3) |
88.9 |
38 |
1-50 |
|
PPT-16 |
1'' |
25.4(±0.3) |
30.0 |
32.0(±0.3) |
99 |
30 |
1-50 |
PS:* Above is Standard Sizes, we have imported Material and Chinese Made Material two types, we also have customize based on your request.
*We tested and get above result under constant temperature, the length can reach as long as 60M/PC.
Application:
Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc
Competitive Advantage:
* The highest working temperature can reach 300C, and the lowest working temperature can reach -70C.
*Very good wear-resisting property.
*Strong chemical resistance property makes PTFE Hose can work under all the strong acid and strong alkali medium.
*Very good anti-sticking property, Chemical Material will not be on Inner Hose, so there will not be dirt.
*Strong aging resistance and radio resistance makes Hose can expose to outerdoor.
*The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please
don’t include the Stainless Steel.
*The Hose is tested when the Hose is under condition of rest.
*Temperature-Pressure:
20C---------P
100C-------0.43P
150C----------0.3P
200C------------0.22P
220C--------------0.2P
