Black SBR  BP 60 Bar Braided Gas Hose , Gas Flexible Hose ID 6MM To 13MM

Black SBR BP 60 Bar Braided Gas Hose , Gas Flexible Hose ID 6MM To 13MM

  • High Light

    Low Pressure Gas Hose

    ,

    Lpg Gas Hose Pipe

  • Inner Tube
    SBR
  • Outer Tube
    SBR And NR
  • Reinforced Layer
    Weaving Fiber Braided
  • Standard Color
    Orange
  • Specification
    6mm, 8mm, 10mm, 13mm
  • Working Pressure
    2 Mpa ( 20 Bar )
  • Burst Pressure
    6 Mpa ( 60 Bar )
  • Length
    100m
  • Temperature
    -30℃ ~ 90℃
  • Cover
    Smooth Surface
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ID 6mm to 13mm
  • Minimum Order Quantity
    3000m
  • Price
    negotiated
  • Packaging Details
    For black color, well packed by transparent OPP films, For colored hose, well packed by transparent OPP film firstly and then well packed by poly stripes.
  • Delivery Time
    It depends on your quantity. For example, 30 days for a 20' FCL.
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram, PayPal
  • Supply Ability
    400,000m per month

Black SBR BP 60 Bar Braided Gas Hose , Gas Flexible Hose ID 6MM To 13MM

SBR WP 20 Bar BP 60 Bar LPG Gas Hose For Household Usage , ID 6mm To 13mm




We can supply some products which is related to lpg gas hose, these products can be used with lpg gas hose together like hose couplings, clamps ( iron or stainless steel) , gas valves etc. We have stable suppliers of these products. Since their good quality, we have been cooperating with them for over 8 years.


The regular couplings of lpg gas hose assembly is in material brass and iron. We have been exporting large amount of gas hose assembly with brass left-hand female thread to the EU markets like the UK. And we produce hose assemblies with iron fitting for one of customers from Korea, feedbacks of quality are good.



The working pressure for lpg gas hose is 2mpa ( 300psi ) and the burst pressure is 6mpa ( 900psi ). If there is two layers of fiber braided, the pressure will be higher. We have s set of machine to test pressure, usually testing burst pressure.





Our factory can produce lpg gas hoses with colors orange, black, red, blue etc. Orange color is the standard and also most popular color for gas hose in the markets. We can produce different colors according to customers' request.




For sizes 6mm, 8mm, 10mm and 13mm, the standard length is 100m per roll. Sometimes, the length can be 50m, 20m etc, it depends on customers' specific requirement. We can also produce the hose with just several meters like 2m, 5m etc. Sometimes, these hoses in short length are fitted with connectors. We have been producing lpg gas hose assemblies in 2m and 5m length with brass female left-hand thread to the UK.



8. BS EN 559, BS EN ISO 3821, BS 3212 are three kinds of hose standard for lpg gas hose. BS EN 599 is standard for rubber hose used for welding, cutting and allied processes. BS EN ISO 3821 is standard for rubber hoses used for welding, cutting, etc. BS3212 is standard for flexible rubber tubing used in LPG vapour phase.


The structure of gas LPG hose:
 There are three layers for household usage rubber lpg gas hose: for inner tube, it is made of synthetic SBR rubber, For reinforcement, it is high tensile fiber braided, the fiber is usually polyester thread, with the fiber braided reinforcement, the hose pressure can be guaranteed. For outer tube, it is made of synthetic SBR and NR rubber for its good wear resistance. Material is very important to hoses, our factory has been using good material and better compound rubber formula to guarantee the use time and security of hoses. Our rubber lpg gas hose are well-accepted in many markets in quality.




Black SBR  BP 60 Bar Braided Gas Hose , Gas Flexible Hose ID 6MM To 13MM 0

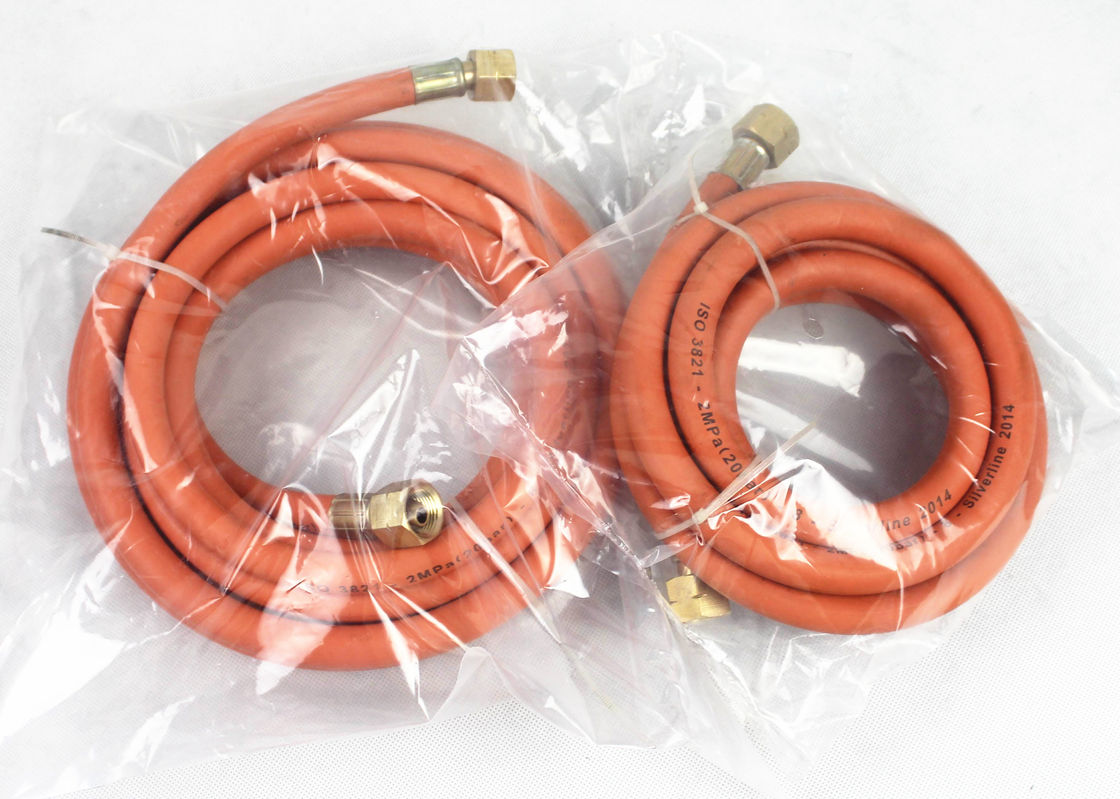

For the package of gas LPG hose, it is well packed by transparent OPP films for black color hose; it is double package for colored hoses, firstly the hoses are well packed by transparent OPP films and then packed by poly stripes like the following picture in order not to get dirty because of environment.

If necessary, it will be well packed in cartons or polybags with header card for pieces. We can also pack the hoses according to customers’ specific requirements.

About the shipment for gas LPG hose, we can ship the goods by sea, by air and by express. If by sea, Ningbo or Shanghai port is OK. The lead time is mainly depends on the quantity. Generally speaking, 30 days for a 20’ FCL.


Black SBR  BP 60 Bar Braided Gas Hose , Gas Flexible Hose ID 6MM To 13MM 1



2. The specification for lpg gas hose is usually from 6mm to 13mm, and our factory has been producing these inner diameter sizes. According to our production experience, ID 6mm, 8mm and 10mm are the most popular sizes in the markets, they occupy large part of lpg gas hose markets, and they are also the most export sizes in our factory. Here is the specification sheet of lpg gas hose as follow:


Specification sheet:



     Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

inch

mm

mm

bar

psi

bar

psi

m

1/4"

6

13

20

300

60

900

100

5/16"

8

15

20

300

60

900

100

3/8"

10

16

20

300

60

900

100

1/2"

13

20

20

300

60

900



100
