Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage

Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage

  • High Light

    Low Pressure Gas Hose

    ,

    Lpg Gas Hose Pipe

  • Inner Tube Material
    NBR
  • Outer Tube Material
    EPDM
  • Reinforcement
    High Tensile Fiber Braided
  • Color
    Black, Orange, Blue Etc
  • Inner Diameter Sizes
    6mm, 8mm, 10mm And 13mm
  • Working Pressure
    20 Bar (300psi)
  • Burst Pressure
    60 Bar (900psi)
  • Standard Length
    100m Per Roll
  • Temperature
    -30C ~ 90C
  • Application
    Mainly Used For Conveying Gaseous Fuel, LPG
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ID 6mm to 13mm
  • Minimum Order Quantity
    1000m
  • Price
    negotiated
  • Packaging Details
    For black color, well packed by transparent OPP films, For colored hose, well packed by transparent OPP film firstly and then well packed by poly stripes.
  • Delivery Time
    It depends on your quantity. For example, 30 days for a 20' FCL.
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram, PayPal
  • Supply Ability
    400,000m per month

Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage

ID 6mm , 8mm , 10mm NBR Lpg Gas Hose For Household And Industrial Usage



Test Report of Gas Hose from Zoe Paishun.pdf



1. Generally speaking, lpg gas hoses are made of two kinds of raw material, one is rubber, the other is PVC. For our lpg gas hoses, they are made of rubber material. There are three layers for rubber lpg gas hose: for inner tube, it is made of synthetic NBR rubber, since NBR has good oil resistance, it is the most used material for hoses which are used to transport oil. For reinforcement, it is high tensile fiber braided, the fiber is usually polyester thread, with the fiber braided reinforcement, the hose pressure can be guaranteed. For outer tube, it is made of synthetic SBR rubber for its good wear resistance. Material is very important to hoses, our factory has been using good material and better compound rubber formula to guarantee the use time and security of hoses. Our rubber lpg gas hose are well-accepted in many markets in quality.





2. The specification for lpg gas hose is usually from 6mm to 13mm, and our factory has been producing these inner diameter sizes. According to our production experience, ID 6mm, 8mm and 10mm are the most popular sizes in the markets, they occupy large part of lpg gas hose markets, and they are also the most export sizes in our factory. Here is the specification sheet of lpg gas hose as follow:



Specification Sheet:



     Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

inch

mm

mm

bar

psi

bar

psi

m

1/4"

6

13

20

300

60

900

100

5/16"

8

15

20

300

60

900

100

3/8"

10

16

20

300

60

900

100

1/2"

13

20

20

300

60

900

100







3. The working pressure for lpg gas hose is 20 bar ( 300psi ) and the burst pressure is 60 bar ( 900psi ). If there is two layers of fiber braided, the pressure will be higher. We have s set of machine to test pressure, usually testing burst pressure.





4 For sizes 6mm, 8mm, 10mm and 13mm, the standard length is 100m per roll. Sometimes, the length can be 50m, 20m etc, it depends on customers' specific requirement. We can also produce the hose with just several meters like 2m, 5m etc. Sometimes, these hoses in short length are fitted with connectors. We have been producing lpg gas hose assemblies in 2m and 5m length with brass female left-hand thread to the UK.





5. Our factory can produce lpg gas hoses with colors orange, black, red, blue etc. Orange color is the most popular color for gas hose in the markets. We can produce different colors according to customers' request.





6. The regular lpg gas hose assembly is with brass and iron fittings. We have been exporting large amount of gas hose assembly with brass left-hand female thread to the EU markets like the UK. And we produce hose assemblies with iron fitting for one of customers from Korea, feedbacks of quality are good.





 7. We have good package for lpg gas hose, here are two kinds of regular package for hoses, one is transparent OPP films, the other is polystripes. For black color hose, we use transparent OPP films to pack the hoses, for colored hose like red, orange, blue, yellow etc, they are firstly packed by transparent OPP films and then packed by polystripes. Sometimes, for hose assembly in pieces, they can be packed in cartons or polybags with header card. It all depends on clients' requirement for package.





8. BS EN 559, BS EN ISO 3821, BS 3212 are three kinds of hose standard for lpg gas hose. BS EN 599 is standard for rubber hose used for welding, cutting and allied processes. BS EN ISO 3821 is standard for rubber hoses used for welding, cutting, etc. BS3212 is standard for flexible rubber tubing used in LPG vapour phase.





9. We can supply some products which is related with lpg gas hose, these products can be used with lpg gas hose together like hose couplings, clamps ( iron or stainless steel) , gas valves etc. We have stable suppliers of these products. Since their good quality, we have been cooperating with each other for over 8 years.





Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage 0





Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage 1





Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage 2

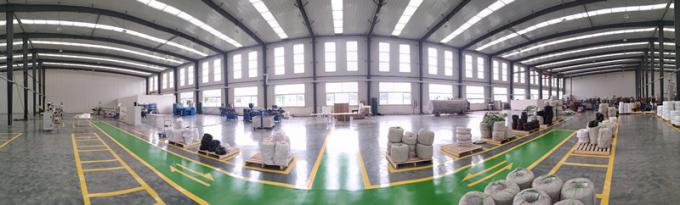

Factory Photos:



Orange Color ID 6mm NBR Lpg Gas Hose For Household and Industrial Usage 3



If you have any inquiry, please feel free to contact us!
