Place of Origin:
CHINA-Mainland
Brand Name:
PASSIONCO HOSE
Certification:
RoHS
Model Number:
PB-25
Contact Us

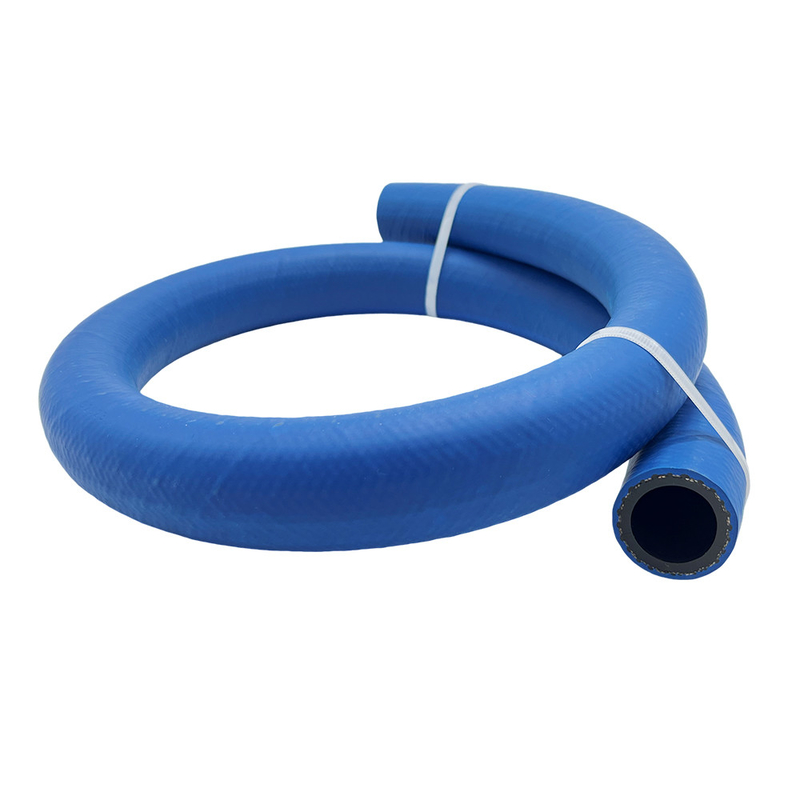

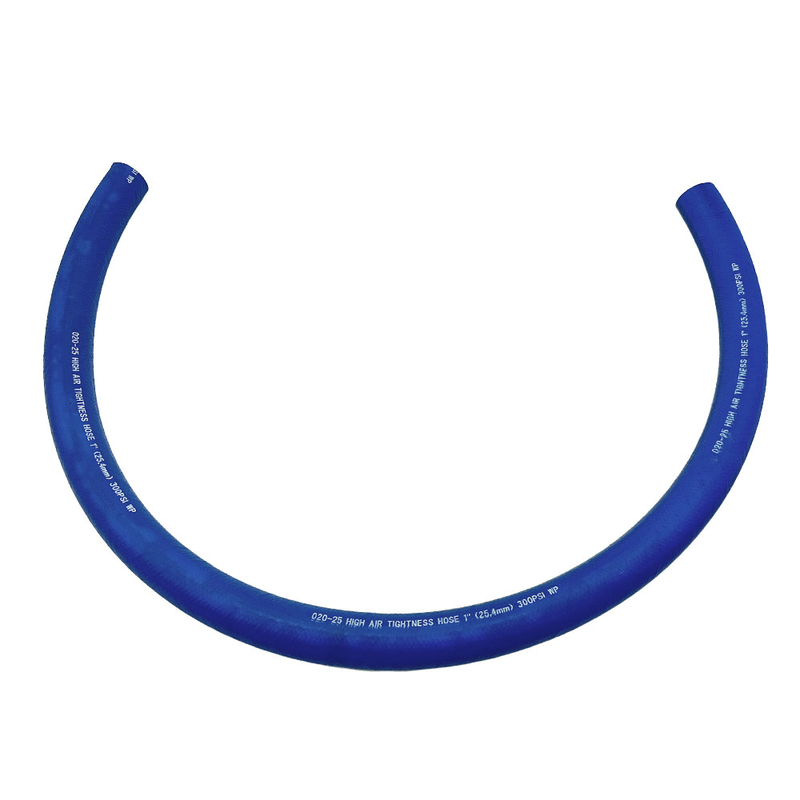

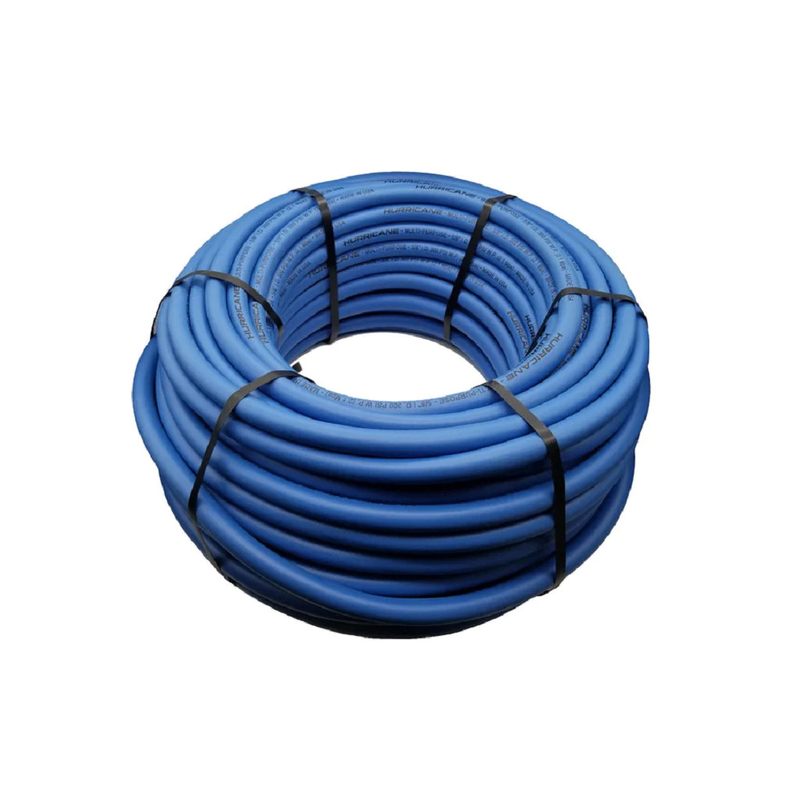

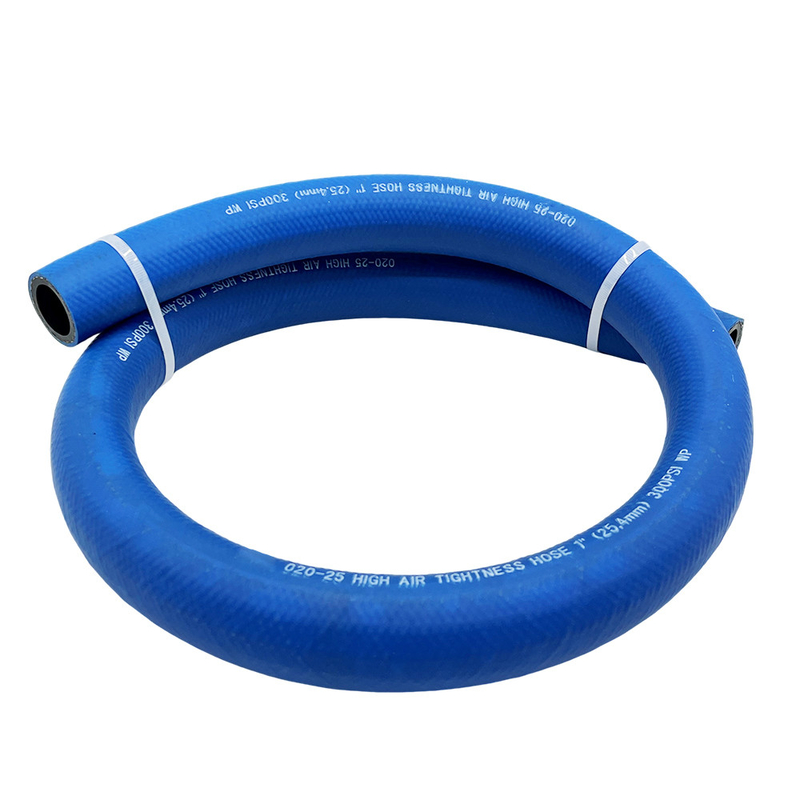

Blue Smooth Cover DN25 Butyl Hose With Excellent Oxygen Permeability
| Part No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius | Weight | Coil Length | |||||
| inch | mm | inch | mm | bar | psi | bar | psi | mm | inch | kg/m | m/piece | |
| PB-05 | 3/16'' | 4.8 | 0.39 | 9.8 | 20 | 300 | 85 | 1200 | 38 | 1.50 | 0.10 | 100 |
| PB-06 | 1/4'' | 6.4 | 0.51 | 13.0 | 20 | 300 | 85 | 1200 | 50 | 1.97 | 0.15 | 100 |
| PB-08 | 5/16'' | 7.9 | 0.59 | 15.0 | 20 | 300 | 85 | 1200 | 60 | 2.36 | 0.18 | 100 |
| PB-10 | 3/8'' | 9.5 | 0.67 | 17.0 | 20 | 300 | 85 | 1200 | 70 | 2.76 | 0.23 | 100 |
| PB-13 | 1/2'' | 12.7 | 0.83 | 21.0 | 20 | 300 | 85 | 1200 | 100 | 3.94 | 0.32 | 100 |
| PB-16 | 5/8'' | 15.9 | 0.94 | 24.0 | 20 | 300 | 85 | 1200 | 120 | 4.72 | 0.40 | 60 |
| PB-19 | 3/4'' | 19 | 1.10 | 28.0 | 20 | 300 | 85 | 1200 | 150 | 5.91 | 0.48 | 60 |
| PB-25 | 1'' | 25.4 | 1.42 | 36.0 | 20 | 300 | 85 | 1200 | 200 | 7.87 | 0.74 | 60 |
| PB-32 | 1-1/4'' | 31.8 | 1.72 | 43.6 | 20 | 300 | 85 | 1200 | 200 | 7.87 | 1.00 | 40 |
| PB-38 | 1-1/2'' | 38.1 | 2.05 | 52.0 | 20 | 300 | 85 | 1200 | 230 | 9.06 | 1.38 | 40 |
| PB-50 | 2'' | 50.8 | 2.60 | 66.0 | 20 | 300 | 85 | 1200 | 300 | 11.81 | 2.00 | 40 |
| PB-63 | 2-1/2'' | 63.5 | 3.13 | 79.5 | 20 | 300 | 85 | 1200 | 400 | 15.75 | 2.70 | 40 |

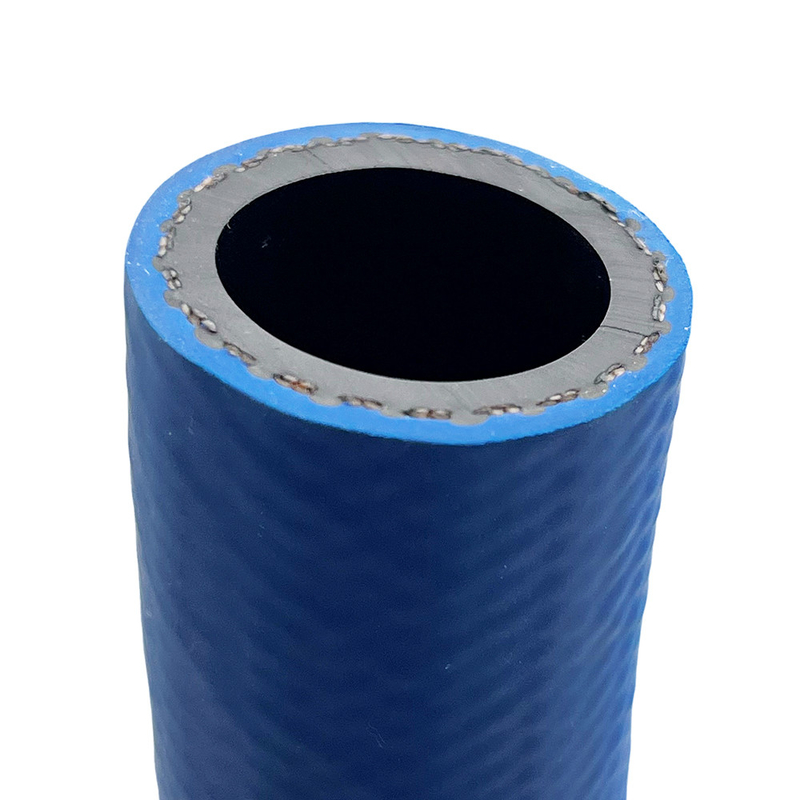

1, Inner tube: Black, smooth high airtight BIIR butyl synthetic rubber
2, Reinforcement: High tensile polyester fiber thread
3, Cover: Smooth / Colth high airtight BIIR butyl synthetic rubber
4, Temperature: -40℃ to +100℃
5, Color: Blue, Red, Black (customizable)
6, Applications: Used for transporting air, ethylene glycol, fluorinated liquid, helium, high air tightness and anti-penetration requirements
7, Standards: HG/T2184 / DIN4726
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China
with 13 years manufacturing experience, 50 sets of braiders and 3 production lines.
Free sample can be offered, and we can customize as your request.
Cooperative Brand:
WELDMAN, Max Weld, Goldenflex, SAEFLEX. REDI-WELD
Company Slogan:
PASSION FOR HOSE! PASSION FOR YOU!
