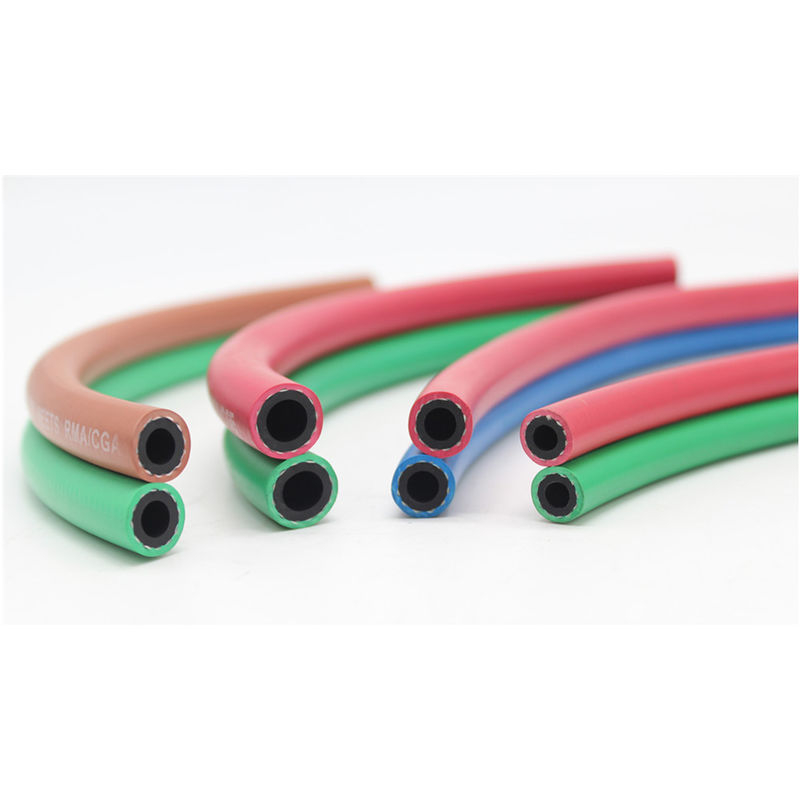

Red Blue Rubber High Intensity Oxygen Acetylene Welding Hose Aging Resistance

Red Blue Rubber High Intensity Oxygen Acetylene Welding Hose Aging Resistance

  • High Light

    High Intensity Oxygen Acetylene Welding Hose

    ,

    Grade R Oxygen Acetylene Welding Hose

    ,

    Aging Resistance Twin Welding Hose

  • Inside Diameter
    8mm +/-0.3
  • Outside Diameter
    15mm +/-0.5
  • Max.Working Pressure
    20bar (300psi)
  • Min.Burst Pressure
    60bar (900 Psi)
  • Reinforcement Layer
    One Layer Of High Tensile Polyester Fiber Braided
  • Color
    Red & Blue
  • Temperature Range
    -25°C To 90°C
  • Quality Level
    Grade R
  • Property
    Excellent Aging Resistance
  • Standard
    BS EN559, RMA/CGA IP-7
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    CE
  • Model Number
    PTW-08
  • Minimum Order Quantity
    1000 meters
  • Price
    Negotiated
  • Packaging Details
    Wrapped by transparent OPP film, pallet, color packing can be customized
  • Delivery Time
    15 days after received the advance payment
  • Payment Terms
    T/T, LC, Paypal, MoneyGram or Western Union
  • Supply Ability
    200,000m per month

Red Blue Rubber High Intensity Oxygen Acetylene Welding Hose Aging Resistance

Red & Blue 5/16'' Rubber High-intensity Oxygen Acetylene Welding Hose

Specifications:


Item CodeInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeight
inchmmmmbarpsibarpsimcbm/rollkg/m
PTW-053/16"&3/16"4.811.520300609001000.040.28
PTW-061/4"&1/4"6.31320300609001000.060.34
PTW-06081/4"&5/16"6.3+8.013+1520300609001000.0620.39
PTW-085/16''&5/16''7.9+7.915+1520300609001000.070.42
PTW-08105/16"&3/8"8+1015+1720300609001000.0750.48
PTW-103/8"&3/8"9.51720300609001000.080.52



Description:

1, Construction: Tube: SBR Synthetic Rubber
                           Reinforcement: High tensile polyester fiber braided.
                           Cover: EPDM Synthetic Rubber

2, Appearance:  Smooth
                          blue line for oxygen rubber hose
                          Red line for  fuel gas hose, e.g. acetylene

3, Applicable temperature: -25°C to +90°C

4, Standard length: 50m, 100m roll

5, Bend radius: 10 times of proper diameter dimension

6, Package:     Common packed by OPP transparent film.

The pallet and woven bag packing are available, the color sticker can be offer,

 but shall be charged additionally.

7, Trademark: PASSION, OEM is available

8, Property: Anti-ozone aging, Heat-proof aging, Corrosion resistance and excellent flexibility.

9, Quality Standard: EN559 / CGA/RMA IP-7

10, Certificates: CE, SGS, ISO

11, Main market: Middle East, Europe and America

12: Joint Connection:
                            Brass teeth of metric system (M16x1.5), applied to Chinese Mainland;

Brass teeth of British system (G3/8-19N), Britain and Hong Kong etc

Brass teeth of American system (G9/16 18N), America, Middle East and South America

 etc.

Australian system (5/8-18N), Australia etc


Red Blue Rubber High Intensity Oxygen Acetylene Welding Hose Aging Resistance 0
Red Blue Rubber High Intensity Oxygen Acetylene Welding Hose Aging Resistance 1

Red Blue Rubber High Intensity Oxygen Acetylene Welding Hose Aging Resistance 2

Applications:

Green / Blue line- a flexible hose for transporting oxygen for welding and cutting, for arc
welding using shielding gas and related processes.


Red line- a flexible hose for transporting acetylene for
welding and cutting, for arc welding using shielding gas and related processes. Also suitable for
hydrogen, coal gas and carbon



Competitive Advantage:

Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China
. 13 years manufacturing experience, 50 sets of braiders and 3 production lines.

Free sample can be offered, and we can customize as your request.
