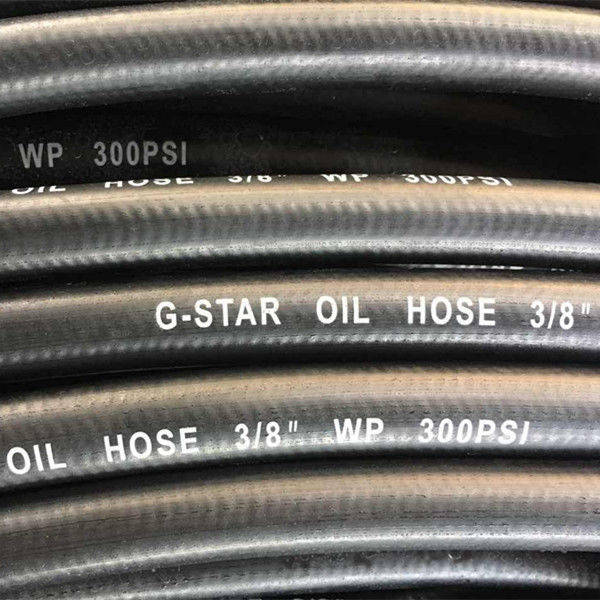

Black Flexible Fuel Resistant Hose Polyester Fiber Braid Diesel Transfer 300psi

Black Flexible Fuel Resistant Hose Polyester Fiber Braid Diesel Transfer 300psi

  • High Light

    braided fuel hose

    ,

    fuel injection hose

  • Material
    Nitrile
  • Application
    Mainly Used For Circulating Petrol And Kerosene, Or The Oil Products With Contents Of Aromatic Substances Etc.
  • Color
    Black/red/blue/yellow
  • Package
    Well Packed In OPP Film And Braided Strap
  • Size
    1/4 Inch~1 Inch
  • Temperature Resistance
    -30c-to +100c
  • Working Pressure
    300psi
  • Bursting Pressure
    900psi
  • Length
    50m / Roll Or 100m/ Roll
  • Printings
    Accordingly To Client's Request
  • MOQ
    1000M Each Size
  • Sea Port
    Shanghai Port Or Ningbo Port
  • Product Name
    Black Flexible Polyester Fiber Braid Diesel Transfer Hose 300psi
  • Key Words
    Diesel Transfer Hose
  • Place of Origin
    CHINA
  • Brand Name
    PASSION
  • Certification
    ISO, CE
  • Model Number
    3/8"
  • Minimum Order Quantity
    1000m each size
  • Price
    USD 0.6 M
  • Packaging Details
    braided oil hoses are well packed by braided strap.
  • Delivery Time
    25 days on receipt of the deposit payment
  • Payment Terms
    L/C, T/T, D/P, Western Union, MoneyGram
  • Supply Ability
    300000M / month

Black Flexible Fuel Resistant Hose Polyester Fiber Braid Diesel Transfer 300psi



Black Flexible Polyester Fiber Braid Diesel Transfer Hose 300psi



Construction - Tube: NBR
Reinforcement: High tensile polyester fiber braided.
Cover: NBR
Temperature: -30ºC to +100ºC
Color: Black, Red, Blue etc.
Application: Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Standard length:
50m, 100m.
Specification:



Inner

Diameter

Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi m cbm/roll kg/m
3/16" 5 11.5 20 300 60 900 100 0.028 0.15
1/4" 6 13 20 300 60 900 100 0.031 0.17
5/16" 8 15 20 300 60 900 100 0.0353 0.216
3/8" 10 17 20 300 60 900 100 0.0442 0.24
1/2" 12.7 22 20 300 60 900 100 0.0756 0.428
5/8" 16 25 20 300 60 900 50 0.0329 0.40
3/4" 19 29 20 300 60 900 50 0.0572 0.60
1" 25 36 20 300 60 900 50 0.099 0.84
1-1/4" 32 43 10 150 30 450 50 0.170 1.20
1-1/2" 38 50 10 150 30 450 50 0.190 1.39
2" 51 65 10 150 30 450 50 0.410 1.80
