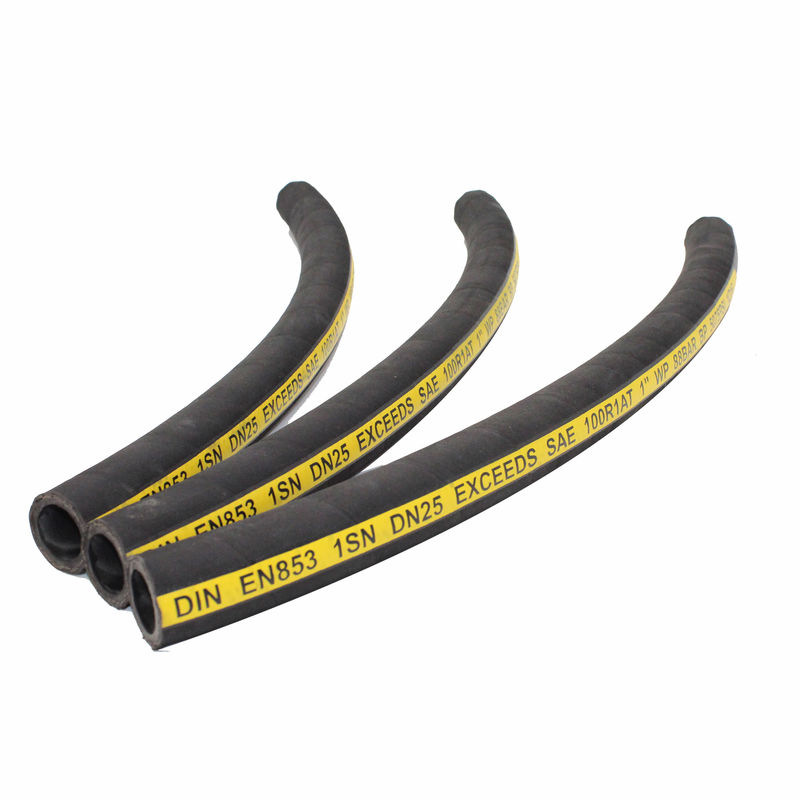

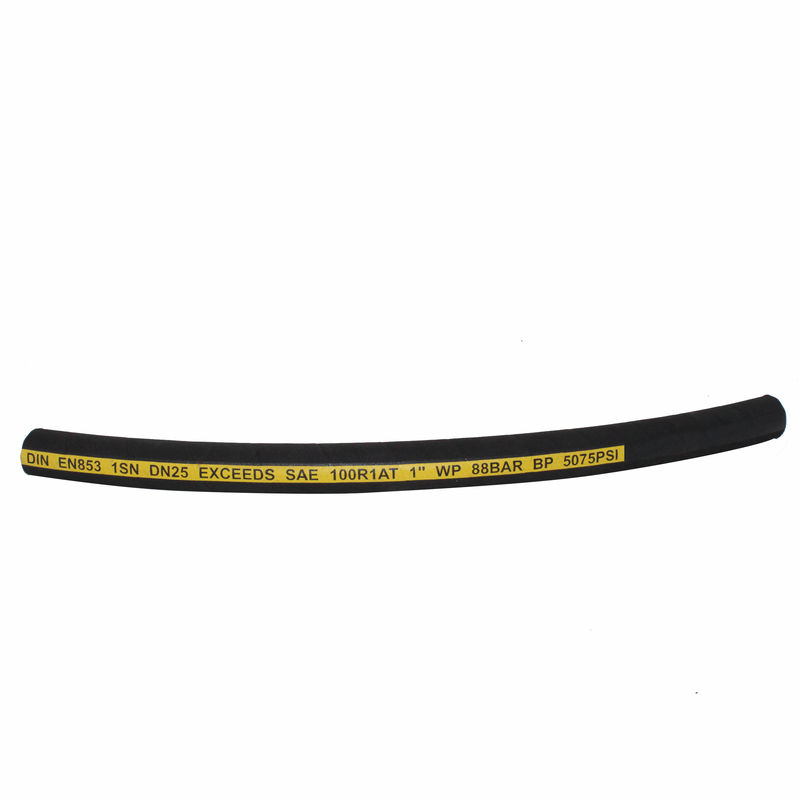

SAE 100R1AT/1SN Dn25 1" High Pressure Hydraulic Hose With High Flexibility

Basic Information
Place of Origin: Zhejiang, China
Brand Name: PASSION
Certification: CE, ISO 9001, MSHA
Model Number: SAE 100R1
Minimum Order Quantity: 500 meters
Price: Negotiable
Packaging Details: Colorful poly stripes or as your request.
Delivery Time: 28 days
Payment Terms: T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
Supply Ability: 400,000 meters per month
Application: Hydraulic Fluids Inner Tube: NBR
Outer Cover: NBR Reinforcement: 1 Layer Of Tensile Steel Wire
Size: 3/4" DN: 19
Product Name: High Pressure Hydraulic Hose Type: SAE 100R1AT
High Light:

Hydraulic Rubber Hose

,

High Pressure Hydraulic Pipe

SAE 100R1AT/1SN Dn25 1" High Pressure Hydraulic Hose With High Flexibility 0



Paishun Advantages

* Various colors.
* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light



Product Detail




Name SAE 100R1AT
Material NBR
Certification CE approved.
Size 3/16"~2"
Color Black
Temperature range -40ºC~+100ºC
Reinforcement One braid of high-tensile steel wire.
Capability/Feature Oil resistant, abrasion resistant, anti-aging.
Length 100m or 50m per roll.
Tolerance 0.05mm
Application Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
Package Well packed by poly stripes or as your requirement.
Delivery According to your quantity, generally speaking, 35 days for a 20' container.



Product Specification





Part In Hose Size ID DIN Dash Size Hose OD Max. Working Pressure Min. Burst Pressure
in mm mpa mpa
GR1SN-03 3/16 4.8 Din Dash size 0.47 11.9 25 100.1
GR1SN-04 1/4 6.4 Din Dash size 0.534 13.6 22.5 90.2
GR1SN-05 5/16 7.9 Din Dash size 0.595 15.1 21.5 86
GR1SN-06 3/8 9.5 Din Dash size 0.689 17.5 18 72.1
GR1SN-08 1/2 12.7 Din Dash size 0.813 20.7 16 64
GR1SN-10 5/8 15.9 Din Dash size 0.938 23.8 13 52.1
GR1SN-12 3/4 19 Din Dash size 1.096 27.8 10.5 42.2
GR1SN-16 1 25.4 Din Dash size 1.408 35.8 8.8 35.3
GR1SN-20 11/4 31.8 Din Dash size 1.696 43.1 6.3 25.4
GR1SN-24 11/2 38.1 Din Dash size 1.971 50.1 5 20.1
GR1SN-32 2 50.8 Din Dash size 2.503 63.6 4 16













SAE 100R1AT/1SN Dn25 1" High Pressure Hydraulic Hose With High Flexibility 1


Photo of Factory

With 14 brand new automatic inner hose knitting machines from Italy. The knitting speed is faster,

production capacity has been greatly improved, quality is better and more stable.



SAE 100R1AT/1SN Dn25 1" High Pressure Hydraulic Hose With High Flexibility 2



More of Paishun



Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square

meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion

process, microwave vulcanization process, and high-speed braiding process, etc.



We produce mainly industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose,

and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of

pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.



Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put

much investment in the research team, and in advanced testing laboratory equipment. We now use a

series of tensile testing machines, vulcanization testing devices, aging testing chest, pressure testing

machines to ensure effective quality control. All these testing machines and related procedures may

form a complete quality control system, beginning from the selection of the raw materials until the end

step. Thus, we wish our products can satisfy all of our customers, and help them to gain more and

more market share.


RELATIONSHIPS



Long term business relationships are of upmost importance to us at Paishun. With our roots planted

as a manufacturer, we take the time to learn about your business and your individual needs so we

can provide better service to you. We pride ourselves on maintaining long term business relationships

and understand that it takes time to build trust in new ones.


QUALITY


Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed

with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized

environment. This allows us to guarantee your hoses are produced promptly and efficiently.



SHORT LEAD TIMES


We have continually made improvements to our manufacturing process over 12+ years. We've implemented

lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth

and streamlined our supply chain process in order to respond quickly to market change. All with the goal to

decrease lead time and improve quality.


INVENTORY MANAGEMENT


A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand

how important production scheduling and inventory flow are to your business. We will work with you on

an individual basis and will process blanket orders to assist with your inventory level. All of our materials

are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality

standard.
