WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction

Basic Information
Place of Origin: Zhejiang, China
Brand Name: PASSION
Certification: CE, ISO 9001:2015, Rohs
Model Number: SAE 100R1 / EN853 1SN
Minimum Order Quantity: 400 meters
Price: Negotiable
Packaging Details: Poly stripes, pallets, reels or as your request.
Delivery Time: 26 working days
Payment Terms: T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
Supply Ability: 500,000 meters per month
Application: Construction Inner And Outer Tube: NBR
ID: 19 Mm Certification: ISO 9001:2015, CE, Rohs, MSHA
Temperature Range: -40℃ ~ +100℃ Color: Black, Gray Or As Your Reuqest
Usage: For Construction Heavy Machinery Printing: Our Logo Or As Requested
OD: 28 Mm WP: 105 BAR
High Light:

Hydraulic Rubber Hose

,

High Pressure Hydraulic Pipe



WP 105BAR ID 3/4" R1/1SN High-Pressure Hydraulic Hose for Construction


Paishun Advantage

* Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
* Free hose sample.
* We can print words and your logo on
the hose as your request.
* We test the products before shipping out. We have a complete line of test machines.
* We can also get you fittings or assembly.
* We ship the goods by express, by air, by sea or according to your requirement.


SAE 100R1 / EN853 1SN Hydraulic Hose



Name SAE 100R1AT
Material NBR
Certification CE approved.
Size 3/16"~2"
Color Black
Temperature range -40ºC~+100ºC
Reinforcement One braid of high-tensile steel wire.
Capability/Feature Oil resistant, abrasion resistant, anti-aging.
Length 100m or 50m per roll.
Tolerance 0.05mm
Application Medium pressure hydraulic applications including mobile, machine tool and agricultural applications, using petroleum or water-based hydraulic fluids.
Package Well packed by poly stripes or as your requirement.
Delivery According to your quantity, generally speaking, 35 days for a 20' container.



Specification





Part In Hose Size ID DIN Dash Size Hose OD Max. Working Pressure Min. Burst Pressure
in mm mpa mpa
GR1SN-03 3/16 4.8 Din Dash size 0.47 11.9 25 100.1
GR1SN-04 1/4 6.4 Din Dash size 0.534 13.6 22.5 90.2
GR1SN-05 5/16 7.9 Din Dash size 0.595 15.1 21.5 86
GR1SN-06 3/8 9.5 Din Dash size 0.689 17.5 18 72.1
GR1SN-08 1/2 12.7 Din Dash size 0.813 20.7 16 64
GR1SN-10 5/8 15.9 Din Dash size 0.938 23.8 13 52.1
GR1SN-12 3/4 19 Din Dash size 1.096 27.8 10.5 42.2
GR1SN-16 1 25.4 Din Dash size 1.408 35.8 8.8 35.3
GR1SN-20 11/4 31.8 Din Dash size 1.696 43.1 6.3 25.4
GR1SN-24 11/2 38.1 Din Dash size 1.971 50.1 5 20.1
GR1SN-32 2 50.8 Din Dash size 2.503 63.6 4 16



Specification of Hydraulic Hose SAE 100R1 EN853 1SN.pdf

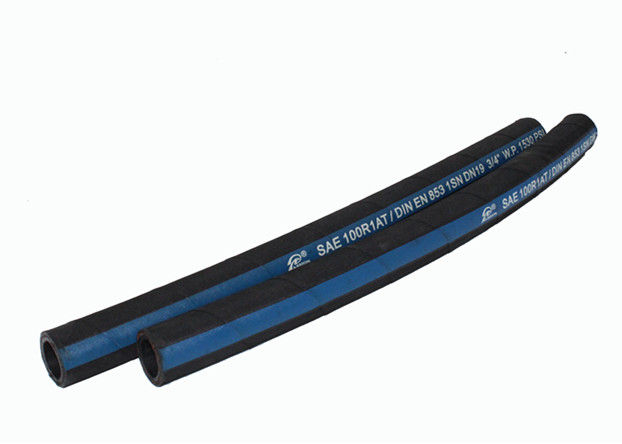

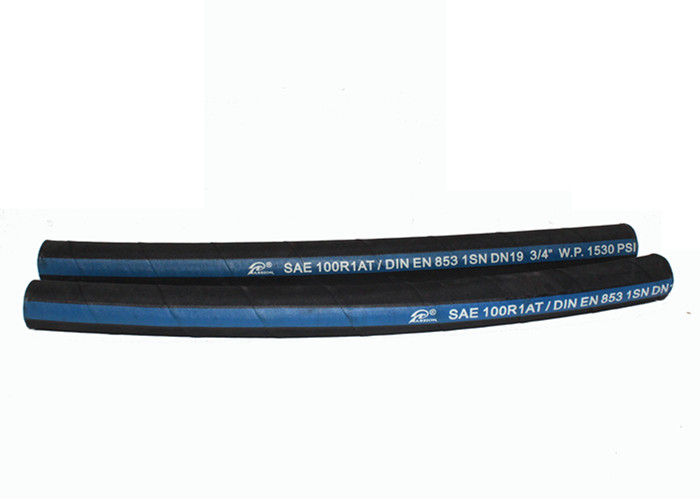

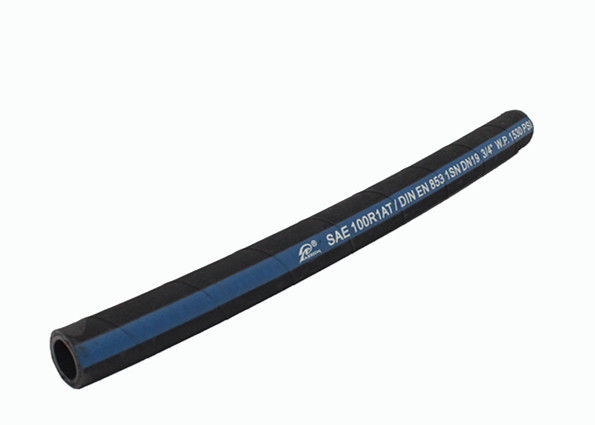

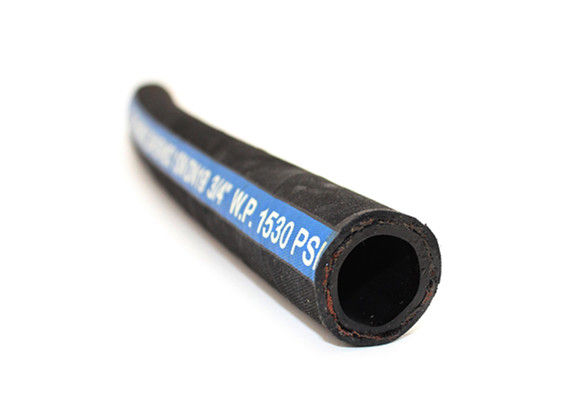

Photo of SAE R1/1SN Hose

WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction 0


Packing and Shipping
Goods are well packed by colorful poly stripes or transparent OPP films.

Carton boxes, reels, and pallets are also available.
Can be shipped by air, by sea, by truck and by train.


WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction 1


Application

For construction heavy machinery equipment such as excavator, roller, forklift, etc.


WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction 2


Impulse Testing Machine



1 wire and 2 wire braided hoses pass the impulse testing of 200,000 times; 4 wire spiral hoses pass the impulse testing of 400,000 times.

If you’ll need. We can supply the testing report for you.



WP 105BAR ID 3/4" R1/1SN High Pressure Hydraulic Hose For Construction 3




Please feel free to contact us for any question or request!


PASSION FOR HOSE, PASSION FOR YOU!!!
