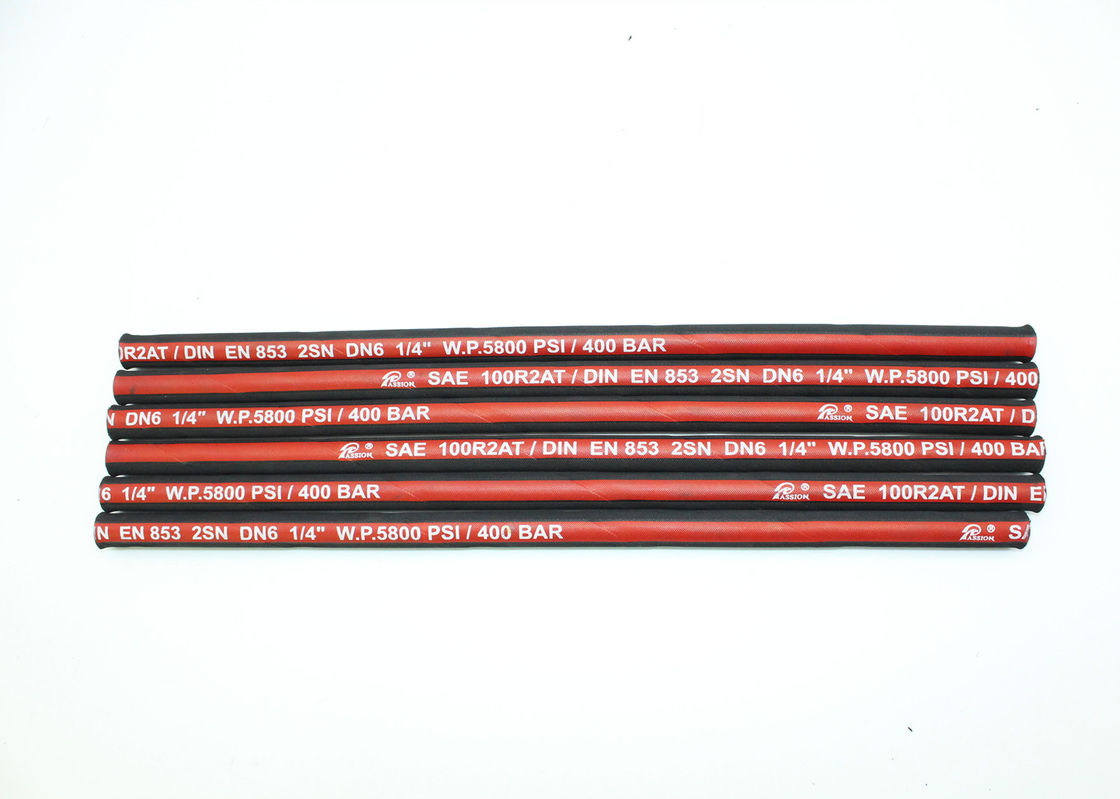

DN6 1/4" High Pressure Hose , High Pressure Water Hose SAE J517 100R2 AT WP 400 BAR

Basic Information
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: SAE J517 100 R2
Minimum Order Quantity: 500m
Price: Negotiated
Packaging Details: Packed in weaving strip, it also can be packed as per your requirement,
Delivery Time: Within 30 days after we receive advance payment
Payment Terms: T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability: 30,000m per month

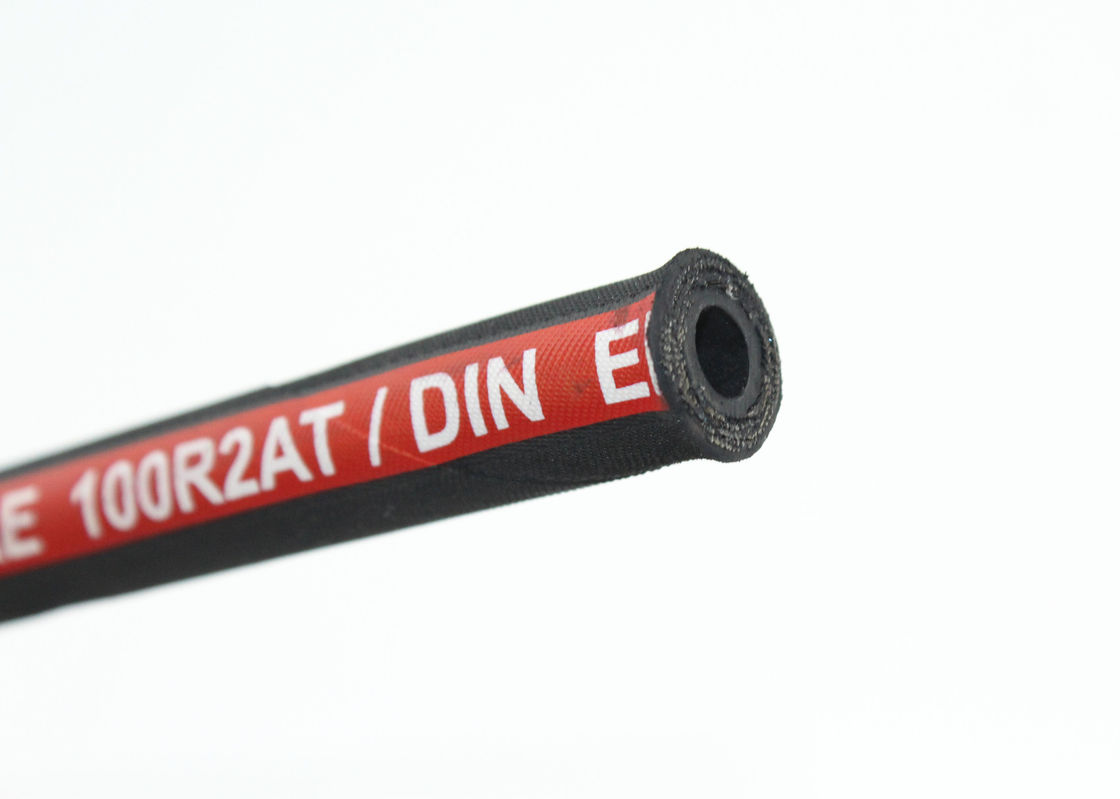

DN6 1/4" High Pressure Hydraulic Hose SAE J517 100R2 AT WP. 400 BAR



Description:



Standard: SAE J517 100R2 AT



Construction

Tube: NBR synthetic rubber.
Reinforcement: Two high-tensile steel wires braided.
Cover: NBR oil and weather resistant synthetic rubber.



Temperature: -40℃ - +100℃



Color: Black, Grey, Blue, etc.



Standard length: 100m/roll



Fitting: 00210 or 03310 ferrule and 1 serious crimping fitting.

             Parker one-piece fitting





Specifications:



                                                 DN6 1/4" High Pressure Hose , High Pressure Water Hose SAE J517 100R2 AT WP 400 BAR

                               Double Wire Braided Reinforced Hydraulic Rubber Hose



Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi m cbm/roll kg/m
R2-05 3/16 4.8 12.3 414 6000 1655 24000 100   0.32
R2-06 1/4 6.4 15.5 400 5800 1600 23200 100 0.0514 0.37
R2-08 5/16 8.0 16.5 350 5075 1400 20300 100 0.0612 0.412
R2-10 3/8 9.5 19.2 330 4785 1320 19140 100 0.0784 0.53
R2-13 1/2 12.7 21.8 275 3988 1100 15950 100 0.0833 0.64
R2-16 5/8 16.0 25.5 250 3630 1001 14520 50 0.074 0.77
R2-19 3/4 19.0 29.5 215 3120 860 12480 50 0.0833 0.96
R2-25 1 25.4 38.1 165 2400 662 9600 50 0.1445 1.35
R2-32 1 1/4 32.0 48.0 125 1820 502 7280 20 0.209 2.05
R2-38 1 1/2 38.0 55.0 90 1310 361 5240 20 0.2509 2.511
R2-51 2 50.8 68.6 80 1160 320 4640 20 0.3796

3.165






Application:

This high pressure hydraulic hose SAE J517 100 R2 AT 1/4"



DN6 1/4" High Pressure Hose , High Pressure Water Hose SAE J517 100R2 AT WP 400 BAR



















Competitive Advantage:



It is made according to SAE J517 / DIN EN 853 standard.



We have several ways of hydraulic hose packaging for our customers:

  1. Colorful poly stripes (normal packing)
  2. reel
  3. customized carton hose assembly
  4. customized PE bag for hose assembly

We supply OEM, ODM according to customer’s requirement.



The hydraulic hoses and fittings can be assembled in our factory.



The hydraulic hoses R1 and R2 can be made in the smooth surface.



We also supply hose protector for our customers.
